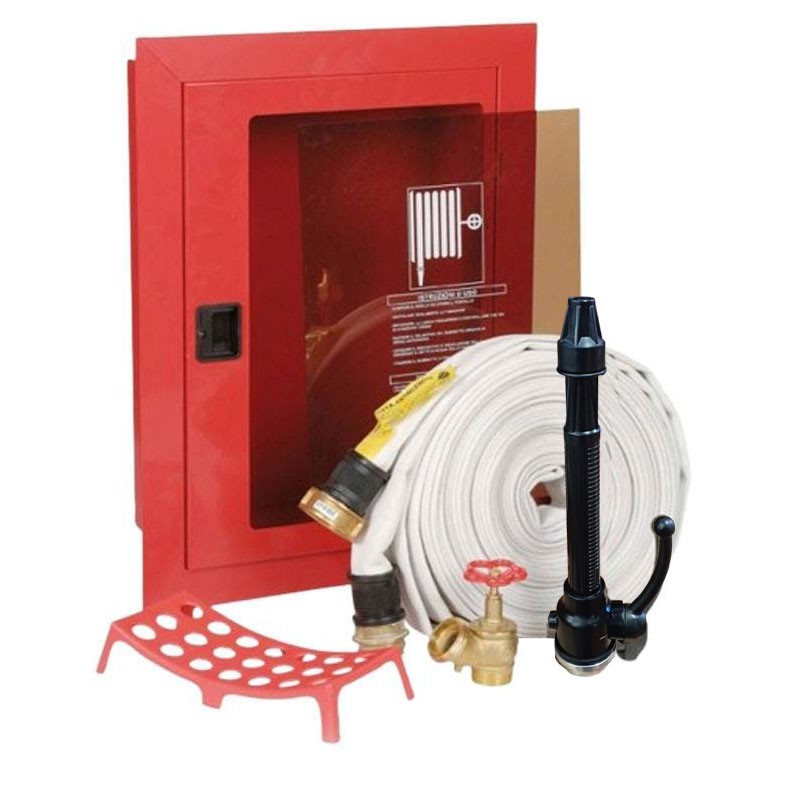

Ziggiotto Cuba Wall Hydrant with 20-Meter Hose D7F20B
914 D7F20B
Ziggiotto Cuba Series flush-mounted wall hydrant with open door and frangible plate, equipped with 20-meter DN 45 flexible hose, conforming to EN 671-2:2012 with CE marking and CSI approval for fire-fighting use, with the following features:
-
Box: Recessed in red painted sheet metal with adjustable frame
-
Hose: Flexible DN 45 certified EN 14540, length 20 meters
-
Hydrant tap: DN 45 PN 16 brass, thread ISO 7
-
Lance: UNI 45 with three effects models Black
-
Sheet: Frangible with standardized screen printing and hole for seal
-
System complies with standard: EN 671-2:2012, approval CSI 0497/CPR/276
€180.17
Items Available: 5
: 3
Frequently bought together
Cuba Series recessed hydrant: built-in practicality and safety
Ziggiotto's Cuba Series adjustable recessed wall hydrant is an efficient fire-fighting solution designed for concealed installation inside walls, ideal for public, commercial and industrial environments where aesthetics are combined with functionality.
Adjustable structure for precise installations
The flush-mounted box is made of RAL3000 red painted sheet metal and includes an adjustable Art. 39/T frame, which allows perfect wall integration. The open door is equipped with frangible plate with standardized screen printing and space for inserting the numbered seal, thus ensuring visibility and quick access in case of emergency.
Complete fire protection equipment
Inside the system we find a DN 45 PN 16 brass hydrant tap, a DN 45 20-meter flexible hose certified EN 14540 with UNI 804 fittings and tie-downs according to UNI 7422. The device is also equipped with rubber sleeves, red hose protector, and a three-effect UNI 45 lance, available in Black, Florida, Gold, Roto Ø12, and Arizona Ø13 models, to suit every operational need.
Guaranteed compliance and reliability
The entire system complies with EN 671-2:2012, with CE marking and CSI approval No. 0497/CPR/276, ensuring full adherence to European standards for fixed firefighting devices. The product comes with instruction manual and CE performance declaration, packed in cardboard for optimal protection.
Technical Specifications Wall Hydrant
| Model | Cuba series adjustable flush-mounted with open hatch |
| Box dimensions. | 400 mm (W) x 160 mm (D) x 600 mm (H) |
| Frame dimensions | 454 mm x 655 mm |
| Material | RAL3000 red painted sheet metal |
| Frame | Adjustable art. 39/T |
| Tubing | Flexible DN 45, length 20 meters, EN 14540 |
| Tap | DN 45 PN 16 brass, ISO 7 |
| Lance | UNI 45 with three effects Black |
| Accessories | Numbered seal, red hose guard, rubber sleeves |
| Certifications | CE, EN 671-2:2012, CSI 0497/CPR/276 |
| Installation | Flush-mounted |
There are no reviews
Data sheet
- Type: Fire sprinkler systems
- Model: Collection
