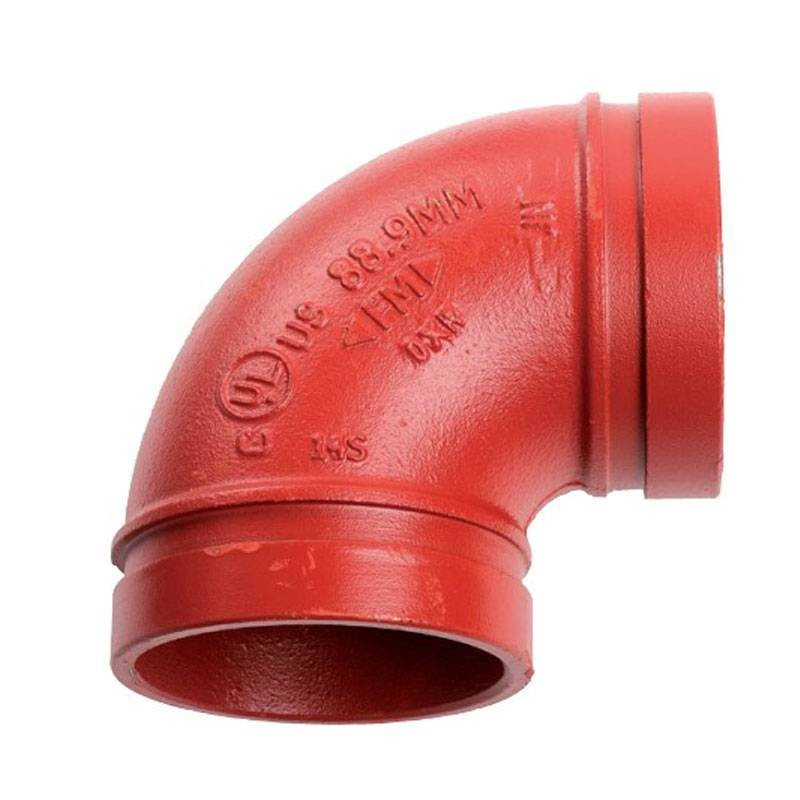

Ziggiotto 3 inch 80mm PN500 90 degree grooved bend B0090089
914 B0090089
Ziggiotto 90-degree grooved bend designed for hydraulic pressure systems up to 500 PSI. The ideal solution for quick, safe and reliable connection without threads or welding, with the following features:
-
Bend: 90 degrees for grooved piping
-
Nominal diameter: 3 inches (80 mm)
-
Outer diameter: 88.9 mm
-
Pressure rating: PN500
-
Compatible with: Water and glycol systems (max 15%)
-
Certifications: UL / FM
€8.88
Items Available: 28
: 26
Grooved bend hydraulic joint solution
The Ziggiotto 90-degree grooved bend is a technological and cost-effective alternative to traditional connection methods such as welding, flanging or threading. Thanks to the grooved system, installation is quick and safe, ensuring a solid and easily inspected connection.
Ease of installation and maintenance
The groove connection is simple to make and allows easy installation and disassembly, making maintenance operations extremely convenient. This is particularly advantageous in installations where modularity and expandability are key factors.
Applications and compatibility
Suitable for a wide range of applications in hydraulic distribution systems, it is not suitable for use with potable water. Instead, it is perfect for circuits that use water mixed with glycol (up to 15 percent), making it particularly useful in fire protection systems, heating, air conditioning or industrial cooling systems.

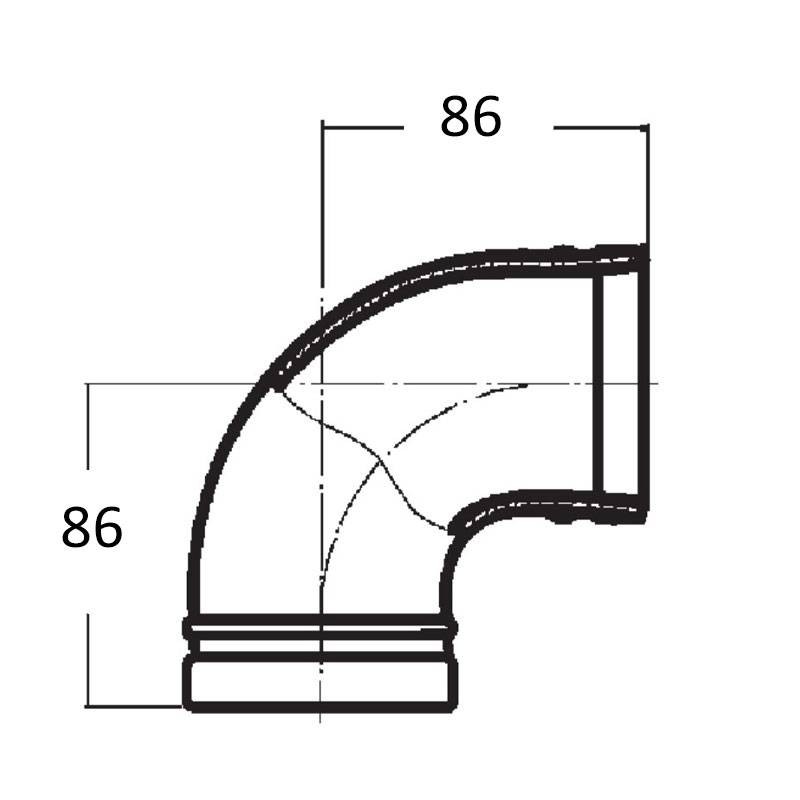

Technical Specifications Ziggiotto Grooved bend
| Type | 90-degree grooved elbow |
| Nominal diameter | 3 inches (80mm) |
| Pipe outer diameter | 88.9mm |
| Nominal pressure rating (PN) | 500 PSI |
| Fluid compatibility | Water and glycol (up to 15%) |
| Certifications | UL / FM |
| Grooving material | Steel - suitable for rolling or turning |
| Use | Plumbing systems, fire protection, HVAC (excluding potable water) |
There are no reviews
Data sheet
- Type: Bends
- Model: 90 Degrees
- Connections: 3 inches
