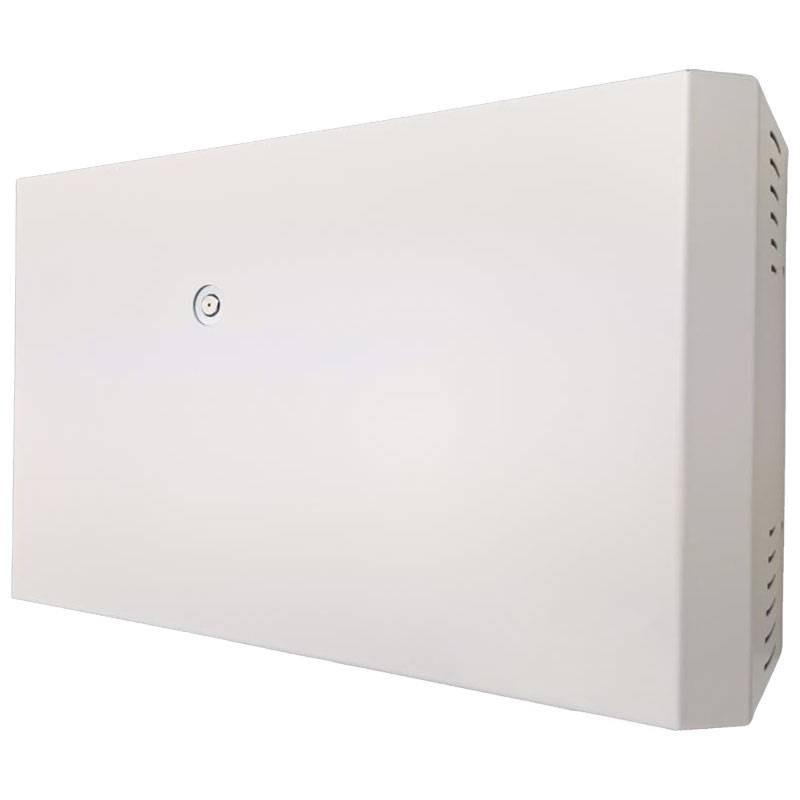

Hiltron fog system for environments up to 50 sqm in 60 seconds NEB50EVO
C1A NEB50EVO
Hiltron fog system suitable for rooms up to 50 sqm, Anti-theft fog delivery time in 60 seconds.
€1,346.88
Items Available: 2
: 1
Features:
- Saturated volume with fog delivery in 15 50 sqm h.3 | 415 - 800 m3 in expansion
- Anti-theft fog delivery time Adjustable from 1 - 60 sec.
- Forced pause time between shots Adjustable 0 / 5 min.
- Total dispensing time possible 5 dispenses of 60 (when tank is full)
- First warm-up time 15 - 25 min.
- Tank capacity 0.5 Lt. (Refillable)
- Reaction time 5 Ms
- Burner power supply 220 Volts
- Electronic power supply 13.8Volt
- Rated power input at startup 600 Watts only for the first 15-25 min
- Power absorbed during stand-by 12V 5mA
- Power absorbed during firing 12V 4Watts
- Average hourly power consumption from Armata only 40w/h
- Burner autonomy in power failure within 1 hour at least one firing of 60 is possible
- Fault signaling system Yes (visual) + 5 wired outputs
- Input No./N.c. No.1 for heating activation No.1 for firing activation
- Output No./N.c. No. 5 = Battery - Fault -Liv - Liquid- Heating- Arm on/off on/off
- Nozzles available for fog jet orientation 2 models: 1x45° swivel as standard - 1x0° optional
- Installation mode Wall
- Weight 10 kg with full tank
- Dimensions L.492×H.290×Sp.150 mm
- Color White Ral9003
There are no reviews
Data sheet
- Type: Fog systems
- Installation: Wall-mounted
