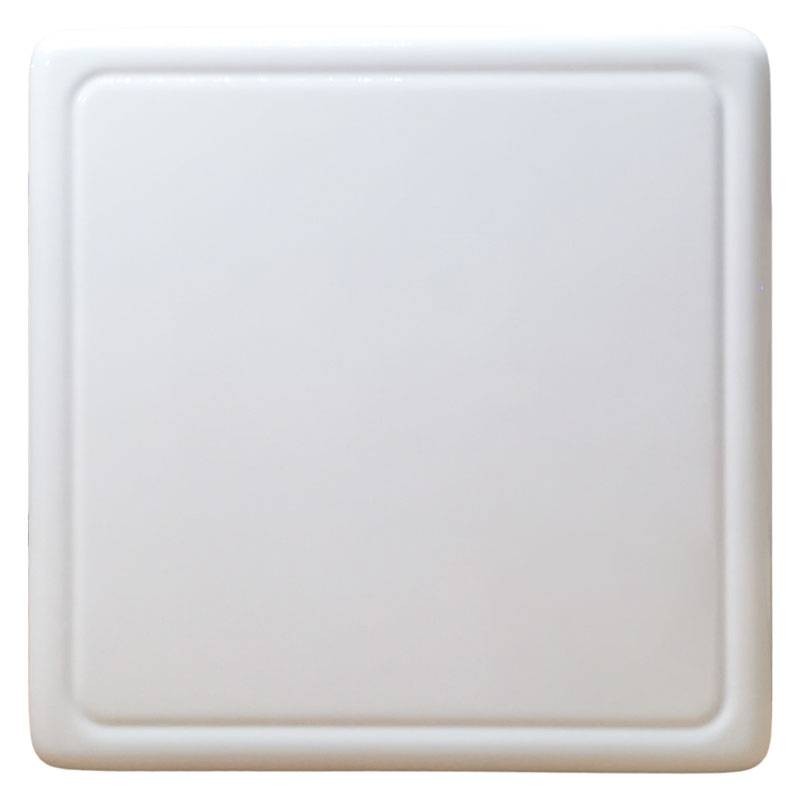

Hiltron fog system for environments up to 15 sqm in 15 seconds NEB15EVO
C1A NEB15EVO
Hiltron fog system suitable for rooms up to 15 sqm, Anti-theft fog delivery time in 15 seconds.
€702.72
Items Available: 4
: 2
Features:
- Saturated volume with fog delivery in 15 15 sq m/in expansion 100 m3
- Warm-up time between a firing of 15 and the next Max2 min
- Liquid quality used during firing 25 cc
- Time of possible dispensing 10 (150 total)
- Dual mode option sanitizer + anti-theft no
- First warm-up time 8 min
- Reaction time 5 Ms
- Burner power supply 220 volts
- Electronic power supply 12 volts from sterna source 350 mA
- Rated power input at startup 500 watts for the first 8 min
- Power absorbed during standby 12V 5 mA
- Power consumption during firing 500 watts
- Power consumption during operation 11 WH - 0.85 Ah
- Burner autonomy in power failure within 60 is possible to deliver
- Visual SI fault warning system + 5 wired autput
- Predisposition Housing radio modules AJAX - VESTA -U.PROX - AXPRO
- Input No./N.c No.1 for heating activation No.1 for firing activation
- Output No./N.c No. 5 = Battery - Fault -Liv - Liquid- Heating- Arm on/off on/off
- Nozzles available for fog jet orientation 1x90° as standard (Can be rotated adjusted 45° downward)
- Installation mode: Wall
- Weight 2.2 kg
- Dimensions 209 x 209 x 87 mm
- Color White Ral9003
There are no reviews
Data sheet
- Type: Fog systems
- Installation: Wall-mounted
