Hiltron XMR hybrid radio burglar alarm kit with control panel KXMR4200
C1A KXMR4200
8056450414692
Hiltron XMR hybrid burglar alarm kit with XMR4200T control panel: advanced wireless and wired protection, multiple management, GSM/LAN and touch console.

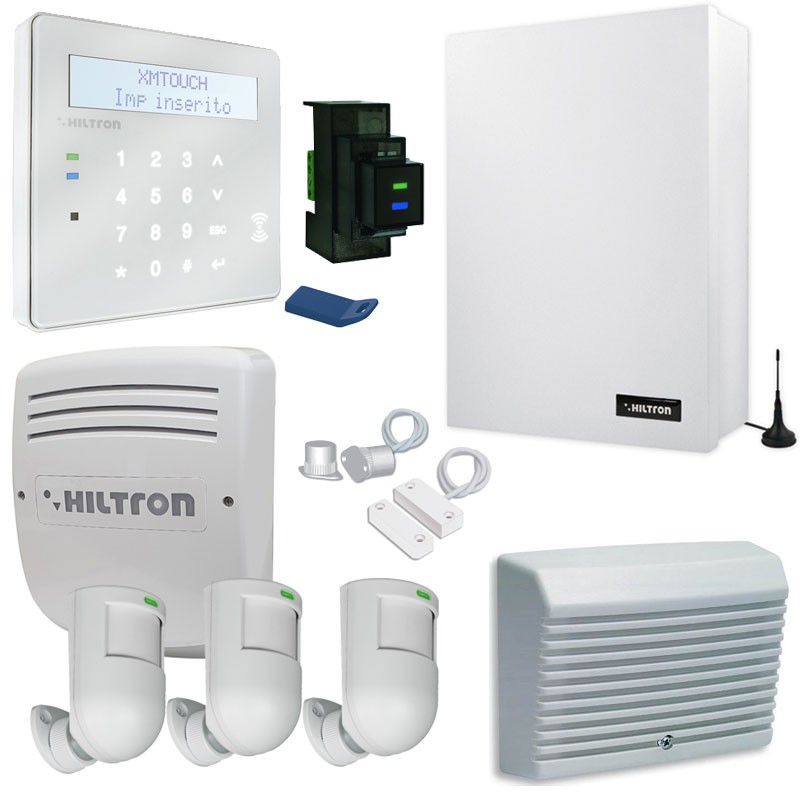

The kit consists of:
-
1x Control Unit XMR4200T - 4 wired zones, 200 radio, 4 systems, GSM/LAN
-
1x Console XMTOUCHB - Color touch screen, white color
-
1x External siren XM350 - Self-powered, powerful and durable
-
1x Internal siren SP31 - Piezo electronics
-
1x XM200K proximity reader - Compatible with KEYx keys
-
3x XM12DG detectors - Dual technology (IR + MW), high accuracy
-
1x Magnetic contact XM56 - Recessed
-
1x Magnetic contact XM58 - External
€951.58
Items Available: 1
Frequently bought together
Hiltron XMR hybrid burglar alarm kit XMR4200T for professional installations
The Hiltron XMR Kit with XMR4200T control unit is a professional hybrid (radio + wired) burglar alarm system designed to offer maximum flexibility in residential, commercial or industrial installations. It manages up to 4 independent installations, 4 expandable wired zones and 200 devices via radio, integrating GSM and LAN connectivity for remote monitoring and real-time communication with users and control panels.
Powerful and modular central unit with advanced interface
The XMR4200T central unit is the heart of the system and allows complex and customizable configurations. It can be controlled via the elegant and intuitive XMTOUCHB touch console with color interface and quick commands. User interaction is simplified by a modern design and fast, guided programming.
Indoor and outdoor security with sirens and sensors
The kit includes two sirens: the XM350 self-powered outdoor siren, robust and powerful, and the SP31, an indoor electronic piezo siren. Complementing the protection are 3 XM12DG dual-technology detectors, ideal for detecting intrusions while reducing false alarms, and two magnetic contacts, one flush-mounted (XM56) and one outdoor (XM58), to protect fixtures, doors or windows.
Simplified access and remote management
The XM200K proximity reader allows activation/deactivation of the system with KEYx keys, convenient and secure for all users. The system, thanks to the GSM/LAN connection, can be remotely controlled via app or software, ensuring complete management even off-site, immediate notifications and detailed reports.
Strengths of the Hiltron hybrid kit
- XMR4200T hybrid central unit: 4 wired zones + 200 radio devices
- Built-in GSM and LAN connectivity
- XMTOUCHB color touch console, white
- Self-powered outdoor + piezo indoor siren
- 3 XM series dual technology volumetric sensors
- XM200K proximity reader for KEYx keys
- Flush-mounted and external magnetic contacts

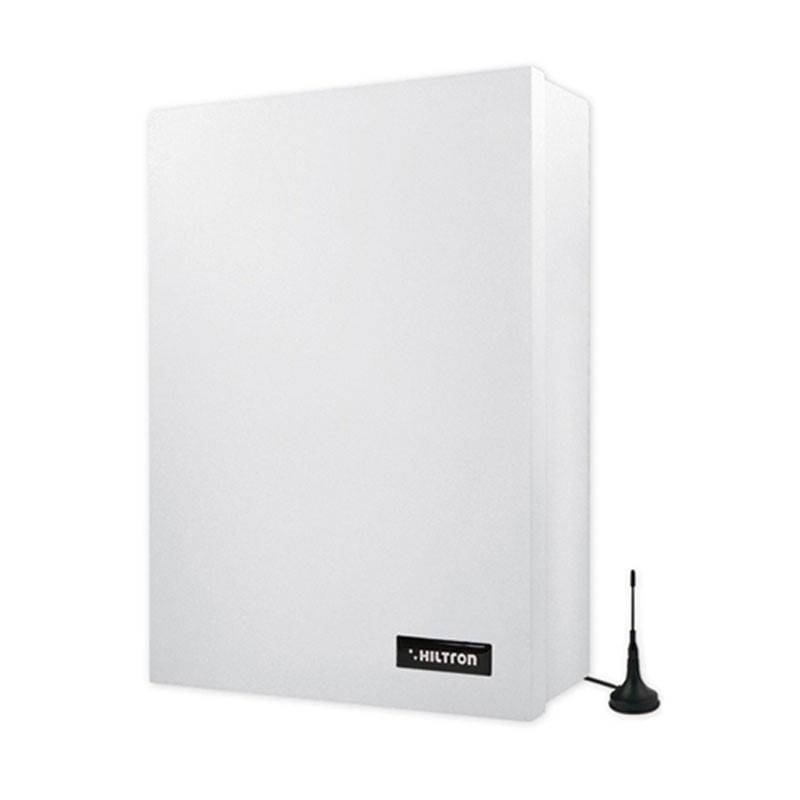

Technical specifications of the XMR4200T control panel
XM series control unit 4 wired zones 200 MPX points/via radio for 4 systems, built-in GSM/LAN and console.
| Feature | Detail |
|---|---|
| Touch console included | XMTOUCHB |
| Display | Backlit alphanumeric LCD (2×16 characters) |
| Management app | MyHILTRON (free) |
| Zones on bus line | Mpx via 200 |
| Installations that can be managed independently | 4 |
| Areas for installations | 8 |
| Ways of insertion | 8 |
| Consoles with input | 8 |
| Maximum number of users | 32 |
| Levels used | 8 |
| Event memory | 2048 |
| Rated supply voltage | 230V |
| Max deliverable current | 170 mA |
| Control and limits | 500 mA max |
| Output time adjustment | 1 ÷ 350 sec |
| Input time adjustment | 1 ÷ 350 sec |
| Adjusting alarm duration | 180 ÷ 600 sec |
| Repetition adjustment | 5 ÷ 600 sec |
| Alarm output | NO/NC 500 mA max |
| Logic output | 12V collector 2 |
| Alarm duration 24h | 180 ÷ 600 sec |
| Color | White |
| Security grade | 1 |
| Environmental class | 2 |
| Metal container - Dimensions (L) | 245 mm |
| Metal container - Dimensions (H) | 285 mm |
| Metal container - Dimensions (D) | 73 mm |

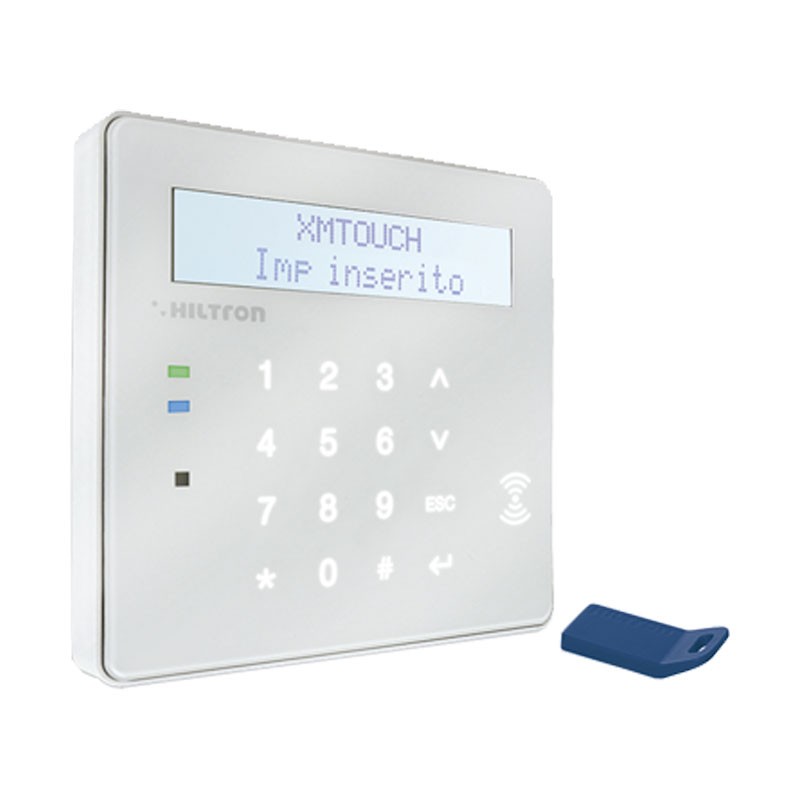

XMTOUCHB Series Touch Console
| Feature | Detail |
|---|---|
| Compatible with control panels | XM series |
| Elegant flat design | Touch and backlit keys |
| Color | White |
| Installation | With provision for wall box 503 |
| Display | Backlit alphanumeric LCD (2×16 characters) |
| Maximum power consumption | 250 mA |
| Rated supply voltage | 12 V |
| Tamper protection | Anti-opening and anti-tear |
| Signal LEDs | 2 |
| Approach sensor | With display illumination |
| Power consumption | 150 mA |
| Safety grade | 1 |
| Environmental class | 2 |
| IP rating | IP40 |
| Complies with the standard | IEC EN 50131-1 |
| Dimensions (L) | 132 mm |
| Dimensions (H) | 132 mm |
| Dimensions (D) | 20 mm |

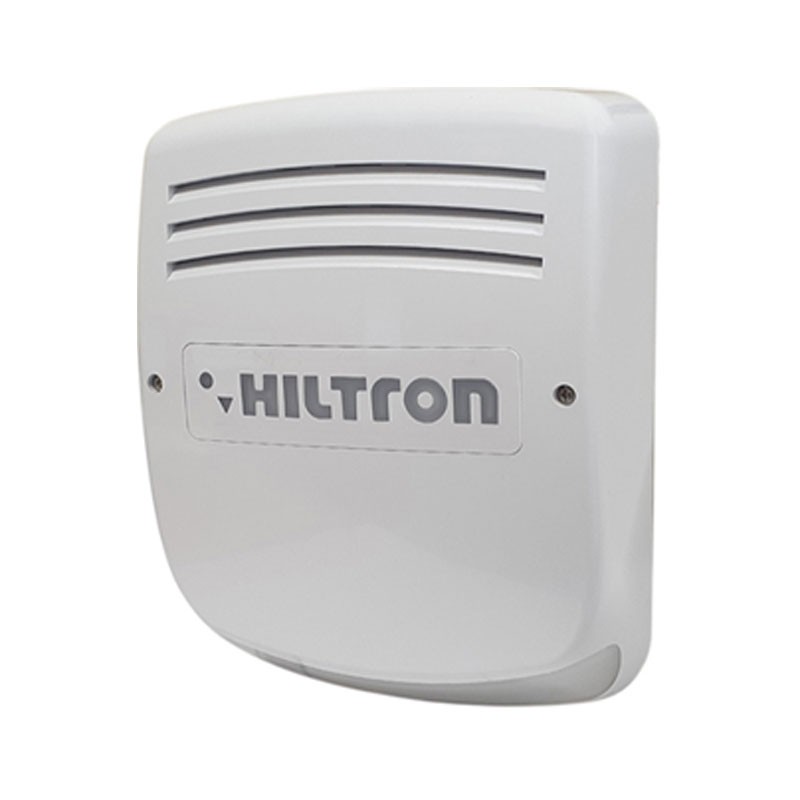

XM350 self-powered outdoor siren
| Feature | Detail |
|---|---|
| Operation test | Upon battery connection |
| LED flasher | High luminous efficiency and low power consumption |
| Inner container | Epoxy powder coated sheet steel |
| Container | ABS with polycarbonate flasher |
| Rated supply voltage | 12 VDC ±10% |
| Protection fuses | Lamp 1A, power supply 500mA |
| Pressure level | 100 dB(A) @ 1 m |
| Operating temperature | -25°C TO 55°C |
| Color | White |
| Battery compartment | B12V2A |
| Screws | Stainless steel |
| IP rating | IP34 |
| Safety grade | 1 |
| Environmental class | 4 |
| Dimensions (L) | 200 mm |
| Dimensions (H) | 265 mm |
| Dimensions (D) | 78 mm |

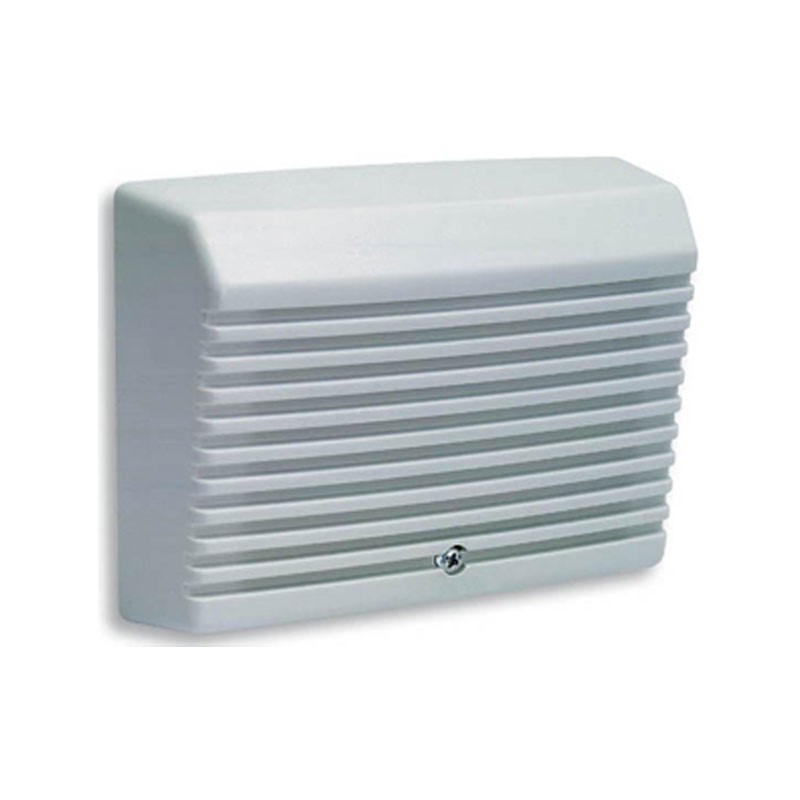

Piezo electronic indoor siren SP31
| Feature | Detail |
|---|---|
| Weight | 0.260 kg |
| Package dimensions | 14 × 7 × 18 cm |
| Protection | Against polarity reversal |
| Tamper protection | Anti-opening and anti-tear |
| Rated supply voltage | 12V |
| Maximum power consumption | 140 mA |
| Pressure level | 99 dB(A) @ 3 m |
| Frequency | 3585 Hz |
| Container | ABS |
| Operating temperature | 5°C TO 40°C |
| Size (L) | 135 mm |
| Dimension (H) | 95 mm |
| Dimension (D) | 43 mm |

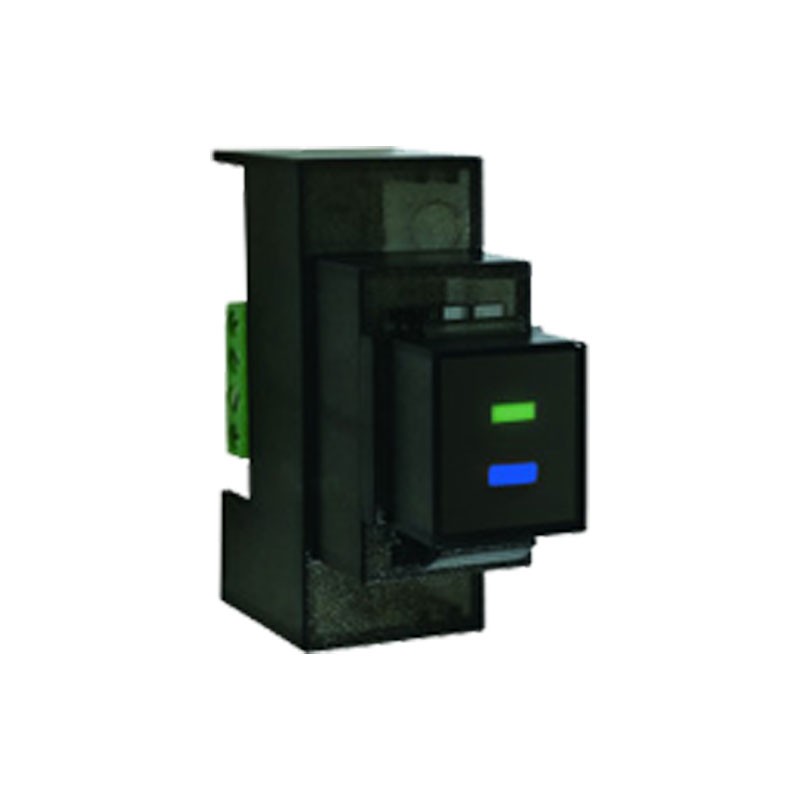

XM series proximity reader for KEYx keys
| Feature | Detail |
|---|---|
| Connection on bus line | 3 wires |
| Rated supply voltage | 12Vdc ±10% |
| Maximum power consumption | 35 mA |
| Safety rating | 1 |
| Environmental class | 2 |
| Size (L) | 18 mm |
| Dimension (H) | 32 mm |
| Dimension (D) | 30 mm |

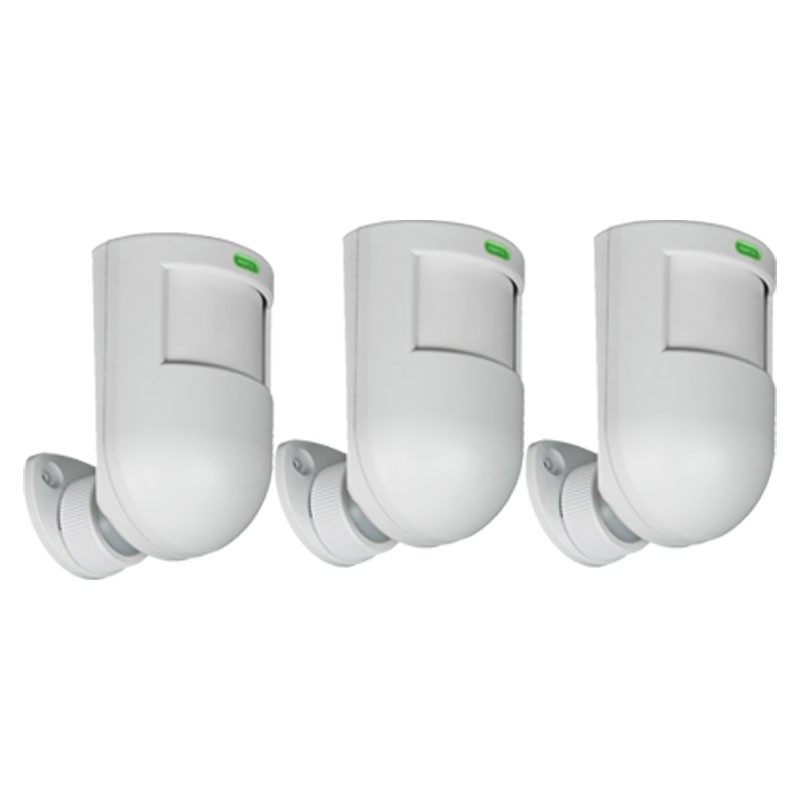

XM12DG dual technology detector
| Feature | Detail |
|---|---|
| Dual digital sensor | 1 |
| Microwave sensor | 10.525 GHz |
| Connection on bus line | 3 wires |
| Security grade | 1 |
| Environmental class | 2 |
| High immunity | 30 Vm |
| Rated supply voltage | 12 V |
| Maximum power consumption | 25 mA (on 12V); 1 mA (on MPX) |
| Lens beams | 22 (on 3 horizontal levels) |
| Sensitivity levels | 8 |
| Pulse counter function | Programmable |
| Coverage angle | H: 80°; V: 32° |
| Coverage | 12 m |
| Signal LEDs | Programmable |
| Initial stabilization time | 60 sec. |
| Dimensions (W) | 59 mm |
| Dimensions (H) | 99 mm |
| Dimensions (D) | 60 mm |

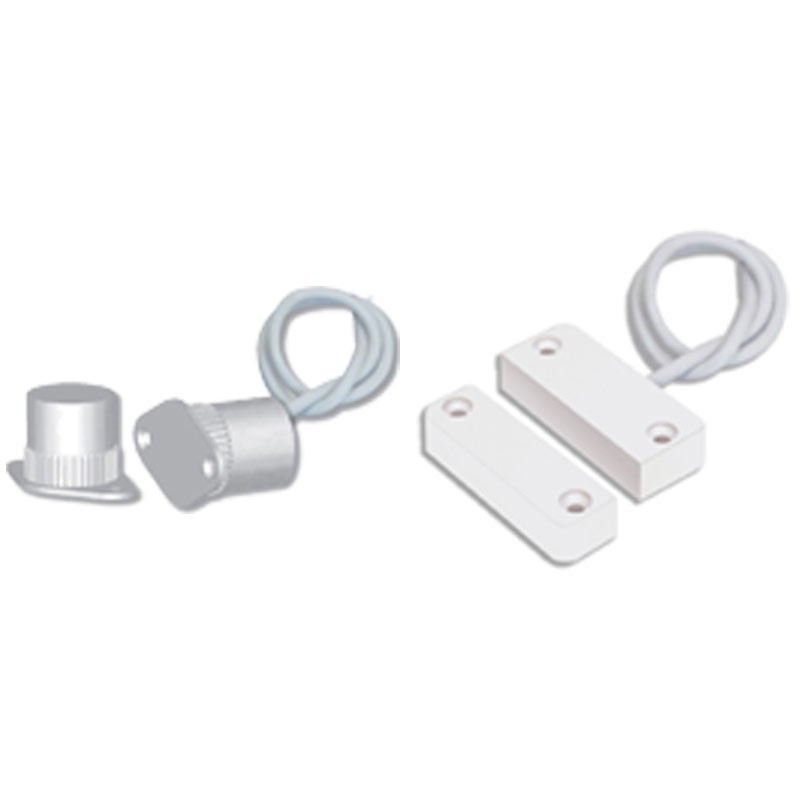

XM56 recessed magnetic contact
| Feature | Detail |
|---|---|
| Installation | Recessed on armored doors |
| Connection on bus line | 2 wires |
| Sensitivity levels | 8 (50 ms to 225 ms with 25 ms steps) |
| Operating distance | 26 mm (on wood or plastic) / 12 mm (on metal or aluminum) |
| Container | Nylon |
| Operating temperature | 5 °C TO 40 °C |
| Color | White |
| Dimensions (Ø) | 19 mm |
| Dimensions (H) | 19 mm |
External magnetic contact XM58
| Feature | Detail |
|---|---|
| Installation | External, on doors and windows |
| Connection on bus line | 2 wires |
| Sensitivity levels | 8 (50 ms to 225 ms with 25 ms steps) |
| Operating distance | 18 mm (on wood or plastic) |
| Container | Nylon |
| Operating temperature | 5 °C TO 40 °C |
| Color | White |
| Dimensions (L) | 16 mm |
| Dimensions (H) | 9 mm |
| Dimensions (D) | 40 mm |
