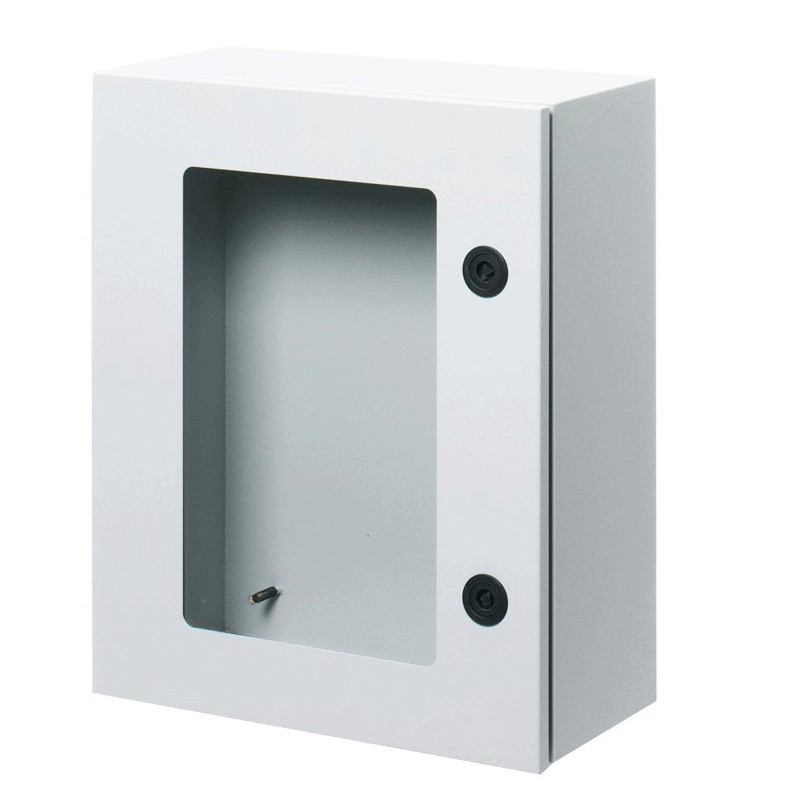

Metal cabinet with transparent door 405x500x200 IP55 GW46233
GEW GW46233
8011564096899
Gewiss metal switchboard, with the following characteristics:
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 106W
- Dissipated power B 80W
Compatible accessories: GW46403, GW46421F, GW46426F, GW46436F.
Metal cabinet with transparent door 405x500x200 IP55 GW46233
€267.27
€267.27
Tax included
Tax included
Pay in installments with Klarna
Items Available: 4
Frequently bought together
Features:
- Door equipped with tempered glass porthole and lock
- Nominal dimensions BxHxD 405x500x200 mm
- Functional dimensions BxHxD 405x500x200 mm
- Number of modules: 54 (on three rows) (EN 50022)
- Insulation class: prepared with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK08
- Degree of protection IP55
- Code Electrocod 0320
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type:
- Switchboards
- Degree of protection:
- IP55
- Model:
- Glass Door
