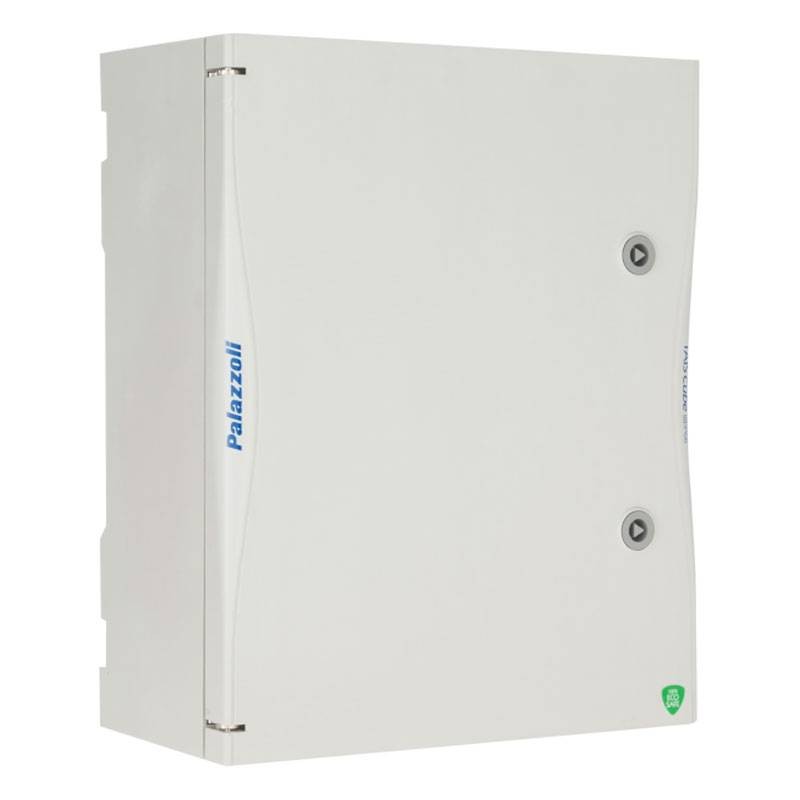

Palazzoli empty distribution board 630X810X300 IP66 550006
PAL 550006
8014950050888
Palazzoli TAIS CUBE 6 Thermoset empty distribution board with blind door:
-
External dimensions: 631 x 807 x 300 mm
-
Internal dimensions: 570 x 750 x 235 mm
-
Degree of protection: IP66, ideal for indoor and outdoor environments
-
Power dissipation: 302 W
-
Material: impact and weather resistant thermoset.
€422.80
Items Available: 8
Palazzoli TAIS CUBE empty distribution board
The Palazzoli TAIS CUBE size 6 empty distribution board is a versatile and durable solution for the installation of civil and industrial electrical systems. Made of thermoset material, it offers high impact resistance, protection against dust and water jets (IP66), ensuring safety and durability even in outdoor or industrial environments.
The solid door allows protection of internal components while allowing easy access for maintenance or installation. The generous internal dimensions make it possible to accommodate standard devices and modules, while the dissipation capacity of 302 W ensures stable performance even with power-hungry equipment.
Features and Benefits
Advanced Protection
IP66 rating provides total protection against the ingress of dust and water jets, making the panel suitable for both indoor and outdoor installations.
Superior materials
Thermoset housing resists impact and adverse weather conditions, ensuring long life and safety for the entire electrical system.
Ample interior space
Internal dimensions of 570 x 750 x 235 mm provide ample space for mounting devices, allowing for orderly and safe handling of electrical components.
Easy installation
Blind door and modular design enable quick and easy installation, reducing work time and facilitating any maintenance work.
| Feature | Value |
|---|---|
| Body material | Palazzoli thermosetting resin |
| Color | Gray RAL 7035 |
| Execution | Wall-mounted |
| Door type | Blind |
| Number and type of latches | 2 latches with triangle key |
| No. of DIN rail modules | - |
| Internal usable depth | 235 mm |
| IP rating | IP66 |
| Impact resistance | IK10 according to IEC/EN 62262 |
| Glow Wire Resistance | 960°C |
| Self-extinguishing | According to UL94 V-0 |
| Corrosion Category | - |
| Ambient operating temperature | Min: -30°C / Max: +90°C |
| Ambient storage temperature | Min: -50°C / Max: +90°C |
| External Dimensions (W×H×D) | 631 × 807 × 300 mm |
| Interior dimensions (W×H×D) | 570 × 750 × 235 mm |
| Net weight | 14.75 kg |
| Maximum allowable load | On the bottom: 60 kg Mounting surfaces: 50 kg On the doors: 10 kg |
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Blind Door
