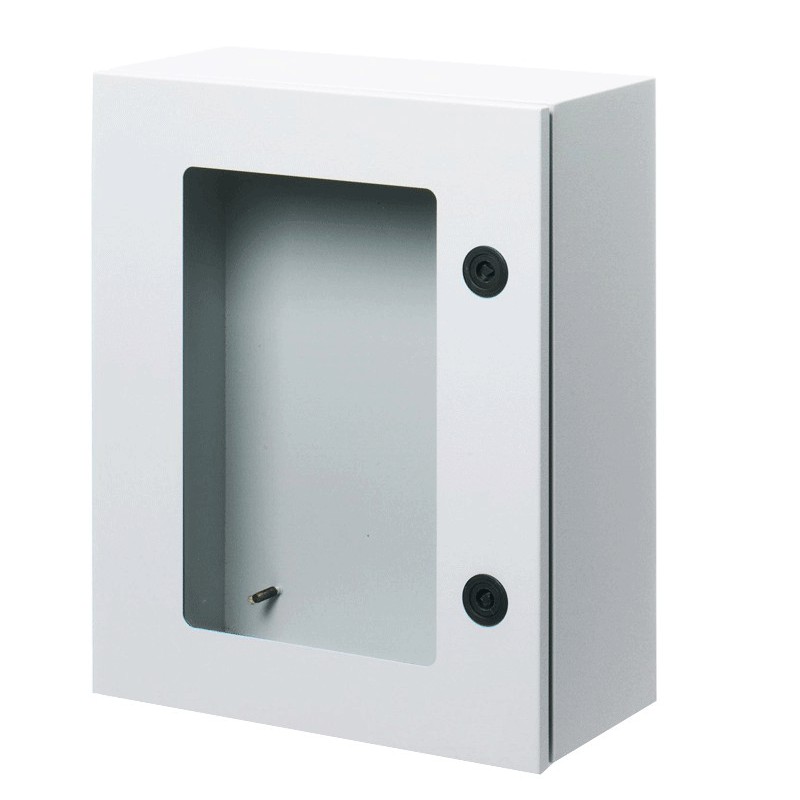

Metal cabinet with transparent door 310x425x160 IP55 GW46232

Gewiss
Gewiss
GEW GW46232 8011564096882

Gewiss metal switchboard, with the following characteristics:

  • Maximum rated operating voltage (Ue) 690 V
  • Power dissipation A 70W
  • Dissipating power B 58W

Compatible accessories: GW46402, GW46420F, GW46435F, GW46425F.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Metal cabinet with transparent door 310x425x160 IP55 GW46232
€214.75
€214.75

€214.75
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€214.75

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Door equipped with portholes in tempered glass and lock

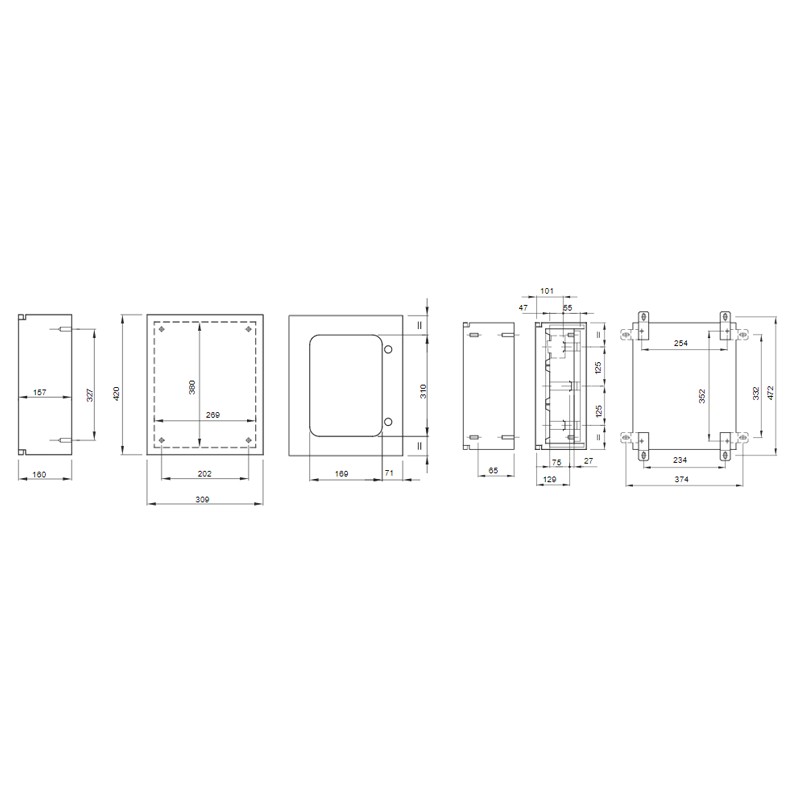

  • Nominal dimensions BxHxD 310x425x160 mm
  • Functional dimensions BxHxD 310x425x160 mm
  • Number of modules: 36 (on three rows) (EN 50022)
  • Insulation class: prepared with earthing collar
  • Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
  • Material type: metal
  • Colour: grey RAL 7035
  • Impact resistance: IK08
  • Degree of protection IP55
  • Code Electrocod 0320
  • Number of locks: 2
  • Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
  • Family 46 QM
  • Application: for internal use
  • Operating temperature -25 +60 °C

There are no reviews

Data sheet

Type:
Switchboards
Degree of protection:
IP55
Model:
Glass Door
Contact details of the manufacturer and the responsible person

Other products with same features
