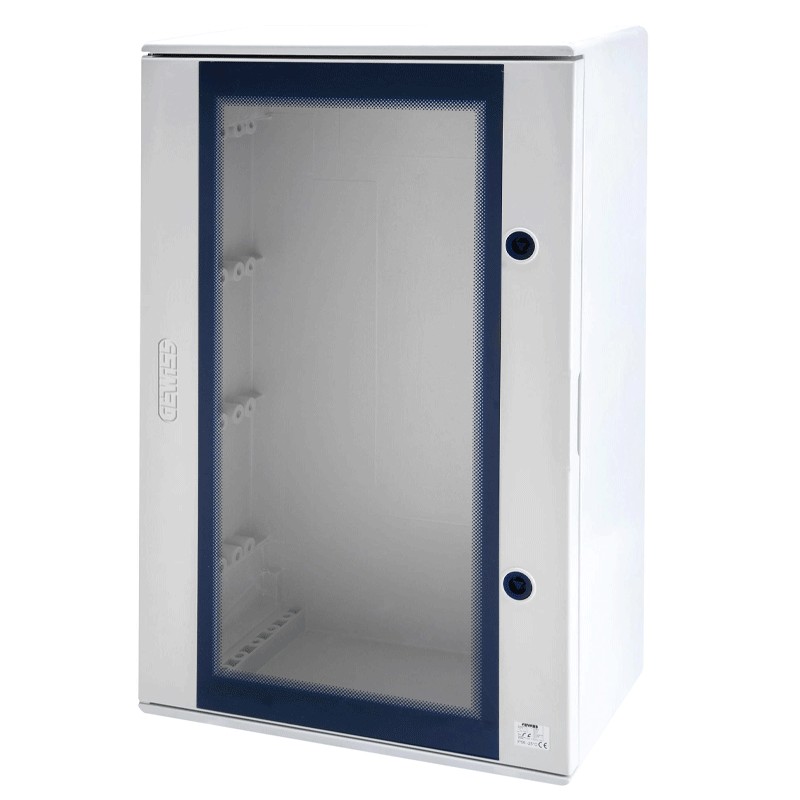

Gewiss wall-mounted switchboard with transparent door 585x800x300 IP66 GW46206F

Gewiss
Gewiss
GEW GW46206F 8011564854833

Gewiss wall-mounted switchboard, with the following characteristics:

  • 1000 V insulation voltage
  • Insulation voltage 1000 V according to EN 62208 both in AC and DC
  • Maximum nominal operating voltage (Ue) 690 V
  • Power dissipation A 205W
  • Dissipated power B 146W

Double insulation recovery kit GW46526.

Wall fixing brackets GW46446, GW46451.

Compatible accessories: GW46423F, GW46435F, GW46418, GW46438F.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss wall-mounted switchboard with transparent door 585x800x300 IP66 GW46206F
€549.84
€549.84

€549.84
Tax included
Calculate shipping cost
Items Available: 14
Further availability of the manufacturer
€549.84

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Transparent door with lock

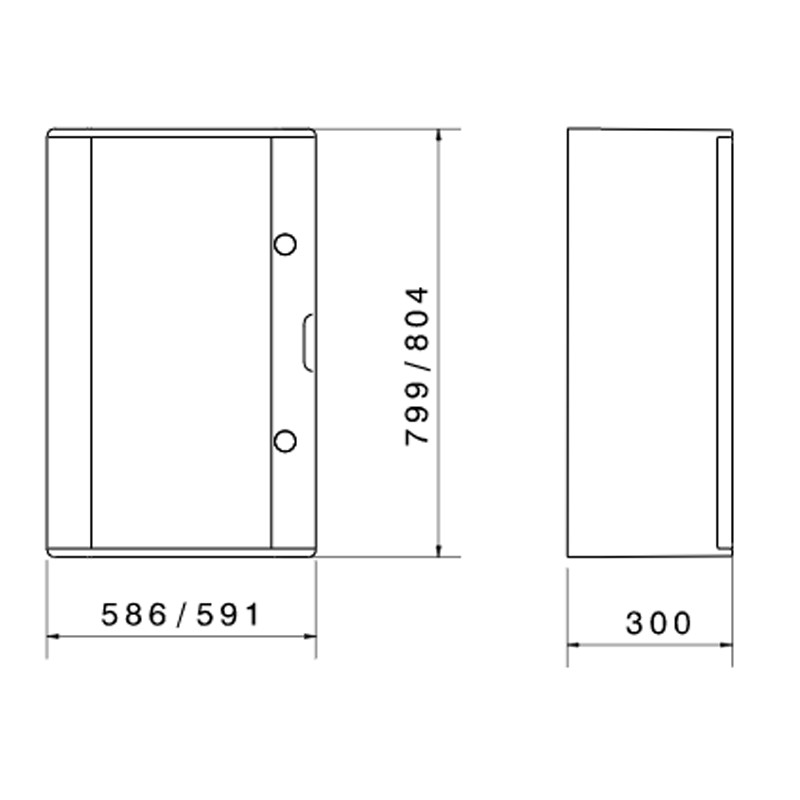

  • Nominal dimensions BxHxD 585x800x300 mm
  • Functional dimensions BxHxD 591x804x300 mm
  • Number of modules: 140 (on five rows) (EN 50022)
  • Insulation class: II
  • Material: glass fibre reinforced polyester
  • Material type: Halogen free according to EN 60754-2 standard
  • Colour: grey RAL 7035
  • Impact resistance: case IK10
  • Degree of protection IP66
  • Electrocod code 0321
  • Number of locks: 2
  • Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
  • Family 46 QP
  • Characteristics: UV resistance (EN 62208)
  • Operating temperature -25 +60 °C
  • Thermopressure with ball 200 °C

There are no reviews

Data sheet

Type:
Switchboards
Degree of protection:
IP66
Model:
Glass Door
