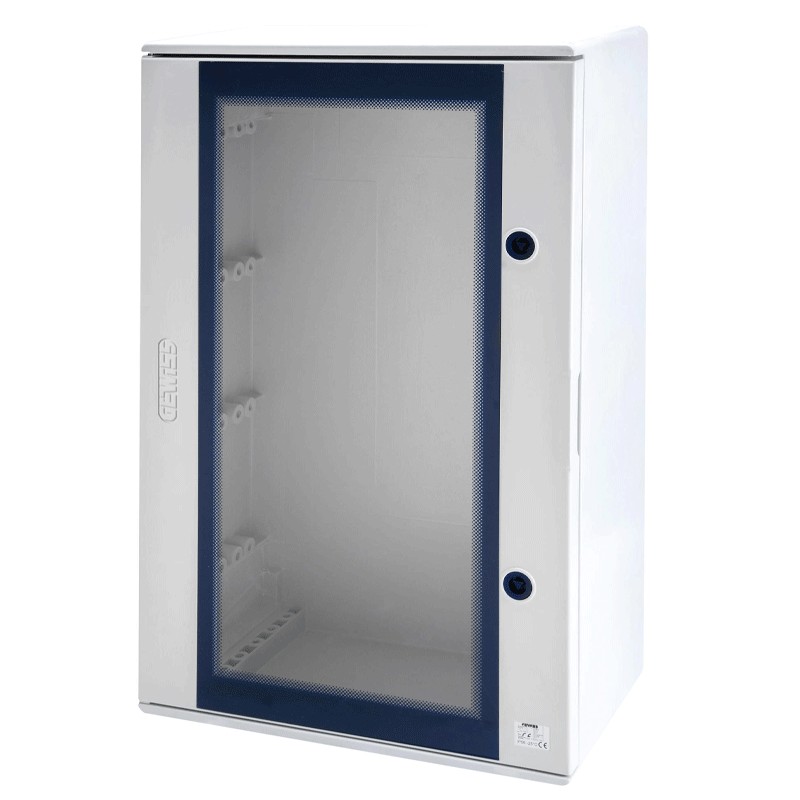

Gewiss wall-mounted switchboard with transparent door 515x650x250 IP66 GW46205F
GEW GW46205F
8011564854826
Gewiss wall-mounted switchboard, with the following characteristics:
- 1000 V insulation voltage
- Insulation voltage 1000 V according to EN 62208 both in AC and DC
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 126W
- Power dissipation B 106W
Double insulation recovery kit GW46526.
Wall fixing brackets GW46446, GW46451.
Compatible accessories: GW46422F, GW46437F, GW46446, GW46417.
€396.92
Items Available: 15
: 3
Frequently bought together
Features:
- Transparent door with lock

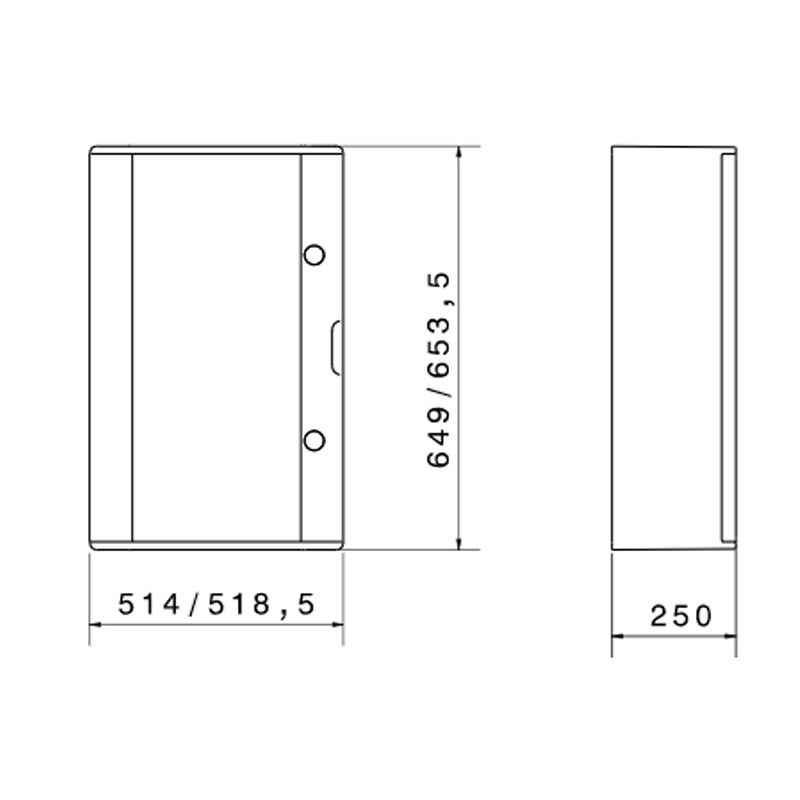

- Nominal dimensions BxHxD 515x650x250 mm
- Functional dimensions BxHxD 518,5x653,5x250 mm
- Number of modules: 96 (on four rows) (EN 50022)
- Insulation class: II
- Material: polyester reinforced with glass fibre
- Material type: Halogen free according to EN 60754-2 standard
- Colour: grey RAL 7035
- Impact resistance: case IK10
- Degree of protection IP66
- Electrocod code 0321
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QP
- Characteristics: UV resistance (EN 62208)
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
