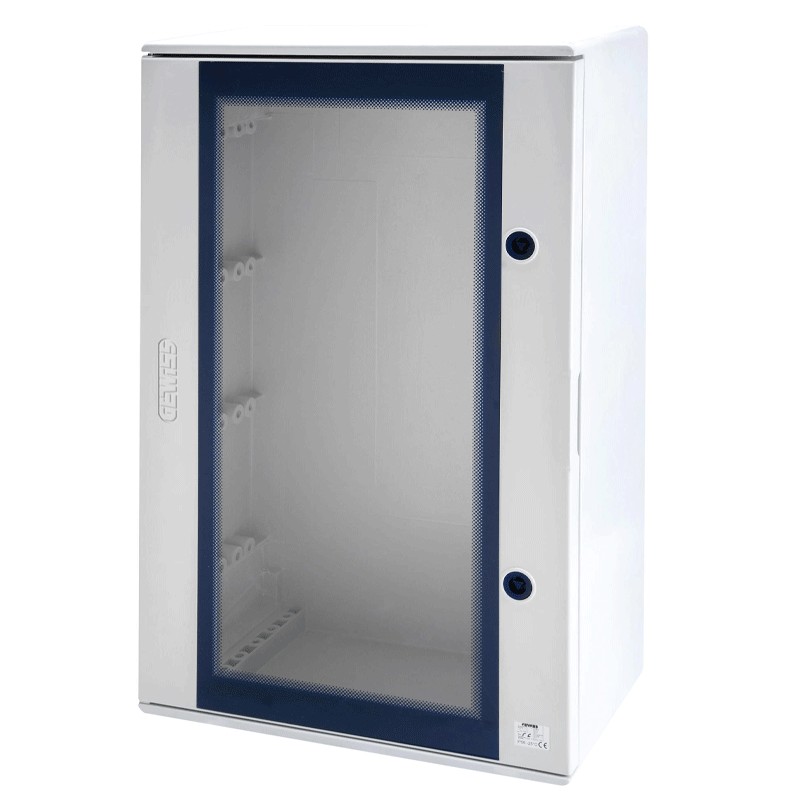

Gewiss wall-mounted switchboard with transparent door 310x425x160 IP66 GW46202F

Gewiss
Gewiss
GEW GW46202F 8011564854796

Gewiss wall-mounted switchboard, with the following characteristics:

  • Maximum nominal operating voltage (Ue) 690 V
  • Power dissipation A 48W
  • Power dissipation B 39W
  • IP66 degree of protection

Kit for restoring double insulation GW46526.

Wall fixing brackets GW46446,GW46451.

Compatible accessories: GW46420F, GW46435F, GW46402, GW46414.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss wall-mounted switchboard with transparent door 310x425x160 IP66 GW46202F
€181.17
€181.17

€181.17
Tax included
Calculate shipping cost
Items Available: 25
Further availability of the manufacturer
€181.17

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Transparent door with lock
  • Nominal dimensions BxHxD 310x425x160 mm
  • Functional dimensions BxHxD 316x427x160 mm
  • Number of modules: 36 (on three rows) (EN 50022)
  • Insulation class: II
  • Material: glass fibre reinforced polyester
  • Material type: Halogen free according to EN 60754-2 standard
  • Colour: grey RAL 7035
  • Impact resistance: case IK10
  • Electrocod code 0321
  • Number of locks: 2
  • Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
  • Family 46 QP
  • Characteristics: UV resistance (EN 62208)
  • Operating temperature -25 +60 °C
  • Thermopressure with ball 200 °C

There are no reviews

Data sheet

Type:
Switchboards
Degree of protection:
IP66
Model:
Glass Door
