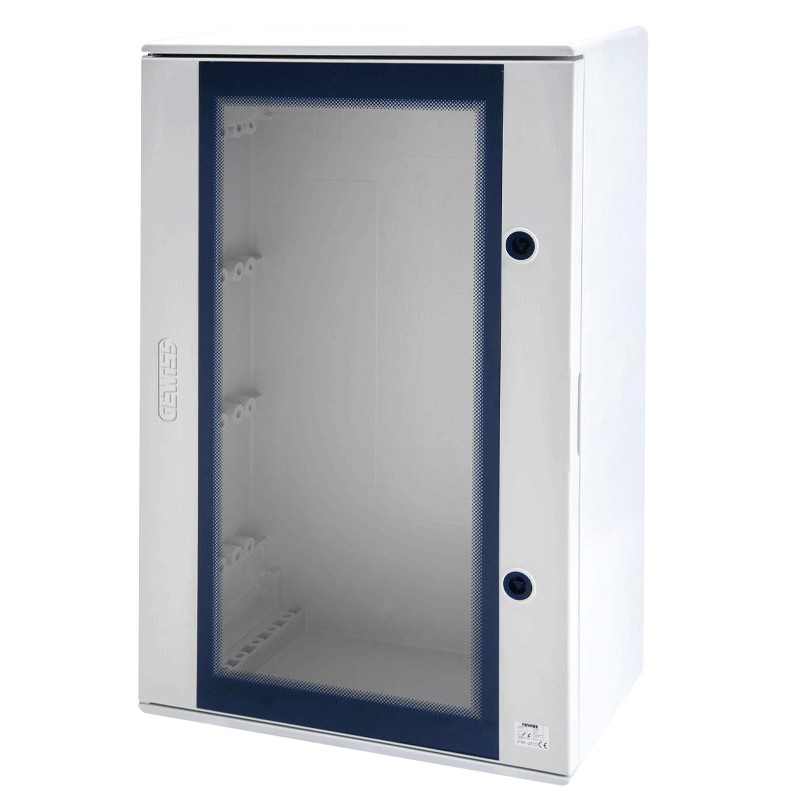

Gewiss wall-mounted switchboard with transparent cover 800x1060x350 IP66 GW46207F

Gewiss
Gewiss
GEW GW46207F 8011564854840

Gewiss wall-mounted switchboard, with the following characteristics:

  • Insulation voltage 1000 V
  • Maximum rated voltage (Ue) 690 V
  • Power dissipation A 324W
  • Dissipated power B 226W

Double insulation recovery kit GW46526.

Wall fixing brackets GW46446, GW46451.

Compatible accessories: GW46407, GW46424F, GW46439F.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss wall-mounted switchboard with transparent cover 800x1060x350 IP66 GW46207F
€1,018.57
€1,018.57

€1,018.57
Tax included
Calculate shipping cost
Items Available: 17
Further availability of the manufacturer
€1,018.57

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Transparent door with lock

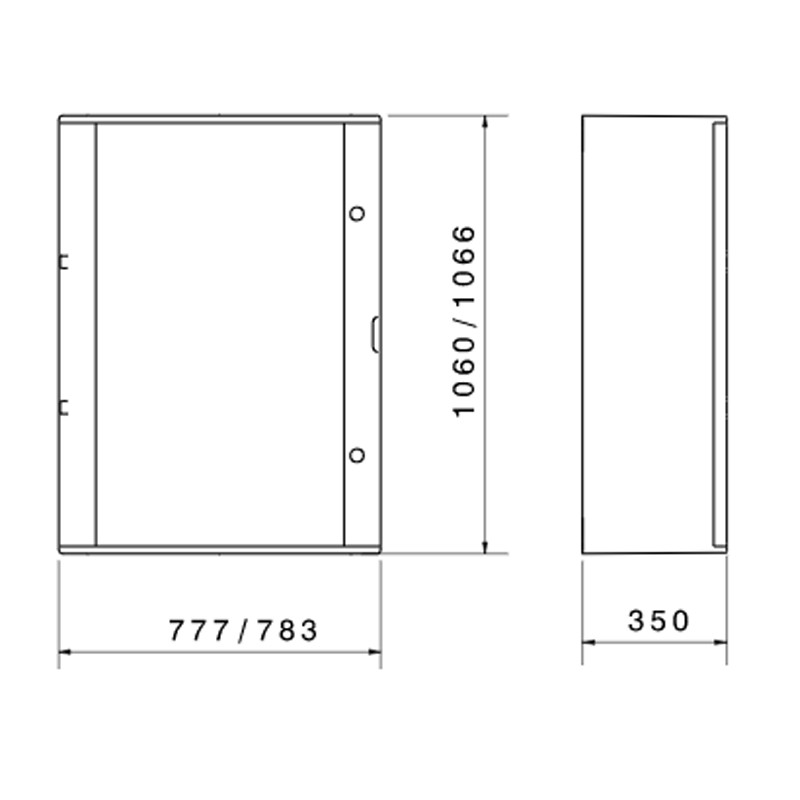

  • Nominal dimensions BxHxD 800x1060x350 mm
  • Functional dimensions BxHxD 783x1066x350 mm
  • Number of modules: 180 (on five rows) (EN 50022)
  • Insulation class: II
  • Material: polyester reinforced with glass fibre
  • Material type: Halogen free according to EN 60754-2 standard
  • Colour: grey RAL 7035
  • Impact resistance: case IK10
  • Degree of protection IP66
  • Electrocod code 0321
  • Number of locks: 2
  • Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
  • Family 46 QP
  • Characteristics: UV resistance (EN 62208)
  • Operating temperature -25 +60 °C
  • Thermopressure with ball 200 °C

There are no reviews

Data sheet

Type:
Switchboards
Degree of protection:
IP66
Model:
Glass Door
