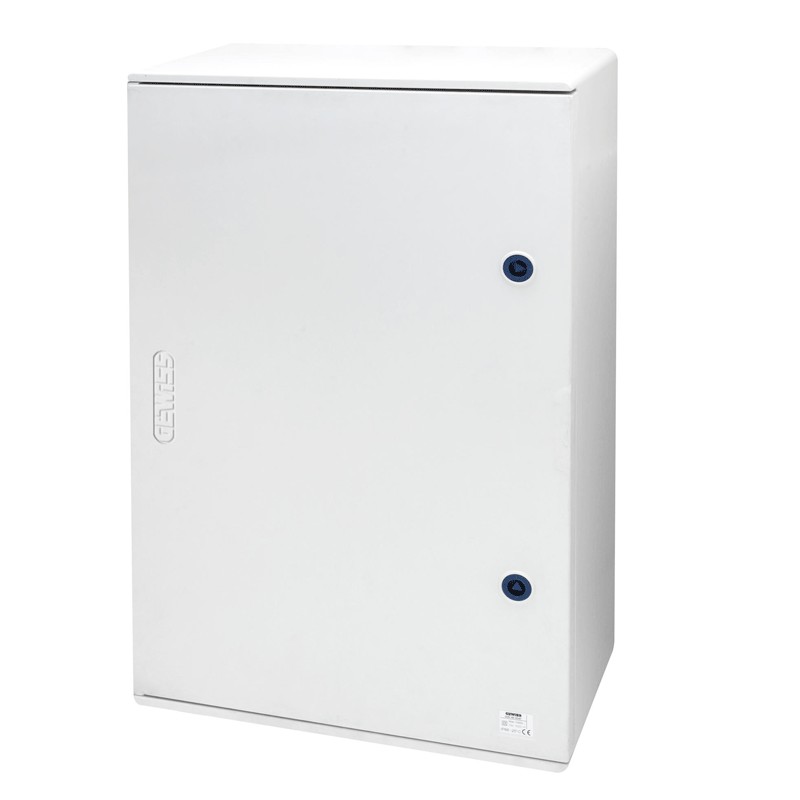

Gewiss wall-mounted electric box with solid door 405x650x200 IP66 GW46004F
GEW GW46004F
8011564854741
Gewiss wall-mounted electrical panel, with the following characteristics:
- 1000 V insulation voltage
- Insulation voltage 1000 V according to EN 62208 both in AC and DC
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 118W
- Power dissipation B 81W
Double insulation recovery kit GW46526.
Wall-mounting brackets GW46446, GW46451.
Compatible accessories: GW46404, GW46416, GW46421F, GW46437F.
€272.30
Items Available: 38
: 14
Frequently bought together
Features:
- Blind door with lock

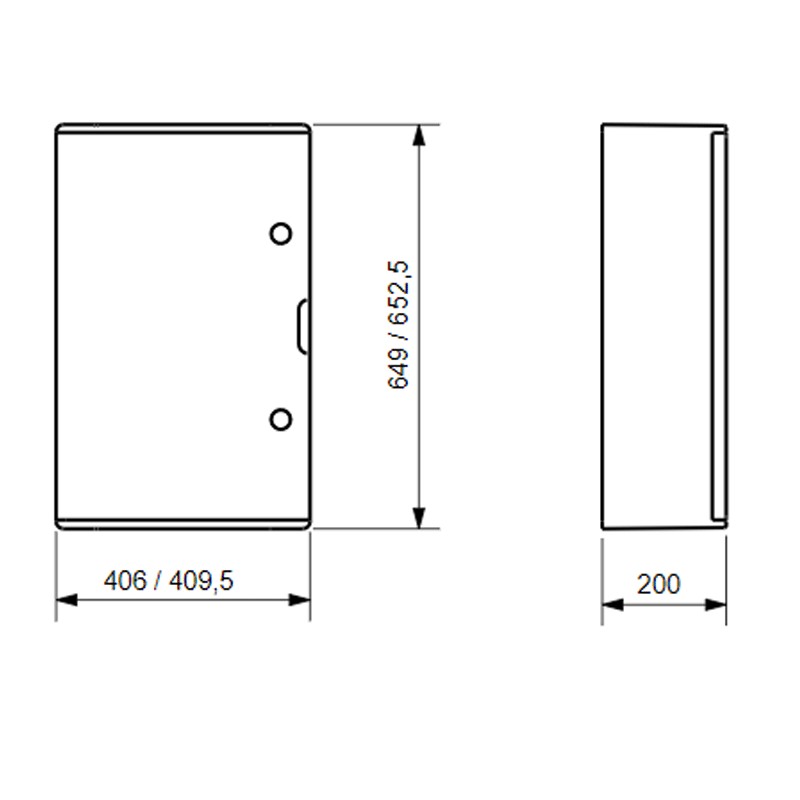

- Nominal dimensions BxHxP 405x650x200 mm
- Functional dimensions BxHxD 409,5x652,5x200 mm
- Degree of protection IP66
- Shock resistance: IK10
- Number of modules: 72 (on four rows) (EN 50022)
- Insulation class II
- UV resistance (EN 62208)
- Material glass-fibre reinforced polyester
- Type Material Halogen free according to EN 60754-2 standard
- Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Colour: grey RAL 7035
- Glow wire resistance 960 °C
- Electrocod Code 0321
- Family 46 QP
- Number of locks: 2
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Blind Door
