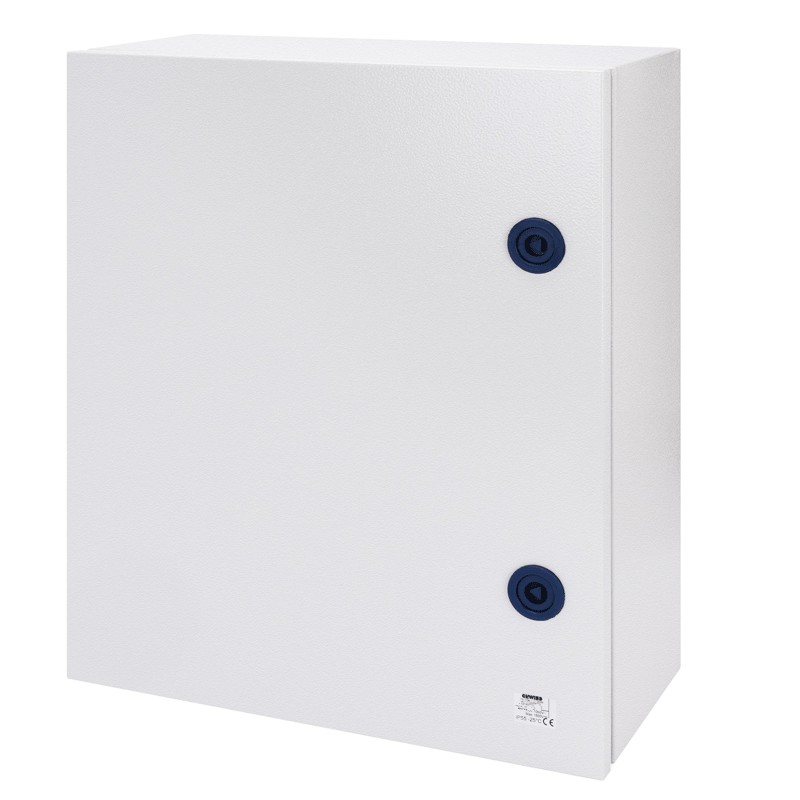

Gewiss metal panel with solid door 405x650x200 IP55 GW46034
GEW GW46034
8011564096844
Gewiss metal switchboard, with the following characteristics:
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 135W
- Power dissipation B 97W
- IP55 degree of protection
Compatible accessories: GW46426F, GW46404, GW46421F, GW46437F.
€278.24
Items Available: 4
: 1
Frequently bought together
Features:
- Blind door with lock

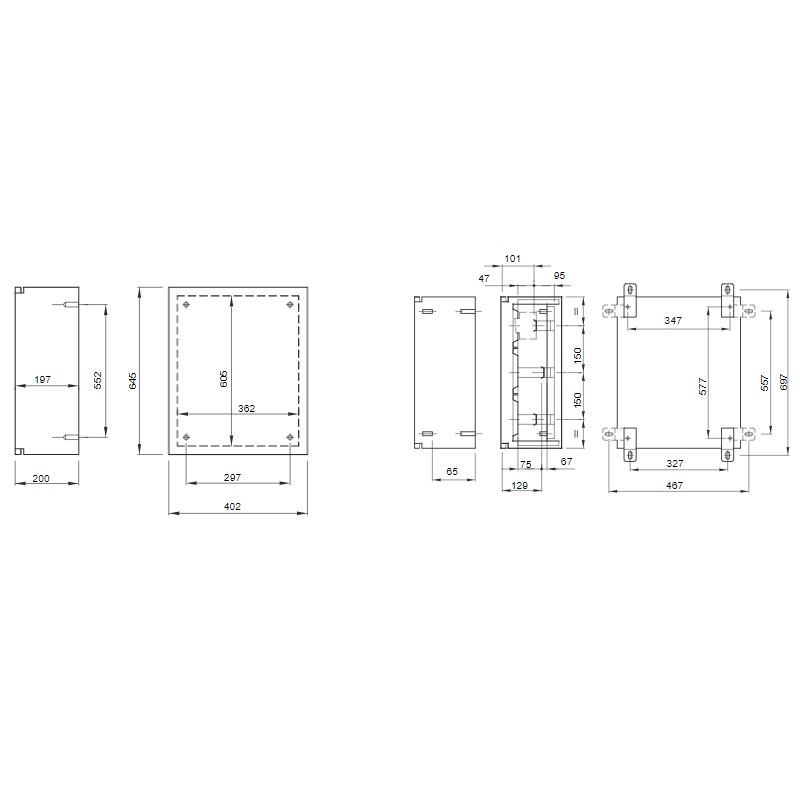

- Nominal dimensions BxHxP 405x650x200 mm
- Functional dimensions BxHxD 405x650x200 mm
- Number of modules: 72 (on four rows) (EN 50022)
- Insulation class: prepared with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK10
- Code Electrocod 0320
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP55
- Model: Blind Door
