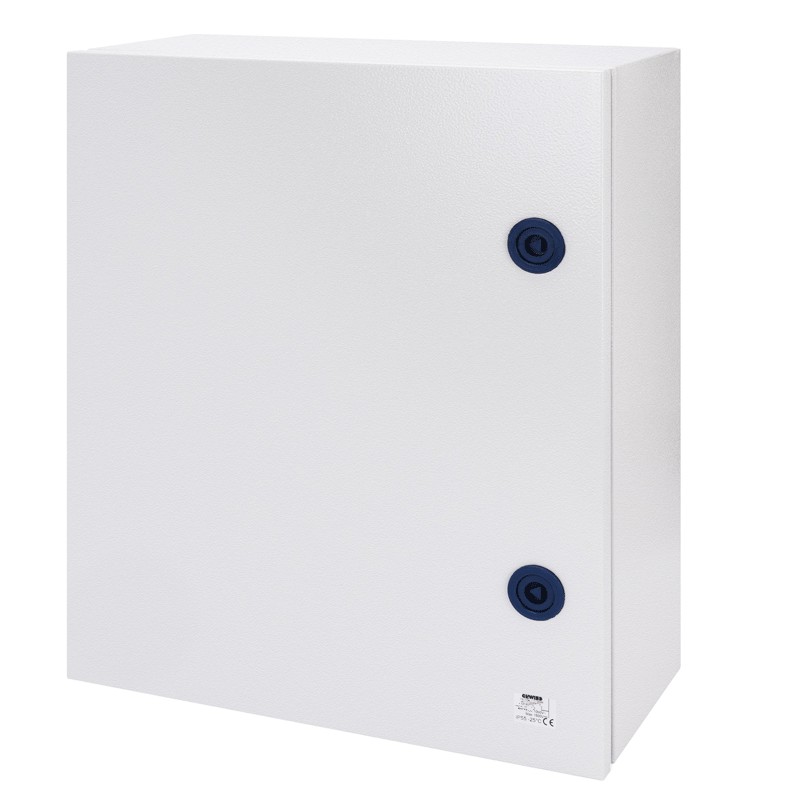

Gewiss metal panel blind door 585x800x300 IP55 GW46036
GEW GW46036
8011564096868
Gewiss metal switchboard, with the following characteristics:
- Maximum rated operating voltage (Ue) 690 V
- Power dissipation A 240W
- Power dissipation B 159W
- IP55 degree of protection
Compatible accessories: GW46438F, GW46406, GW46428F, GW46423F.
€464.07
Items Available: 3
Frequently bought together
Features:
- Blind door with lock

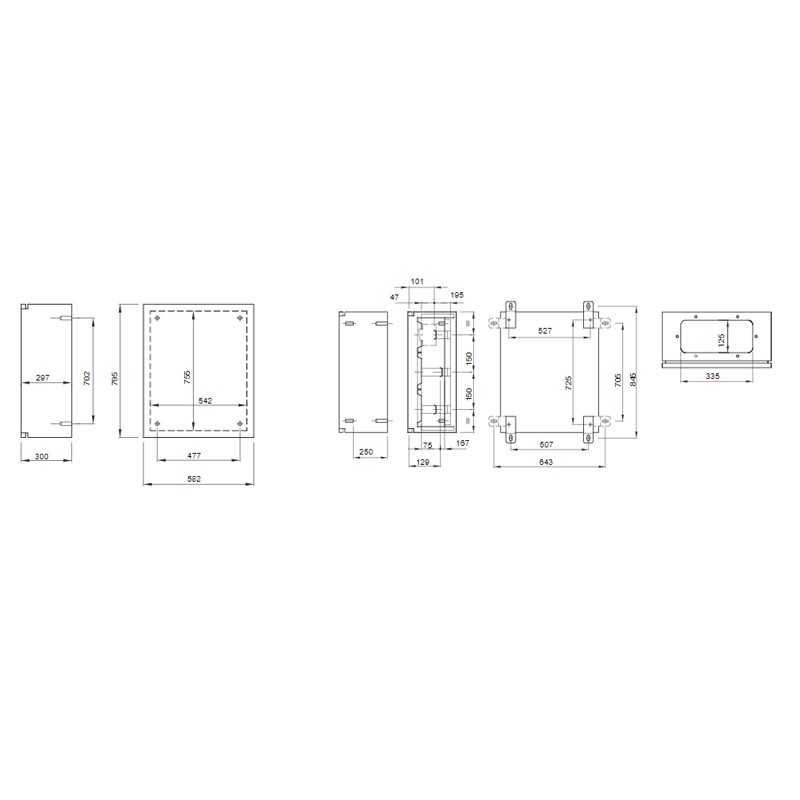

- Nominal dimensions BxHxD 585x800x300 mm
- Functional dimensions BxHxD 585x800x300 mm
- Number of modules: 140 (on five rows) (EN 50022)
- Insulation class: prepared with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK10
- Code Electrocod 0320
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP55
- Model: Blind Door
