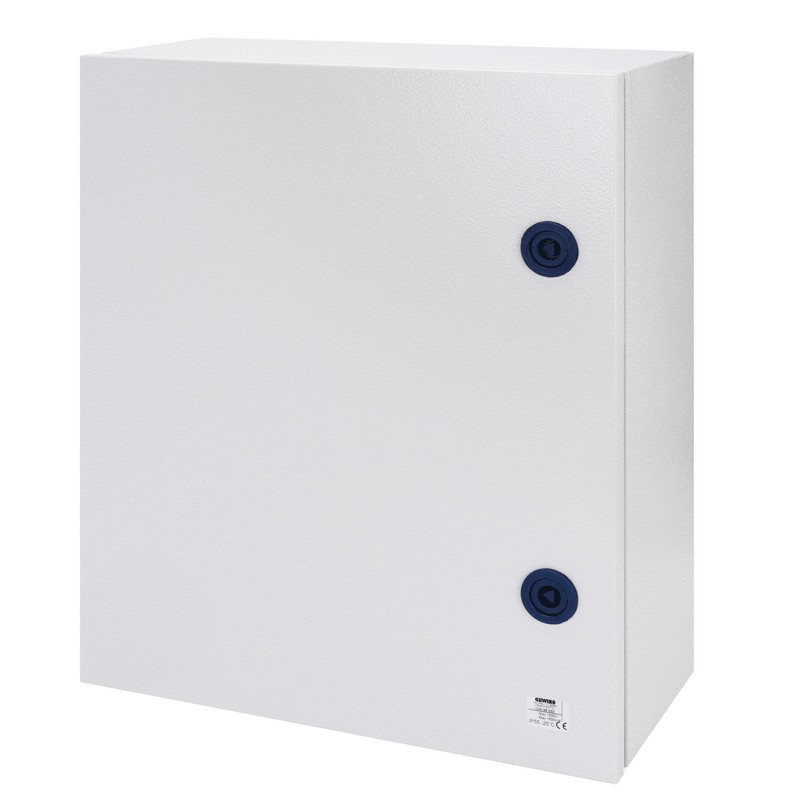

Gewiss metal panel blind door 405x500x200 IP55 GW46033
GEW GW46033
8011564096837
Gewiss metal switchboard, with the following characteristics:
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 106W
- Power dissipation B 80W
- IP55 degree of protection
Compatible accessories: GW46421F, GW46403, GW46426F, GW46436F.
€239.02
Items Available: 5
Frequently bought together
Features:
- Blind door with lock

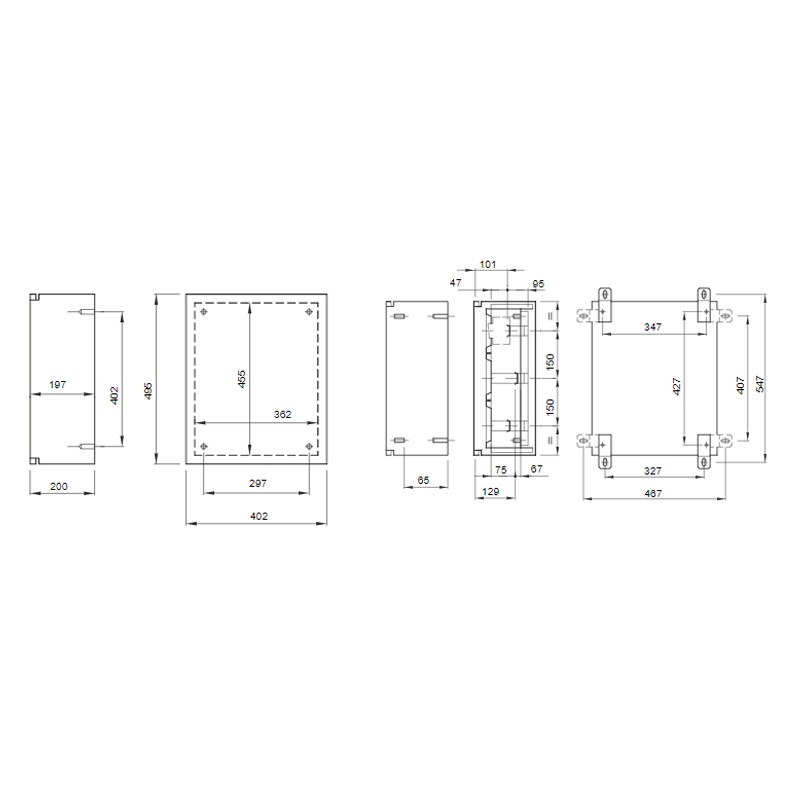

- Nominal dimensions BxHxP 405x500x200 mm
- Functional dimensions BxHxD 405x500x200 mm
- Number of modules: 54 (on three rows) (EN 50022)
- Insulation class: prepared with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK10
- Code Electrocod 0320
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP55
- Model: Blind Door
