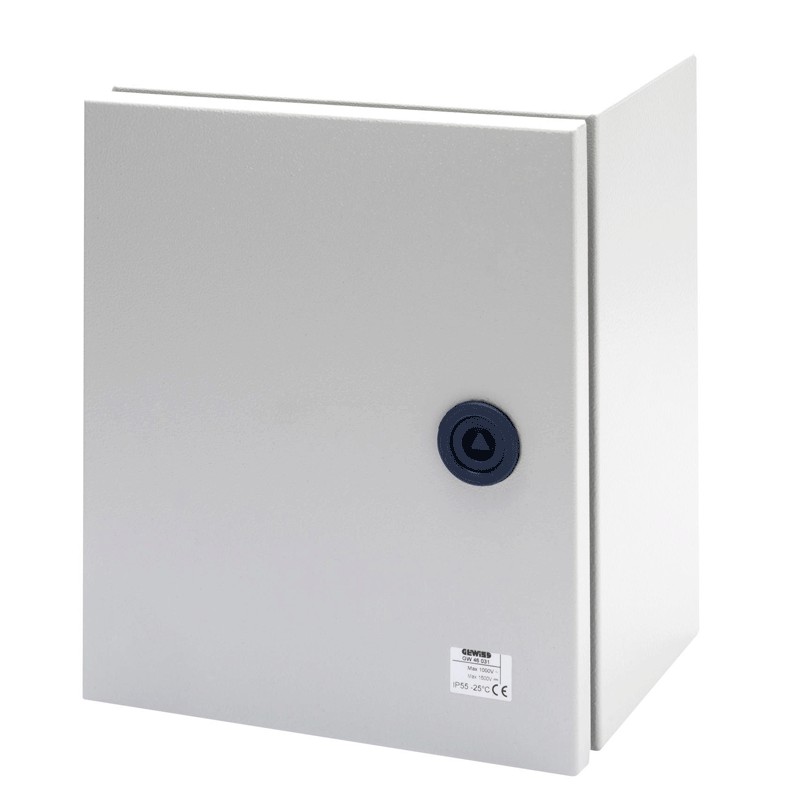

Gewiss metal panel blind door 250x300x160 IP55 GW46031
GEW GW46031
8011564096813
Gewiss metal switchboard, with the following characteristics:
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 49W
- IP55 degree of protection
Wall-mounting bracket GW46446.
Compatible accessories: GW46401, GW46408.
€156.91
Items Available: 5
: 2
Frequently bought together
Features:
- Blind door with lock

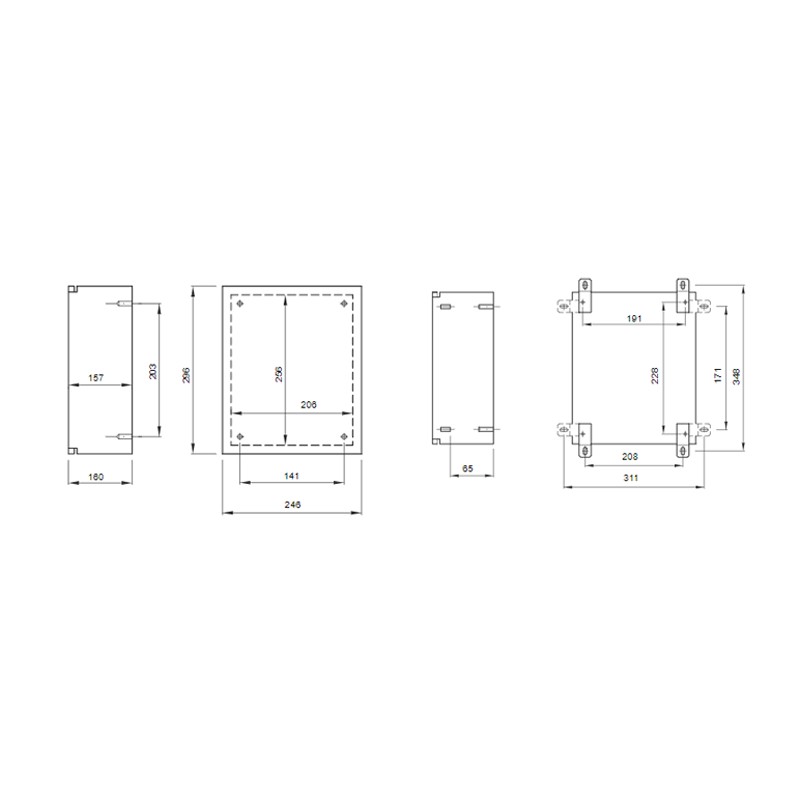

- Nominal dimensions BxHxD 250x300x160 mm
- Functional dimensions BxHxD 250x300x160 mm
- Insulation class: prearranged with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK10
- Code Electrocod 0320
- Number of locks: 1
- Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP55
- Model: Blind Door
