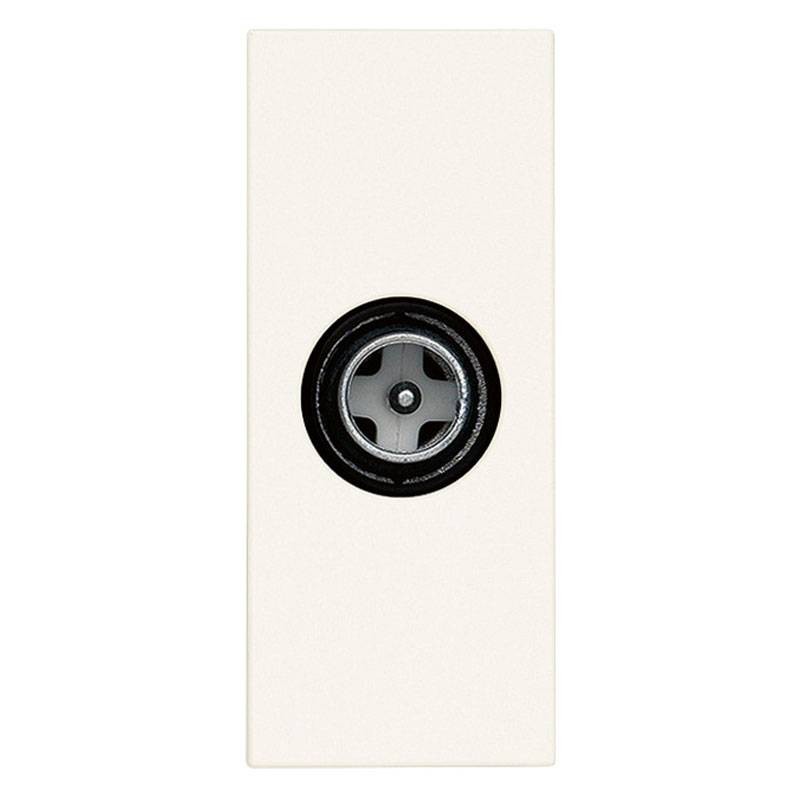

Vimar Linea TV-RD-SAT Direct Coaxial Socket White 30300.01B
VIW 30300.01B
8007352677340
Vimar TV-RD-SAT direct coaxial receptacle White Line (shunt), with male connector, shunt attenuation 1 dB.
White color, 1 module.
Allows the passage of direct current and control signals (24 V 500 mA max).
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
€11.43
Items Available: 588
: 79
Frequently bought together
The direct outlet is also called the end because, precisely, it corresponds to the end of the antenna cable. We call it a feed-through socket, on the other hand, when the antenna cable that reaches the socket, comes out and goes into another socket.
Characteristics:
- Connection attenuation at 860 MHz 0.10 dB
- Type of fixing snap-on fixing
- Material quality thermoplastic material
- Degree of protection IP20
- Number of fruit modules 1
- Frequency 5 - 2400 MHz
- RAL code (similar) 9016.
molto soddisfatto, tutto secondo aspettative, prezzo competitivo e spedizione nella norma senza problemi
Data sheet
- Main Commands: TV sockets
