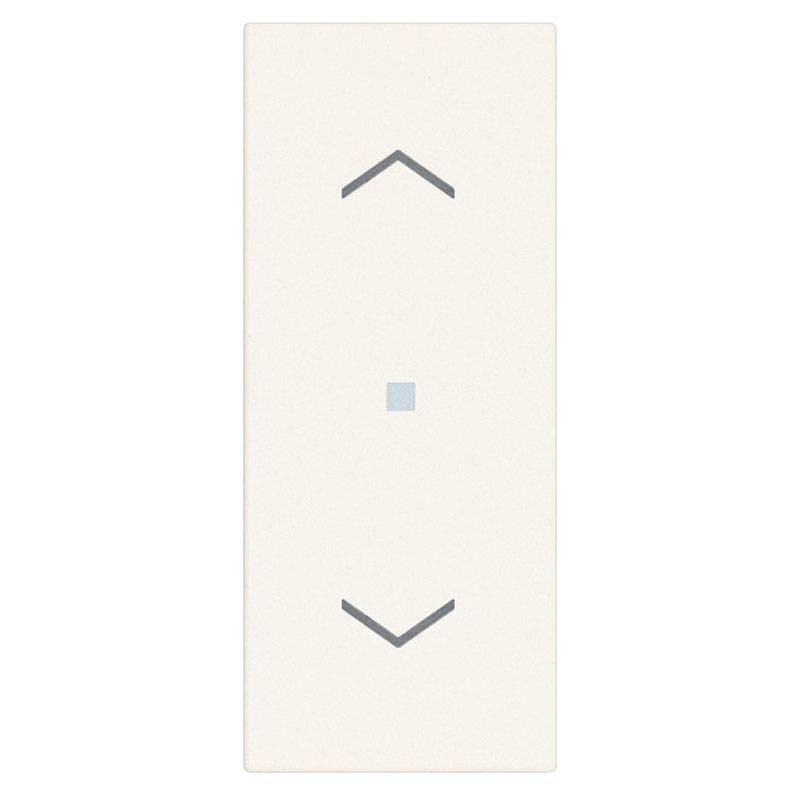

Vimar Linea Quid roller shutter switch White 30196.B
VIW 30196.B
8007352689565
Vimar Quid Electronic Roller Shutter Switch, centralized electronic switch for roller shutters, blinds and awnings with slat orientation and position memory function. Convenience and control from a single point.
-
Electronic management of rolling shutters/shutters/awnings
-
Slat orientation control
-
Favorite position memorization
-
Centralizable: multiple control from a single point
-
Color White Quid Series
-
Relay outputs cos 0.6 2 amps
-
Supply voltage: 220-240 V~ 50/60 Hz
-
1 Module
-
Compatible with frames 30613 - 30614 - 30617
€45.79
Items Available: 29
: 10
Frequently bought together
Vimar Quid Electronic Roller Shutter Switch: Intelligent and centralized control
The Vimar Quid 30196.xxx rolling shutter switch is designed to control electric motors for rolling shutters, awnings or blinds, while also allowing slat orientation. Thanks to the preferred position memorization function, it allows for personalized and intuitive use: a simple touch is all it takes to return the shutter to the saved position, regardless of the current position.
The device has relay outputs per motor with so? 0.6 up to 2 A and can be centrally connected with other devices to control multiple points from a single position. This feature is ideal in domestic and commercial environments where simultaneous and coordinated management of solar shading is required.
Aesthetics and compatibility
The device fits perfectly into the Vimar Quid range, with a Hemp finish that can be combined with the other components of the same line. Its sober and contemporary aesthetics can be discreetly integrated into any residential or business context.
Applications
-
Management of motors for electric shutters
-
Control of adjustable shutters
-
Use on motorized blinds
-
Centralized home automation systems
-
Residential and professional environments
Compatibility
-
Vimar Quid system
-
Installable on Quid mounts and plates
-
Centralized control with other Vimar devices

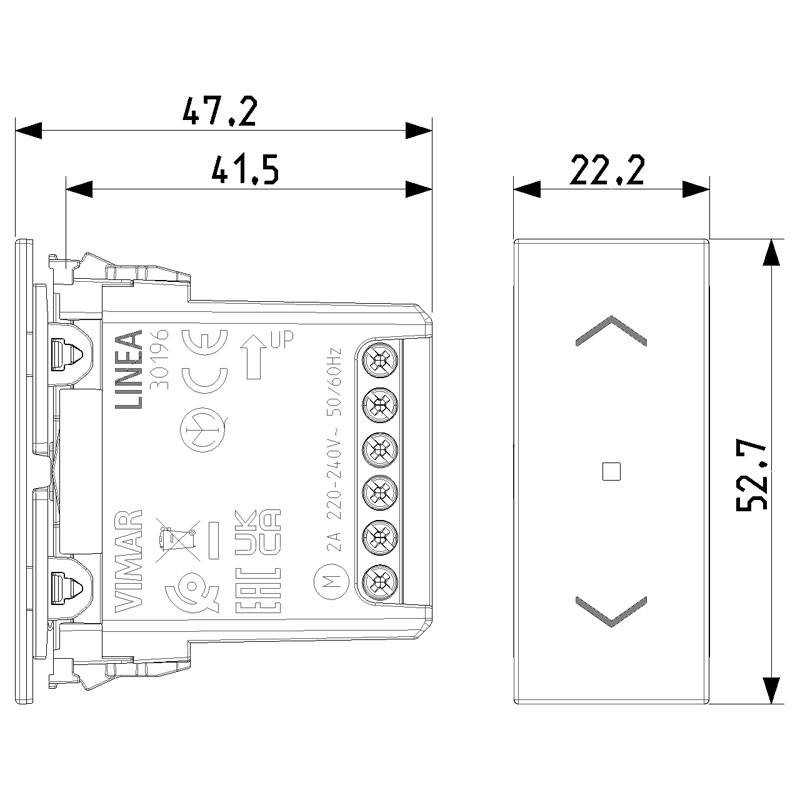

Technical Specifications Quid Roller Shutter Switch Module
| Parameter | Value |
|---|---|
| Rated supply voltage | 220 - 240 V~ 50/60 Hz |
| Power consumption | 13 mA |
| Output type | Relay |
| Load controllable at 220-240 V~ | Motors cos φ 0.6: 2 A (20,000 cycles) |
| Double push-button compatible | Art. 30196.x / 20196 / 19196 / 14196 |
| LED indication | Load status and programming |

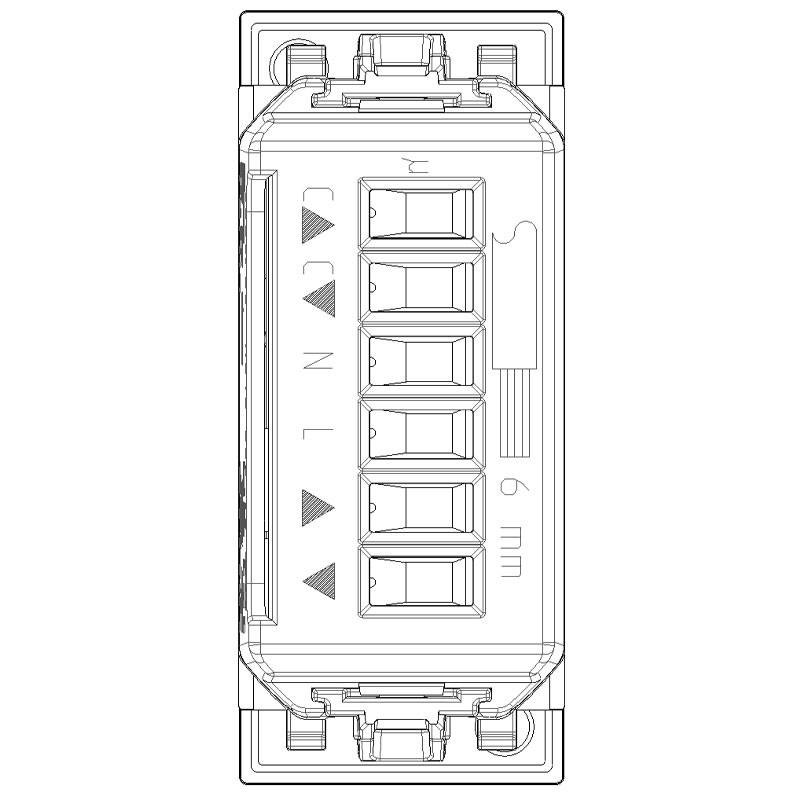

| Relay terminals | UP (↑) and DOWN (↓) |
| Line terminals | L (line), N (neutral) |
| Group control input | C↑ and C↓ to be connected to Art. 30062.x / 20062 / 19062 / 14062 |
| Additional local control input | With art. 03997 |
| Dedicated input (art. 03996) | P↑ and P↓ |
| Maximum number of shutters that can be connected | 20 |
| Maximum cable length per leg | 50 m |
| Feasible functions | - Rolling shutter/awning position adjustment - Slat position adjustment - Memorization/recall of preferred position - Control from interlocked or non-interlocked button |
| Power dissipation (item 03996) | Max 1 W |
| Notes centralized system | Multiple connection requires only one differential and/or circuit breaker |
| Environmental conditions of use | Dry and non-dusty locations, 0 °C ÷ +45 °C |
