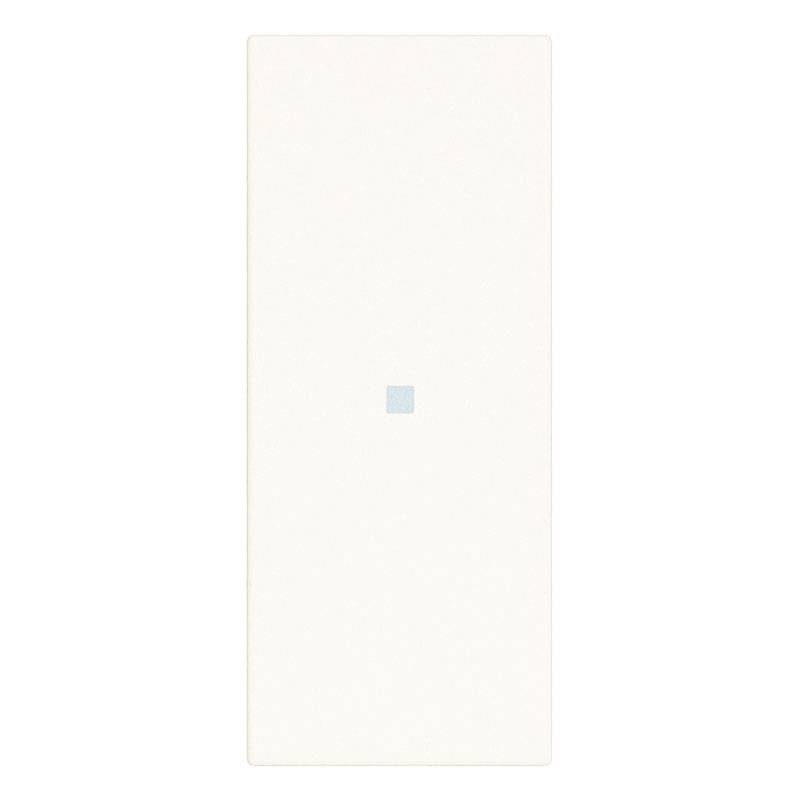

Vimar Linea Axial Switch 1P 10AX 250V Illuminable White 30000A.B
VIW 30000A.B
8007352675001
Vimar Linea Axial Switch is a single-pole switch designed for recessed installations. Illuminable and with replaceable button, it offers maximum convenience and compatibility with lamps up to 100W with integrated ballast, with the following features:
-
Rated current: 10 amps
-
Number of poles: 1
-
Rated voltage 250V
-
Axial and illuminable
-
Mounting type: Recessed
-
Colour: White
-
Material: Halogen-free plastic
-
Connection: Screw terminal
-
Max 100 watts for lamps with integrated ballast
-
Suitable for protection class IP40
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
Illuminable with LED indicator light for aligned and axial switches (code 00943.W).
€7.95
Items Available: 348
Frequently bought together
Vimar Linea switch: elegant design and safe installation
The Vimar Linea axial switch is the perfect choice for those looking for a practical, elegant and safe device. With its replaceable button and illuminable option, it offers maximum versatility and ease of use, making it ideal for residential and commercial installations.
Design and functionality
The Vimar Linea axial switch stands out for its elegant and discreet design, with a matte surface in white color that fits perfectly in any environment.
-
Replaceable button, for greater versatility
-
Illuminable, for optimal visibility even in the dark
Simple and secure installation
-
Recessed mounting system, ideal for electrical panels and residential installations
-
Screw terminal connection, ensuring stable and secure installation
-
Recessed depth of 31.8 mm, compatible with standard boxes
Technical Features
| Feature | Value |
|---|---|
| Rated current | 10A |
| Rated voltage | 250V |
| Number of modules | 1 |
| Drive type | Single button |
| Mounting | Recessed |
| Colour | White |
| Material | Halogen-free plastic |
| Protection class | IP40 |
| Connection type | Screw terminal |

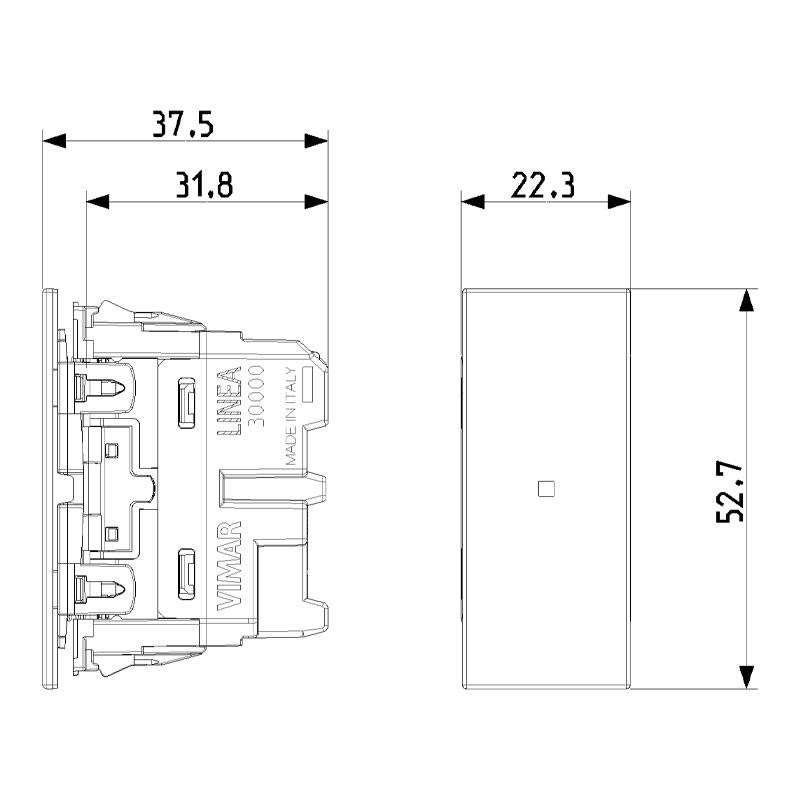

| Width | 22.3 mm |
| Height | 52.8 mm |
| Depth | 37.5 mm |
| Recessed depth | 31.8 mm |
