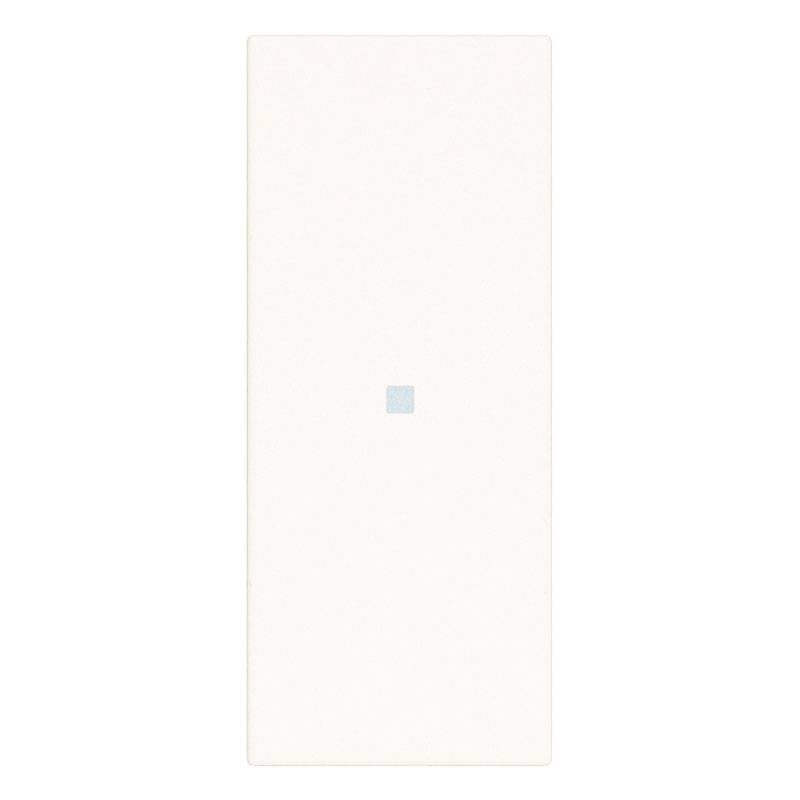

Vimar Linea Axial Intermediate switch 1P 10AX Illuminable 250V White 30012A.B
VIW 30012A.B
8007352682849
Vimar Linea Axial Intermediate switch is a versatile and functional device, ideal for controlling a lighting point from three or more positions. Equipped with a replaceable, illuminable button, it offers easy installation and seamless integration into residential and commercial electrical systems, with the following features:
-
Rated current: 10 amps
-
Number of poles: 1
-
Rated voltage 250V
-
Axial, replaceable and illuminable key
-
Type of mounting: Recessed
-
Color: White
-
Material: Halogen-free plastic
-
Connection: Screw terminal
-
Max 100 watts for lamps with integrated ballast
-
Suitable for protection class IP40
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
Illuminable with LED indicator light for aligned and axial switches (code 00943.W).
€15.77
Items Available: 108
: 43
Frequently bought together
Vimar Linea Intermediate switch: elegant design and safe installation
The Vimar Linea axial intermediate switch is the ideal choice for those who need to control a lighting point from multiple positions, providing maximum convenience, safety and modern design.
Elegant design and advanced functionality
-
Matte surface in white color, which fits any environment
-
Replaceable button, for greater customization
-
Illuminable, for optimal visibility even in the dark
Simple and secure installation
-
Flush-mounted, compatible with standard electrical systems
-
Screw terminal connection, for quick and secure wiring
-
Recessed depth of 35.5 mm, compatible with conventional recessed boxes
Technical Specifications Vimar Linea Intermediate switch
| Feature | Value |
|---|---|
| Rated current | 10AX |
| Rated voltage | 250V |
| Number of modules | 1 |
| Push-button switch | Yes |
| Number of actuation bascules | 1 |
| Mounting | Recessed |
| Material | Halogen-free plastic |
| Surface type | Matte |
| Color | White |
| Protection class | IP40 |
| Switching current for fluorescent lamps | 10AX |
| Connection type | Screw terminal |

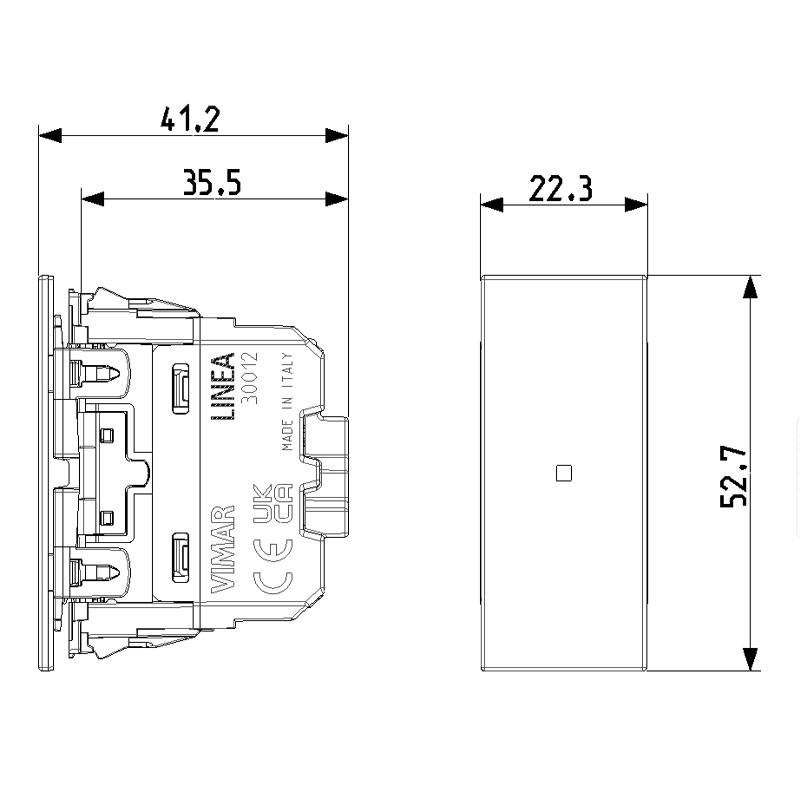

| Dimensions (W x H x D) | 22.3 x 52.8 x 41.2 mm |
| Recessed depth | 35.5 mm |
