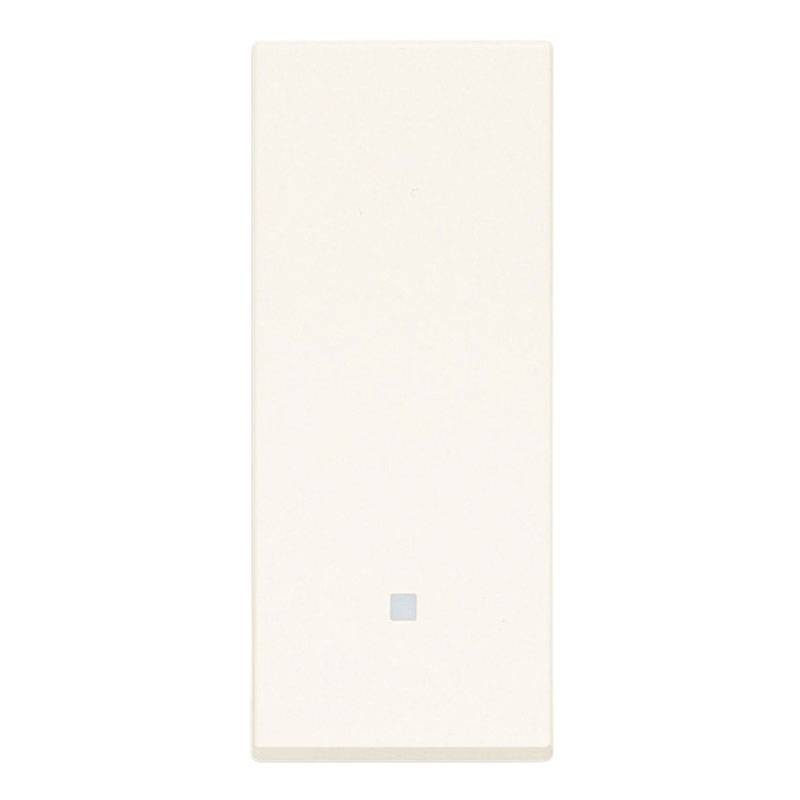

Vimar Line 1P Illuminated tilting Multiway Switch White 30024.B
VIW 30024.B
8007352674288
Vimar Linea 1 Pole 250V Illuminable tilting Multiway Switch, White color, Max 100 W for lamps with integrated ballast (IEC 60669-1:2017).
To be applied only to Vimar Linea series holders codes: 30613/30614/30617.
Illuminable with LED indicator light 250 V 50/60 Hz 0.35 W code 00936.250.W.
€9.62
Items Available: 184
: 3
Frequently bought together
The Multiway Switch is used when we need to light one or more lamps from two different points.
Features:
- Type of control bascule/key
- Material quality thermoplastic material
- RAL code (similar) 9016
- Rated voltage 250 v
- Type of connection screw terminal
- Suitable for protection class IP40.
There are no reviews
Data sheet
- Main Commands: Multiway switches
