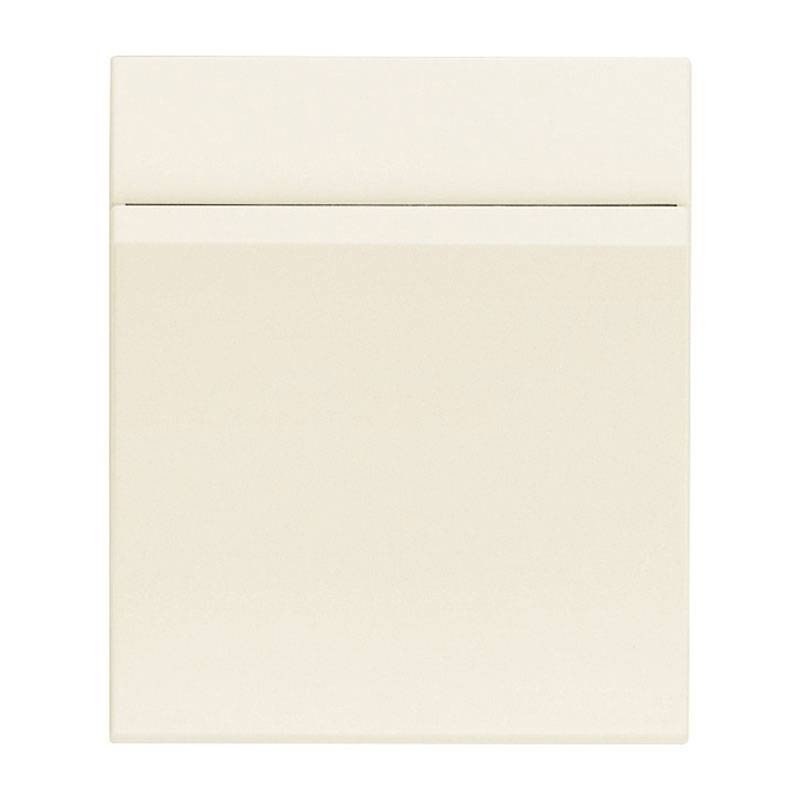

Vimar Linea NFC/RFID Smart Card reader Canvas 30813.C
VIW 30813.C
8007352701021
Vimar Linea smart card reader pocket:
- For NFC/RFID smart card for in-room installation
- IoT technology on Bluetooth technology 5.0 standard for realization of VIEW Wireless mesh system
- 1 NO relay output 16 A 100-240 V~
- 1 configurable input
- LED dark detection with intensity adjustment
- Power supply 100-240 V~ 50/60 Hz
- Canvas colour
- 2 modules
The device is to be installed inside a location (e.g. hotel room, office, etc.) and allows the activation of utilities only if the wireless smart card associated with it is read and recognized.
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
€130.06
Items Available: 3
: 2
Frequently bought together
Using a smartphone or tablet, the pocket can be configured with Bluetooth technology via the View Wireless app and can be supervised remotely by installing gateway 30807.x-20597-19597-16497-14597. And capable of communicating with the 30812.x-20462-19462-14462 out-of-door reader (if associated during configuration) to manage access to the same room and provide enhanced security through the Relay Crossing option.
Features:
- Supply voltage: 100-240 V~, 50/60 Hz
- Max power consumption from mains: 1.1 W
- White LED pocket illumination for detection in the dark
- RFID technology @ 13.56 MHz, Mifare Standard ISO14443A
- Frequency range: 13.553-13.567 MHz
- Transmitted RF power: < 60 dB A/m

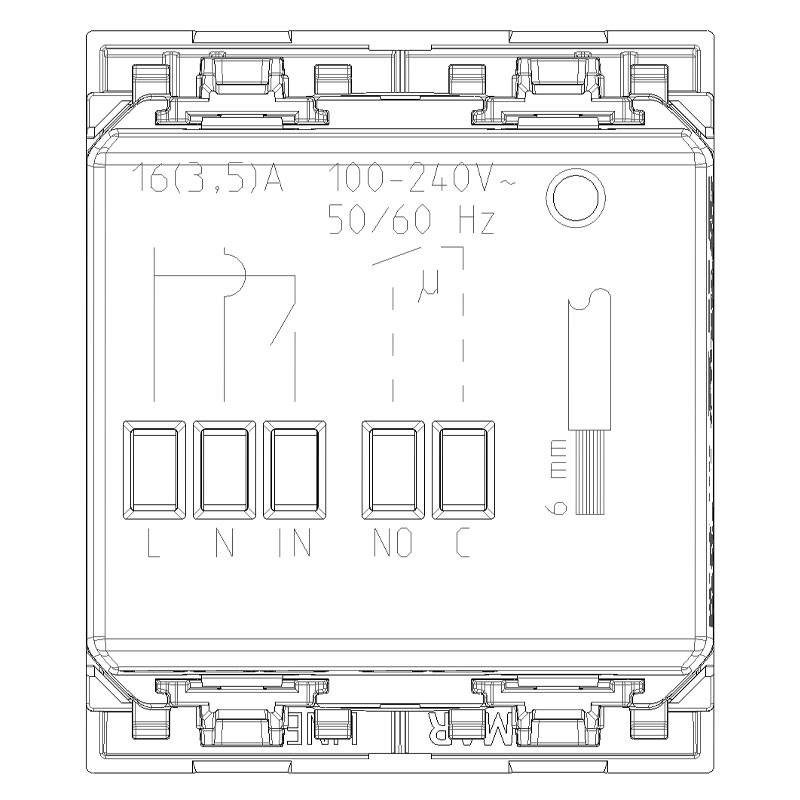

- Terminals: - L and N for power supply - Relay output 16 A 240 V~ C-NO (NO SELV) - IN input (for two-pole switch 20015.0-19015.0-14015.0 + XX026.DND+ 00936.250.X) for DND (Do Not Disturb) signaling for front LED activation of reader out-of-door 30812.x-20462-19462-14462 in case of relay crossing
- 1 configuration button
- Operating temperature: -10 °C - +45 °C (indoor use)
- Degree of protection: IP20
- Configuration by App View Wireless for Bluetooth technology system
- Frequency range: 2400-2483.5 MHz
- Transmitted RF power: < 100mW (20dBm)
The reader can operate in two modes:
- Recognition of the smart card inserted in the pocket activates the internal relay. Upon disarming the card, the relay goes OFF after a time that can be set during configuration
- If the pocket is associated with an out-of-door reader and the Relay Crossing option is enabled, upon insertion of the card into the pocket the reader relay remains ON, while upon removal the relay goes OFF with time that can be set during configuration. In this case, door opening will be carried out by the pocket relay ensuring a higher level of security.
