Vimar Linea IoT Smart RFID card reader Black 30812.G

Vimar
Vimar
VIW 30812.G 8007352675346

Vimar Linea out-of-door RFID smart card reader:



  • Card configuration using VIEW Wireless App standard Bluetooth technology
  • IoT technology on standard Bluetooth technology 5.0 for realization of VIEW Wireless mesh system
  • 1 NO relay output 16 A 100-240 V~
  • 1 DND input
  • LED with intensity adjustment
  • Power supply 100-240 V~ 50/60 Hz
  • Colour Black
  • 2 modules



The device is to be installed outside and near a doorway (e.g. hotel room, office, etc.) and allows access only if the associated smart card is read and recognized or via smartphone/tablet with View Key app.



To be applied only to Vimar Linea series frames codes: 30613/30614/30617.

  • bluetooth
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Linea IoT Smart RFID card reader Black 30812.G
    €218.99
    €218.99

    €218.99
    Tax included
    Calculate shipping cost
    Items Available: 3
    Further availability of the manufacturer
    €218.99

    Buy it within and receive it from Monday, 22 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Using a smartphone or tablet, the reader can be configured with Bluetooth technology via the View Wireless app and can be supervised remotely by installing gateway 30807.x-20597-19597-16497-14597. And can communicate with the 30813.x-20467-19467-14467 pocket (associated during configuration) to manage utilities in the same room.



    Features:

    • Supply voltage: 100-240 V~, 50/60 Hz
    • Max power consumption from the mains: 1.1 W
    • RFID technology @ 13.56 MHz, Mifare Standard ISO14443A
    • Frequency range: 13.553-13.567 MHz
    • Transmitted RF power: < 60 dB A/m

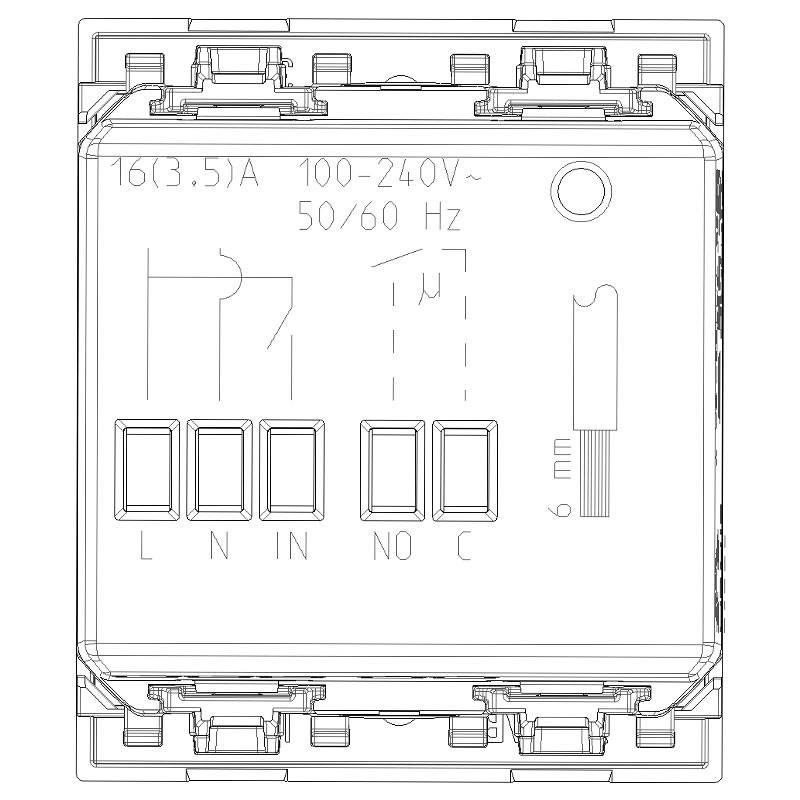

    • Terminals: - L and N for power supply -- Relay output 16 A 240 V~ C-NO (NO SELV) -- Input for DND (Do Not Disturb) signaling via front LED (not isolated)
    • 1 configuration button
    • RGB LED for device status signaling
    • Operating temperature: -5 °C - +45 °C (indoor use)
    • Degree of protection: IP20
    • Configuration by View Wireless app for Bluetooth technology system
    • Frequency range: 2400-2483.5 MHz
    • Transmitted RF power: < 100mW (20dBm)



    The reader can operate in multiple modes:

    • Recognition of the smart card or a virtual key through the View Key app triggers the opening of the door i.e. switching the relay of in a pulse mode (minimum value 1 s, default value 3 s)
    • If the Relay Crossing option is enabled, which provides a higher level of security, the door opening can be performed: - by the relay of the pocket xx467; - by the relay of the module 03981; - by the relay of the IoT connected actuator xx593 and 02692; - by the relay of the IoT connected radar sensor xx179.
