Vimar Linea Bluetooth Low Energy Control 30504
VIW 30504
8007352694156

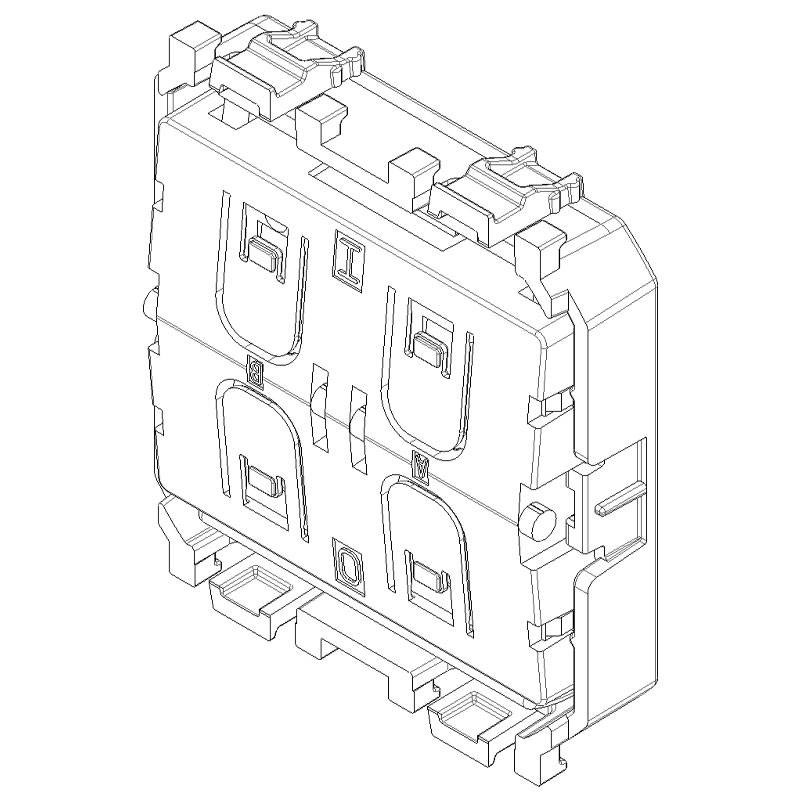

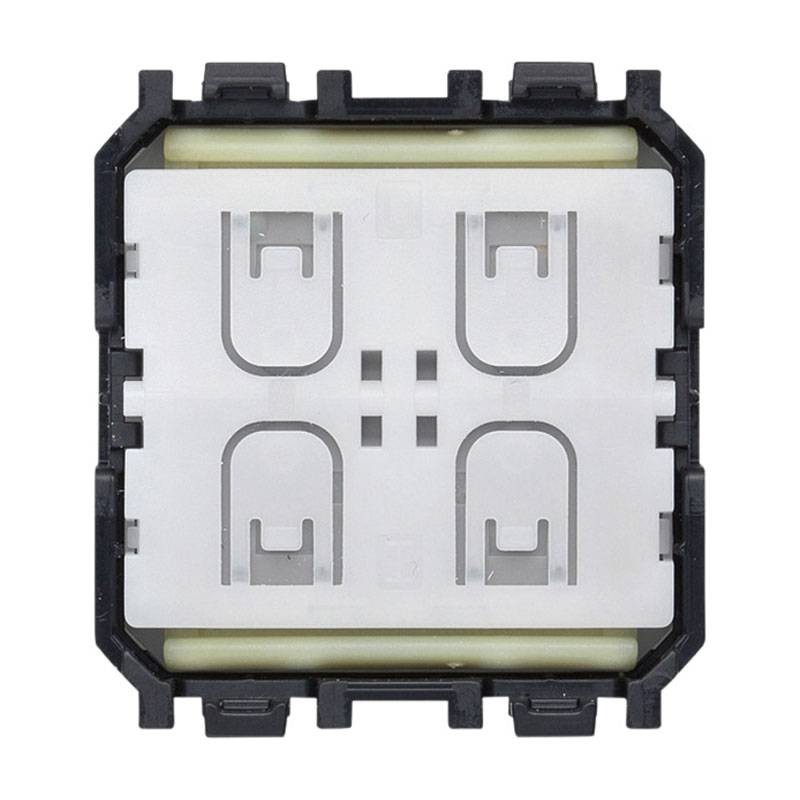

Vimar Linea Bluetooth Low Energy Command:
- Four-button flat control with 2.4 GHz radio frequency transmitter
- Bluetooth Low Energy standard
- Energy harvesting power supplied by built-in electrodynamic generator
- 2 modules
To be completed with dedicated buttons 31506.B - 31506.2B - 31506.G - 31506.2.G - 31506.C - 31506.2.C and frames 30507.G - 30507.B.
Compatible with Casambi and Xicato.
€49.35
Items Available: 1
Frequently bought together
Bluetooth technology Low Energy control operates at 2.4GHz and can be paired with connected View Wireless system devices to control an actuator or activate a scenario.
At the application level, it is also compatible with BLE receivers using Casambi protocol/technology and Bluetooth technology Open Standard from the XICATO Controls system that display the Works with XICATO Controls or Powered by XICATO Controls logo. Refer to the respective sites of the two manufacturers (www.casambi.com and www.xicato.com) for a list of lighting companies that adopt this technology or contact the Vimar sales network.
Features:
- Rated supply voltage (Vn): no power supply required
- Max transmitted RF power: 0.4dBm / 1.1mW
- Frequency range (min/max): 2402 MHz / 2480 MHz
- Communication standard: Bluetooth technology Low Energy (BLE)
- Range: 75 m in free field; this value is reduced depending on the environment and installation mode (presence of metal plates, concrete, walls and/or metal walls)
- Default usable radio channels: CH 37 / 38 / 39 (2402 MHz / 2426 MHz / 2480 MHz)
- Auxiliary interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 and 3)
- Device identification: 48-bit single device ID (factory programming)
- Security: AES128 (CBC mode) with sequential code
- Installation: flush-mounted or wall-mounted. Wall installation, thanks to the special bracket (item 30507.x), can be done on materials such as, for example, wood, masonry, etc.
- Operating temperature: -25/+65 °C (for indoor use)
- Configurable in conjunction with View Wireless system devices using the View Wireless app
CAUTION: When pressing the key, a mechanical click must be heard for the radio command to be transmitted. Keys 31506 or 31506.2, appropriately docked to the flat two-button rocker control, provide the radio command point. The buttons can be specially customized with the symbols illustrated in the Vimar catalogs.
There are no reviews
Data sheet
- Smart System: Radio controls
