Vimar Linea Quid roller shutter switch Hemp 30196.C

Vimar
Vimar
VIW 30196.C 8007352695672

Vimar Quid Electronic Roller Shutter Switch, centralized electronic switch for roller shutters, blinds and awnings with slat orientation and position memory function. Convenience and control from a single point

  • Electronic management of rolling shutters/shutters/awnings

  • Slat orientation control

  • Favorite position memorization

  • Centralizable: multiple control from a single point

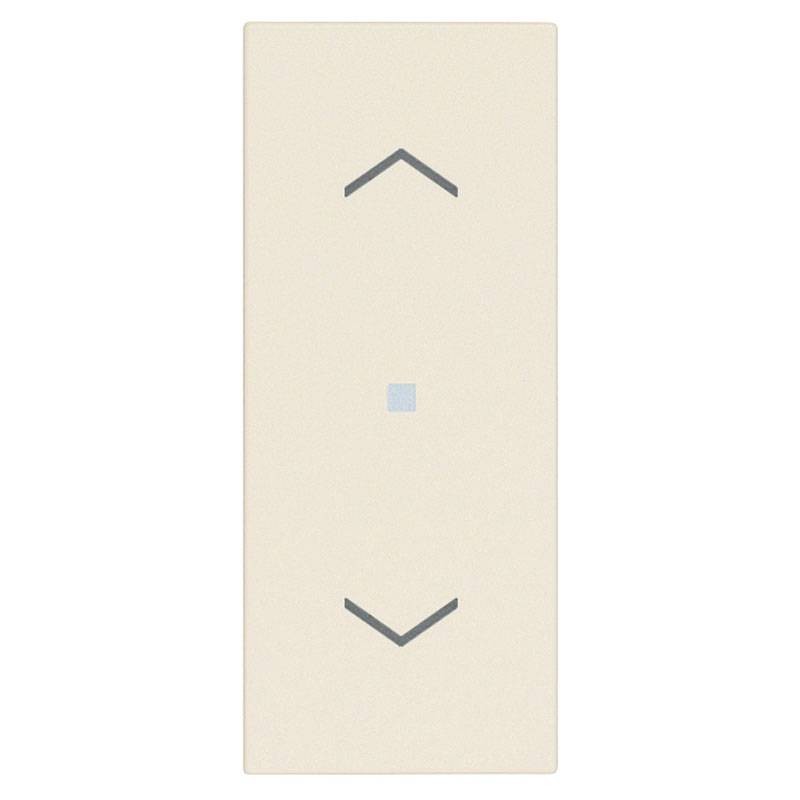

  • Color Hemp Quid Series

  • Relay outputs cos 0.6 2 amps

  • Supply voltage: 220-240 V~ 50/60 Hz

  • 1 Module

  • Compatible with frames 30613 - 30614 - 30617

Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Linea Quid roller shutter switch Hemp 30196.C
€45.79
€45.79

€45.79
Tax included
Calculate shipping cost
Items Available: 29
Further availability of the manufacturer
€45.79

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Vimar Quid Electronic Roller Shutter Switch: Intelligent and centralized control

The Vimar Quid 30196.xxx rolling shutter switch is designed to control electric motors for rolling shutters, awnings or blinds, while also allowing slat orientation. Thanks to the preferred position memorization function, it allows for personalized and intuitive use: a simple touch is all it takes to return the shutter to the saved position, regardless of the current position.

The device has relay outputs for motors with cos 0.6 up to 2 A and can be centrally connected with other devices to control multiple points from a single position. This feature is ideal in domestic and commercial environments where simultaneous and coordinated management of solar shading is required.

Aesthetics and compatibility

The device fits perfectly into the Vimar Quid range, with a Hemp finish that can be combined with the other components of the same line. Its sober and contemporary aesthetics can be discreetly integrated into any residential or business context.

Applications

  • Management of motors for electric shutters

  • Control of adjustable shutters

  • Use on motorized blinds

  • Centralized home automation systems

  • Residential and professional environments

Compatibility

  • Vimar Quid system

  • Installable on Quid mounts and plates

  • Centralized control with other Vimar devices

Technical Specifications Quid Roller Shutter Switch Module

Parameter Value
Rated supply voltage 220 - 240 V~ 50/60 Hz
Power consumption 13 mA
Output type Relay
Load controllable at 220-240 V~ Motors cos φ 0.6: 2 A (20,000 cycles)
Double push-button compatible Art. 30196.x / 20196 / 19196 / 14196
LED indication Load status and programming

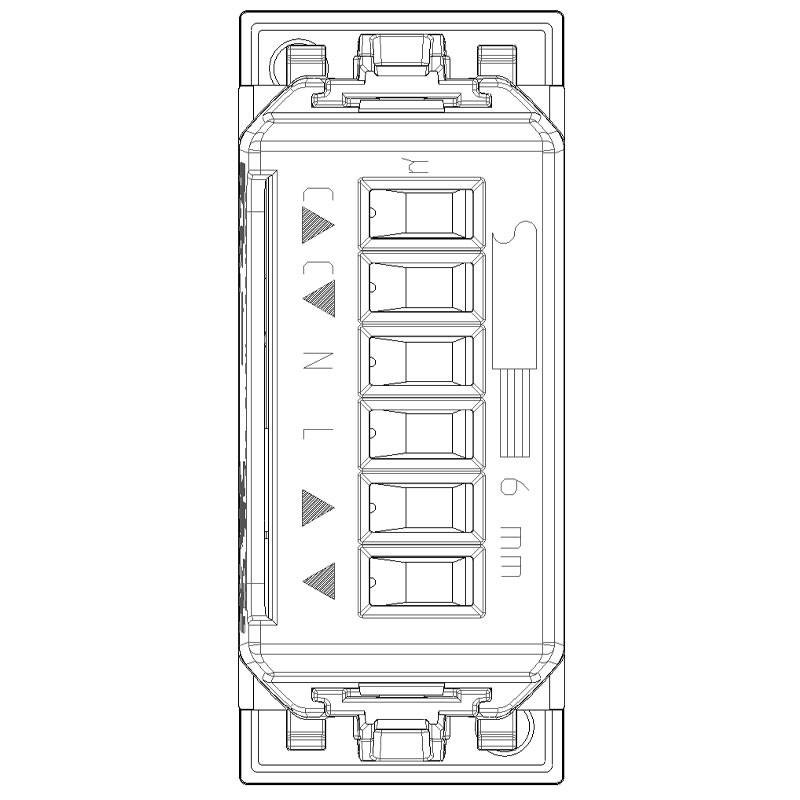

Relay terminals UP (↑) and DOWN (↓)
Line terminals L (line), N (neutral)
Group control input C↑ and C↓ to be connected to Art. 30062.x / 20062 / 19062 / 14062
Additional local control input With art. 03997
Dedicated input (art. 03996) P↑ and P↓
Maximum number of shutters that can be connected 20
Maximum cable length per leg 50 m
Feasible functions - Rolling shutter/awning position adjustment
- Slat position adjustment
- Memorization/recall of preferred position
- Control from interlocked or non-interlocked button
Power dissipation (item 03996) Max 1 W
Notes centralized system Multiple connection requires only one differential and/or circuit breaker
Environmental conditions of use Dry and non-dusty locations, 0 °C ÷ +45 °C
