Vimar Linea Axial Pushbutton 1P 10A Illuminable Black 30008A.G
VIW 30008A.G
8007352682917
Vimar Linea Axial Pushbutton is an elegant and functional device, ideal for residential and commercial electrical systems. Illuminable and with replaceable button, it provides intuitive and safe operation, with the following features:
-
Rated current: 10A
-
Rated voltage: 250V
-
Number of poles: 1P single-pole
-
Number of modules: 1
-
Replaceable and illuminable key
-
Mounting type: Recessed
-
Material: Halogen-free thermoplastic
-
Protection class: IP40
-
Color: Black
To be mounted only on Vimar Linea series frames codes: 30613/30614/30617.
Illuminable with LED indicator light for aligned and axial switches (code 00943.W).
€8.85
Items Available: 268
Frequently bought together
Vimar Linea Pushbutton: modern design and safe installation
The Vimar Linea Axial Pushbutton is a practical, safe solution with a modern design. With its illuminable function and replaceable button, it offers versatility and reliability for any environment.
Modern design and advanced functionality
-

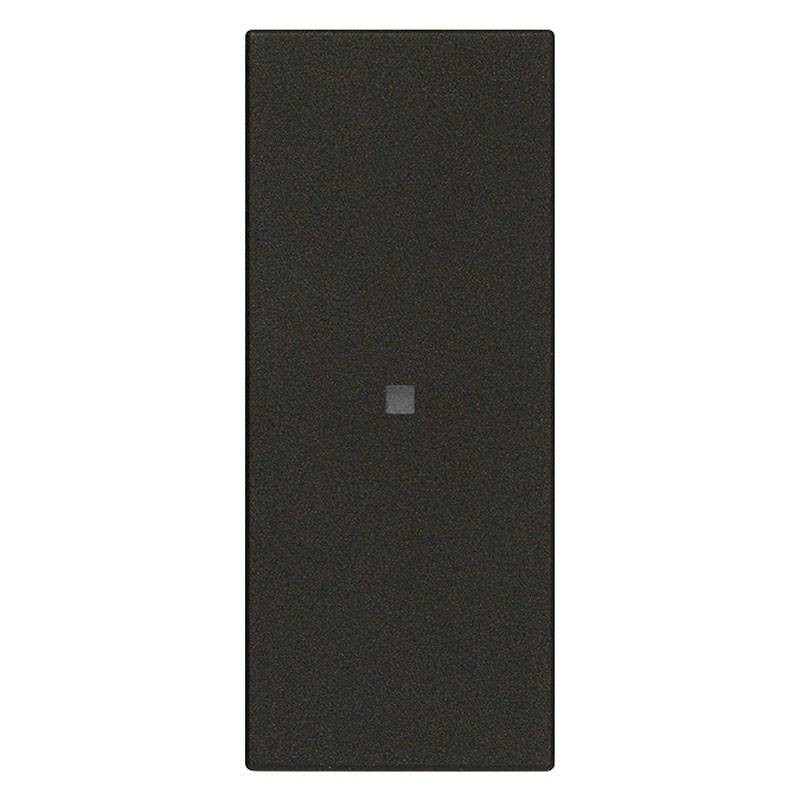

Black matte surface, suitable for any environment
-
Replaceable key, to customize the installation
-
Illuminable, for enhanced visibility even in low-light conditions
Simple and secure installation
-
Flush-mounted, compatible with standard installations
-
Screw terminal connection, for quick and reliable wiring
-
Compatible with conventional flush-mounted boxes
Technical Specifications Vimar Linea Pushbutton
| Feature | Value |
|---|---|
| Type | Single-pole pushbutton (1P) NO |
| Number of NO contacts | 1 |
| Number of actuation bascules | 1 |
| Rated current | 10A |
| Rated voltage | 250V |
| Number of modules | 1 |
| Mounting | Recessed |
| Material | Halogen-free plastic |
| Surface type | Matte |
| Color | Black |
| Protection class | IP40 |
| Connection type | Screw terminal |

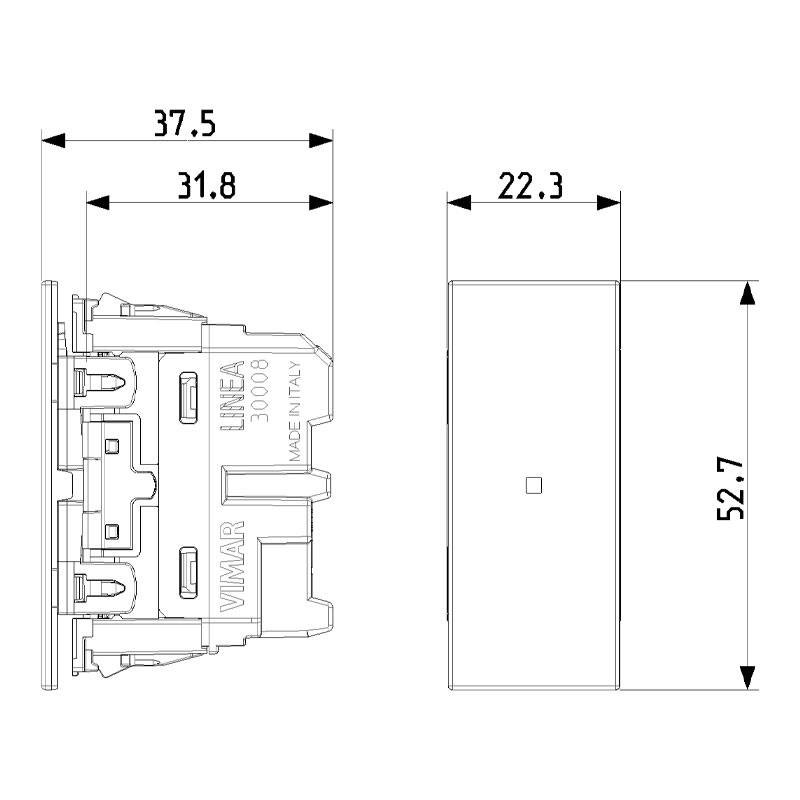

| Dimensions (W x H x D) | 22.3 x 52.8 x 37.5 mm |
There are no reviews
Data sheet
- Main Commands: Pushbuttons
