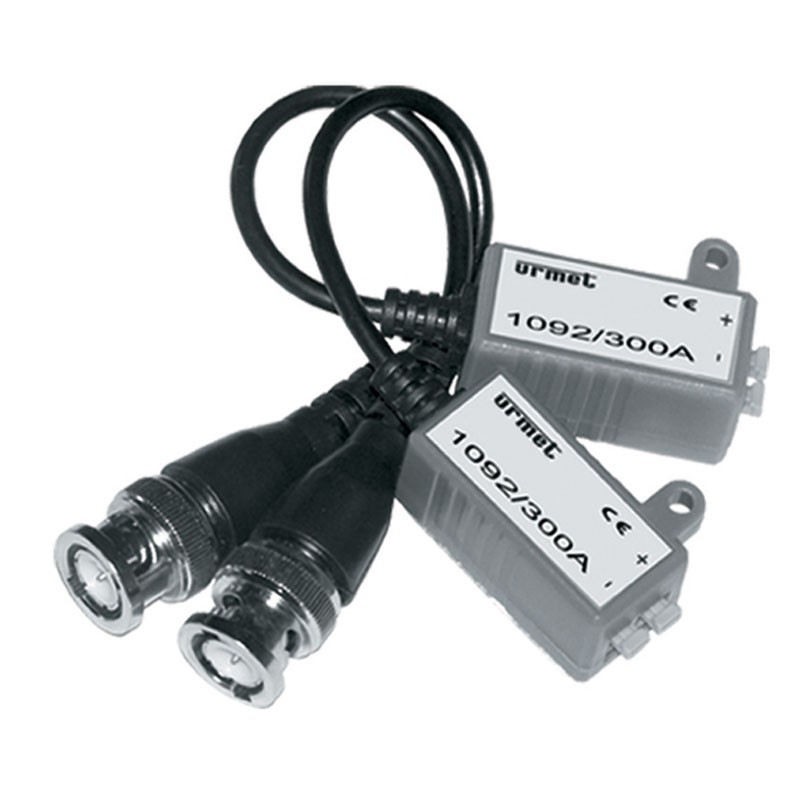

Urmet Pair of Passive Video Balun TX/RX 1092/300A
UTD 1092/300A
Urmet Video Balun TX/RX pair for transmission of video signals over UTP CAT5 twisted cables, ensuring high quality, long range and easy installation, with the following features:
-
Transmission over CAT5: Use of UTP cables for distances up to 3000 meters
-
High capacity: A single CAT5 cable supports up to 4 video signals simultaneously
-
Advanced immunity: Resistant to atmospheric discharge and electromagnetic interference
-
Universal compatibility: Ideal solution for any type of video surveillance system
-
Economical and efficient: Reduced cabling costs and simplified installation
-
Passive technology: No power supply needed, simplifying configuration
€13.43
Items Available: 128
: 21
Frequently bought together
Passive TX/RX Video Balun Pair Urmet
Efficiency in signal transmission
The Urmet 1092/300 TX/RX Video Balun Pair enables video signals to be transmitted over long distances using UTP CAT5 cables, eliminating the need for coaxial cables. This technology ensures stable, lossless transmission up to 3000 meters.
Versatility of UTP CAT5 cables
By using CAT5 twisted cables, up to 4 video signals can be transmitted simultaneously, making maximum use of the 4 pairs in the cable. This feature optimizes costs and simplifies cabling, making it ideal for installations with multiple cameras.
Immunity to interference
Video Balun devices offer enhanced protection against atmospheric discharges and electromagnetic inductions, ensuring reliable performance even in environments with a high risk of interference.
Ease and speed of installation
Installation of passive Video Baluns is quick and easy, thanks to their compact and intuitive design. The ability to use readily available UTP cables further reduces costs and setup time.
Universal applications
Suitable for all types of video surveillance installations, Urmet 1092/300 Video Baluns are ideal for both residential and commercial settings, ensuring high-quality video transmission over long distances without complications.
Main Features
| Feature | Value |
|---|---|
| Video input/output | BNC male |
| UTP cable input/output | Terminal block |
| Recommended cable type | 24 AWG UTP CAT5 or higher |
| Input impedance | 100 Ω ± 20%, DC loop resistance 18 Ω/100 m |
| Operating temperature range | -10/+45 degrees |
| Storage temperature | -30/+60 degrees |
| Humidity | 0/95% |
| Dimensions | 30x15x14mm (WxHxD) |
Prodotto discreto con un prezzo buono.
Ottimo prodotto ,professionale semplicissimo da installare.
Data sheet
- Type: Balun
