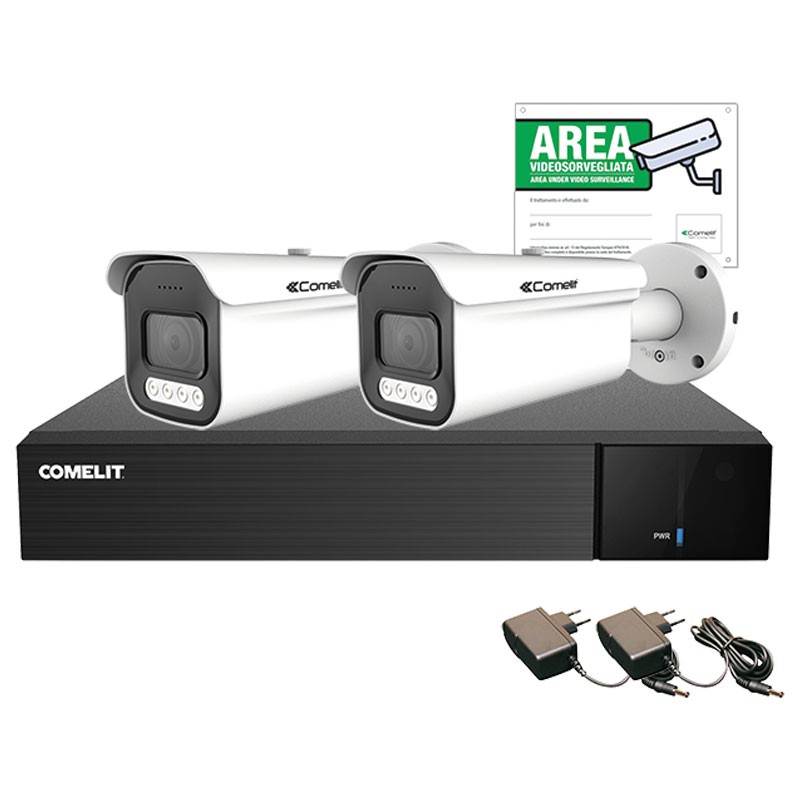

Comelit video surveillance kit reliable protection and superior quality
The Comelit Video Surveillance Kit is the ideal solution for those who want an efficient and easy-to-install security system and offers complete control and sharp images both day and night.
Perfect for homes, offices, businesses and small industrial facilities, this kit provides continuous protection and superior video quality. Compatibility with various video standards makes the system extremely flexible and upgradeable.
Technical specifications of the kit components

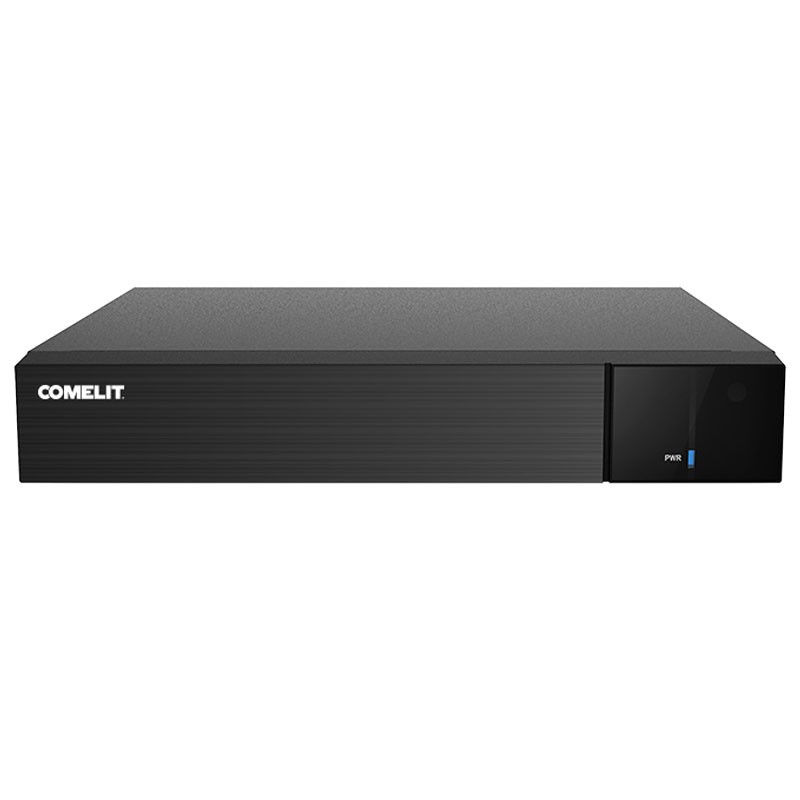

Digital video recorder intelligent compression, professional security
Comelit's digital video recorder is the perfect choice for video surveillance systems that require high performance and maximum reliability, supporting a wide variety of cameras while ensuring sharp images up to 5MP.
Equipped with a 1TB hard disk already installed, the device supports a capacity of up to 10TB, ideal for long recording periods. Efficient H.264/H.265 video compression saves space while maintaining high image quality.
It supports motion detection functions over 396 zones and configuration of 4 privacy zones, enhancing room monitoring. In addition, it can handle up to 5 connected users simultaneously, ideal for security teams.
With a fanless design and compact size, the video recorder is quiet and suitable for any environment. The metal casing and black color ensure durability even under demanding operating conditions.
Technical Specifications Comelit Video Recorder
Main Features
| Parameter |
Value |
| Video Inputs |
8 (BNC) 5MP/4MP/1080P/720P/WD1 + 4 (IP) 5MP |
| Max IP |
0 (BNC) + 12 (IP) 5MP |
| Main video outputs |
1 (VGA), 1 (HDMI), 1920x1080 |
| Spot video outputs |
1 (BNC) |
| Audio inputs/outputs |
1 / 1 |
| Video compression |
H.264, H.265 |
| Frame rate in playback/recording |
BNC: 5MP Lite (1280x1936) @10fps; 4MP Lite (1280x1440)/1080P @15fps; IP @30fps |
| Included hard drive capacity |
1TB (expandable up to 10TB) |
Software/Firmware Features
| Parameter |
Value |
| Recording methods |
Automatic, manual, scheduled, event |
| Recording type |
Dual streaming |
| Maximum no. of live channels viewable |
8 |
| Supported protocols |
DHCP, HTTP, HTTPS, ONVIF |
| IP assignment |
DHCP, manual |
| Max. bandwidth |
32 Mbps |
| Remote control by browser |
IE/Chrome/Edge/Firefox/Safari |
| Remote control by software |
Comelit CCTV Manager |
| Remote control from mobile |
Comelit CCTV APP |
Software/Hardware Features
| Parameter |
Value |
| Simultaneously connected users |
5 |
| Main functions |
Video analysis (with dedicated cameras) |
| Motion detection |
396 configurable zones |
| Privacy zones |
4 |
| Connections/Ports |
1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 1xRS485 |
| Fanless |
Yes |
General Data
| Parameter |
Value |
| Max. power consumption |
8 W |
| Supply voltage |
12 VDC |
| Height |
42 mm |
| Width |
255 mm |
| Depth |
222 mm |
| Coating material type |
Metallic |
| Product color |
Black |
| Operating temperature |
-10/+50 degrees |
| Operating humidity |
25/90% RH |
| Included Accessories |
Power Supply, Mouse |

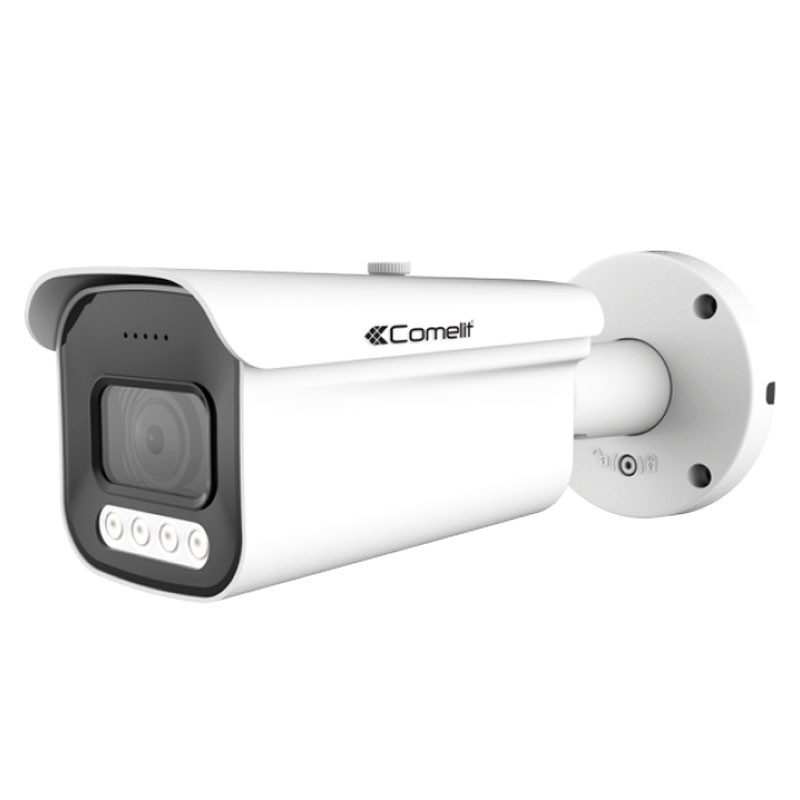

Comelit bullet camera video quality motorized varifocal optics
The Comelit bullet camera is designed to deliver the highest quality images and withstand the most challenging environmental conditions. With its 5MP resolution, it ensures sharp and detailed footage both day and night.
The ethroilluminated sensor ensures excellent performance even in low-light conditions. The motorized 2.7-13.5mm lens allows the field of view to be adjusted remotely, easily adapting to specific monitoring needs, with horizontal viewing angles from 103 to 32 degrees.
Made of rugged die-cast aluminum and IP67 certified, it is ideal for outdoor installations, resisting rain and dust. The compact bullet design facilitates installation, thanks in part to 3-axis movement.
Key features include 120dB Wide Dynamic Range (WDR) for perfect images even in backlight, 3DNR noise reduction, automatic or manual white balance management, mirror effects, OSD titling, and remote control via UTC protocol via coaxial cable.
Technical Specifications Comelit Camera
Main Features.
| Parameter |
Value |
| Camera Sensor |
1/2.8'' CMOS Sony Starvis Technology back-illuminated pixels |
| Lens Type |
Motorized |
| Varifocal lens size |
2.7/13.5 mm |
| Horizontal field of view |
103/32 degrees |
| Vertical field of view |
54/18 degrees |
| Diagonal field of view |
124° ÷ 33° |
| Sensitivity |
0.1 (color), 0.01 (B/W), 0 (B/W, IR LED ON) |
| Signal-to-noise ratio |
>50 dB (AGC OFF) |
| IR filter |
Mechanical |
| Video Output |
AHD/TVI/CVI CVBS (960H) |
| Video Resolution |
1920x1080 (Full-HD 1080p), 2592x1944 (5MP), 4MP |
Features
| Parameter |
Value |
| Camera control |
Via coaxial cable using UTC protocol |
| Compensation against light (BLC) |
BLC |
| Digital effects |
Mirror (Horizontal, Vertical, 180° Rotation), OSD |
| Wide Dynamic Range (WDR) |
WDR (120dB) |
| DNR Control |
3DNR |
| White balance adjustment |
Automatic, Manual |
| Camera titration |
Yes |
Hardware Features
| Parameter |
Value |
| IR LED illumination distance |
4 LEDs 42 µ / 40 m (Smart IR) |
| Distance max coaxial cable RG59 / UTP |
300 m / 100 m |
| IP Rating |
IP67 |
| 3-axis camera movement |
Yes |
| Analog video output |
CVBS (BNC - 1 Vpp/75 ohm) |
General Data
| Parameter |
Value |
| Supply voltage |
12VDC |
| Maximum power consumption |
9 W |
| Power supply type |
External power supply |
| Height |
91 mm |
| Width |
93 mm |
| Depth |
263 mm |
| Weight |
1000 g |
| Coating material type |
Aluminum |
| Case type |
Bullet |
| Product color |
White |
| Operating temperature |
-10/+50 degrees |
| Operating humidity |
0/95% RH |
Compact, reliable and versatile 12V plug-in power supply unit
This 12V plug-in power supply is the ideal solution for providing safe and continuous power to a wide range of electronic devices. The compact size makes it perfect for applications where space is limited without sacrificing high performance.
It provides a continuous and stable 12V voltage with a maximum current of 0.7A, ideal for devices such as video surveillance cameras, modems, routers, small electronics and automation systems. The jack connector ensures easy and secure connection.
The power supply is designed with protection systems against overload, overvoltage and short circuit, increasing the safety and durability of both the power supply and the powered devices. Perfect for powering CCTV cameras, network devices, small LED lighting fixtures and many other electronic equipment requiring 12VDC.
Video Surveillance Area Sign Compliant and High Visibility Signage
The "Video Surveillance Area" sign is an essential element for any video surveillance installation that complies with current privacy regulations. It allows for clear notification of the presence of cameras, contributing to the safety and security of monitored spaces.
Made of durable steel and painted white, the sign is designed to ensure durability even in outdoor conditions.
Measuring 150x200 mm, the sign provides a highly visible surface without being bulky. It is ideal for installation in public, private, commercial or industrial settings, both indoors and outdoors.
Perfect for apartment buildings, offices, stores, warehouses, parking lots, corporate areas and any environment with video surveillance systems.
