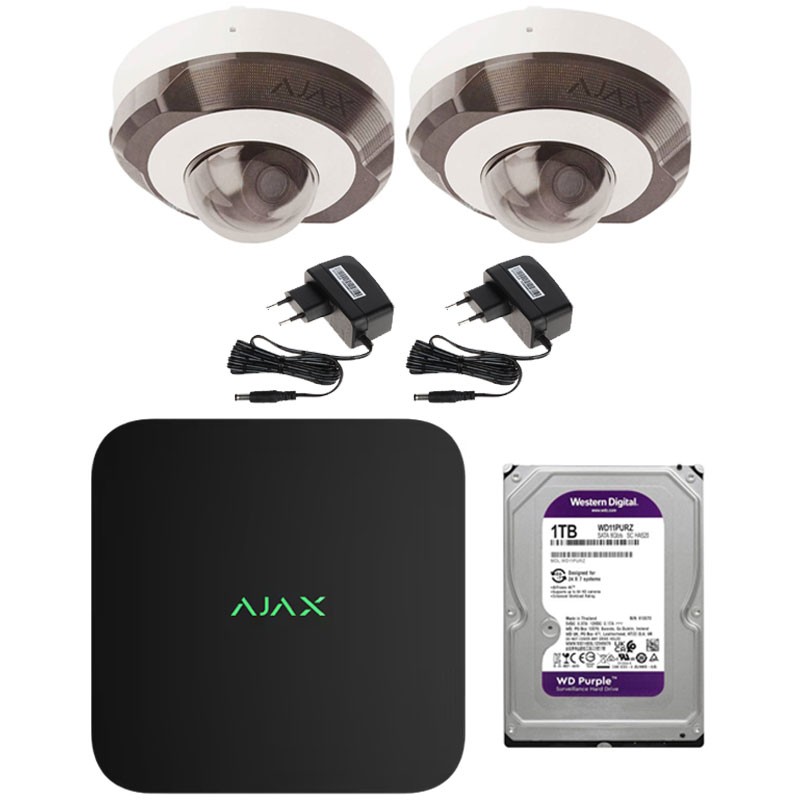

Specifications of parts in the Kit:

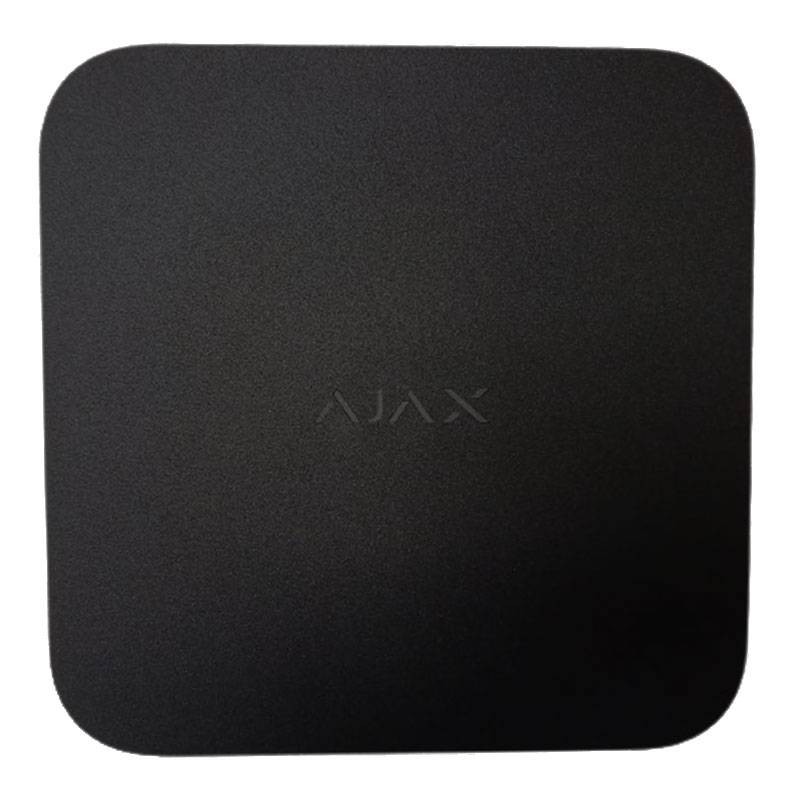

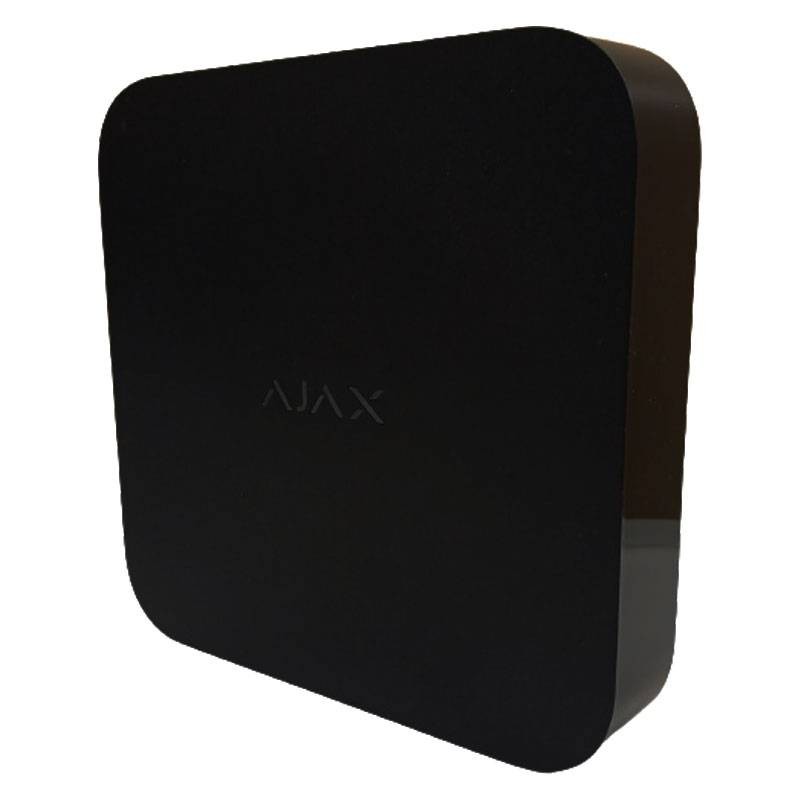

Ajax 8-channel NVR network video recorder, IP system:



Main features:

• Up to 4K/8MP resolution (25/30 FPS)
• IP cameras: ONVIF (S/T profile) RTSP
• Storage: hard drive with a capacity of up to and including 1 TB
• Storage options: hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5 format)
• Decoding formats: H.265-H.264
• Bandwidth: up to 100 Mbps



Black colouring compatible with Ajax intrusion control panels models:

• Hub
• Hub Plus
• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• Hub Hybrid (2G)
• Hub Hybrid (4G)


  Product overview:
• NVR represents the synergy between video surveillance and Ajax systems. Experience unprecedented speed of system response, ensuring instant access to the video archive wherever you are. Broad compatibility makes almost any IP camera integrable with intrusion protection and automation. NVR represents the legacy of a professional security system trusted by millions of users worldwide.



NDAA secure recording:

• All data is securely stored within the European Union and is fully compliant with European data protection standards. Ajax NVR is NDAA-compliant and every component is sourced from trusted, U.S. government-approved manufacturers. It is versatile and can be installed in any location. In addition, Ajax NVR has undergone independent cybersecurity testing to ensure its security and reliability



Fast and encrypted Jetsparrow data transfer:

• Ajax JetSparrow is the heart and brain of Ajax video. It is responsible for the transmission, storage and management of video
• We developed JetSparrow: our proprietary video streaming technology, to provide an ultra-fast video management experience. Thanks to this streaming technology, browsing the local hard disk archive is as smooth as browsing the cloud archive. As a result, browsing in the archive becomes extremely efficient and live viewing starts without any delay
• Peer-to-peer transmission
• TLS encryption
• High stability



Instant video-verification of alarms:

• With system notifications in the app, you can easily navigate to the specific camera and view the incident. This makes the app a complete security and video surveillance solution
• Set up a scenario in which Ajax detectors activate specific cameras and start video recording. Configure video settings to immediately receive high-resolution visual alarm confirmations



Integrated motion detection:

• Optimize your video archive by setting up pixel motion detection. Define specific zones to ensure that recordings are triggered only when motion occurs in the selected area. This saves hard disk space and simplifies navigation through the archive



Key benefits:

• Increased archive security
• Restricted access to visual data
• Enhanced account protection
• End-user controlled system



Easy installation and configuration:

• Connecting your NVR has never been easier. No need to log in to each device or manually add users. Everything is seamlessly configured via the app, whether you are onsite or accessing remotely. Monitor system integrity, including remaining HDD space, temperature, CPU load, RAM usage, etc.



Features:

• 8-channel NVR model
• With a resolution of up to 4K (25/30 FPS)
• IP cameras: ONVIF (Profile S/T) - RTSP

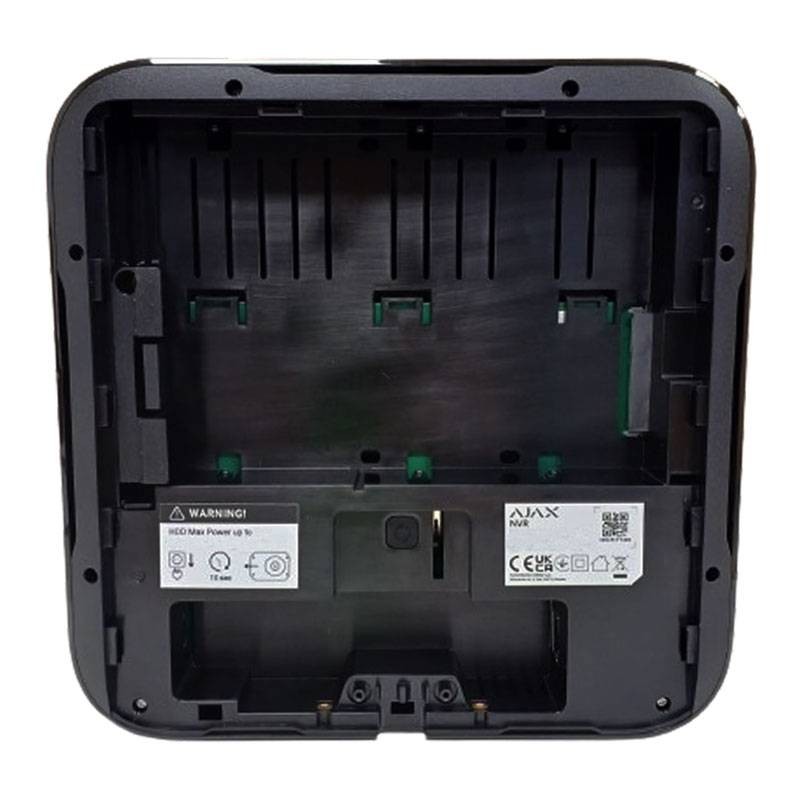

• Storage: hard disk with a capacity of up to 16 TB (SATA connectivity, 3.5" format), Hard disk is not included
• Decoding formats: H.265 - H.264
• Bandwidth up to 100 Mbps
• Operating voltage of the device is 110240 V~
• NVR is designed for indoor installation



Communication channels:

• Ethernet up to 100 Mbps
• Bluetooth: BLE frequency bands: 2.4002.4835 GHz To establish an Ethernet connection
• Radio signal strength 2.5 mW (100 mW limit)



Motion detection:

• NVR has built-in software to detect motion in the image. The image is analyzed using NVR or camera algorithms-you can switch between them



Video management system in the app:

• Videowall that combines images from all connected cameras
• Event filters
• History with smooth preview



Visual verification for Ajax alarms:

• NVR allows you to set up a scenario in which Ajax detectors trigger specific cameras to start recording. You can see the result directly in mobile and desktop apps (monitoring apps)



Privacy:

• Distribution of access rights for users in mobile apps and for CRA operators in PRO Desktop




Anti-sabotage protection : Tamper alert: Notifications if an attempt is made to detach the device from the surface or remove it from the mounting panel.



General features:

• Dimensions 193 × 193 × 47 mm
• Weight 700 grams without hard disk
• Operating temperatures from 0°C to +40°C
• Maximum allowable humidity up to 75%
• IP20 protection class for indoor use
• Color Black

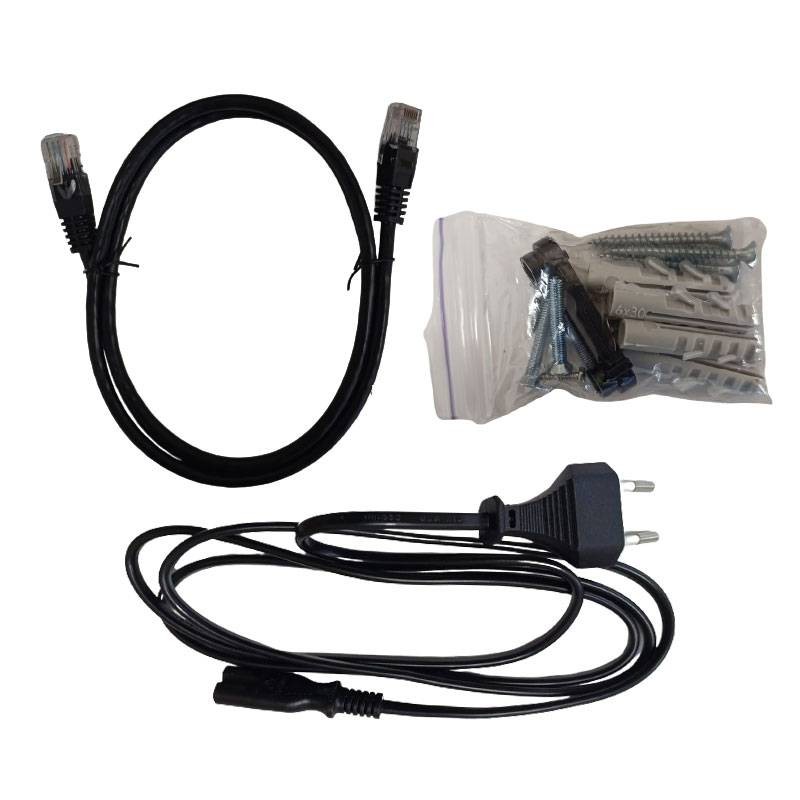

Package Contents:

• SmartBracket mounting panel
• Power cord with plug
• Ethernet cable 1 meter cat.5E
• Installation/fixing kit
• Quick Start Guide

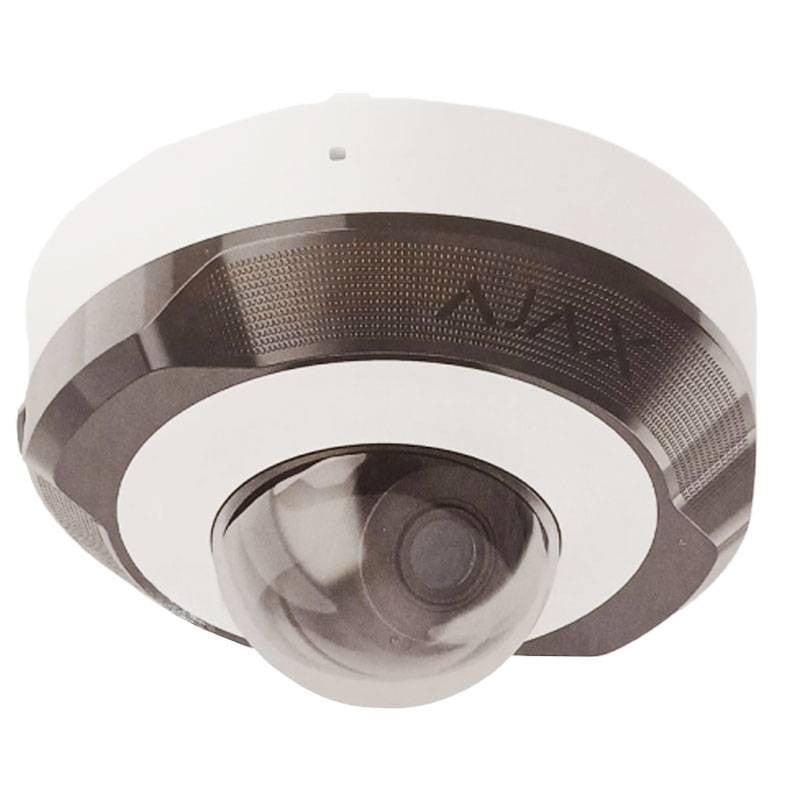

Ajax DomeCam Mini Camera:

• Wired IP System
• Resolution up to 2880 × 1620 px 5MP
• 4.0mm lens
• Frame rate 25 FPS
• Viewing angle from 75° to 85°
• IP65 degree of protection
• Color white
• Ajax cameras can also work without NVR (codes 70935/70938), as long as it is connected to the Internet, and to the intrusion control panel.

DomeCam Mini is an IP camera with intelligent infrared (IR) backlight and object recognition function. The user can view archived video materials and online videos in Ajax apps. To store captured data, a micro SD card must be installed or the camera must be connected to the NVR with a hard disk installed.

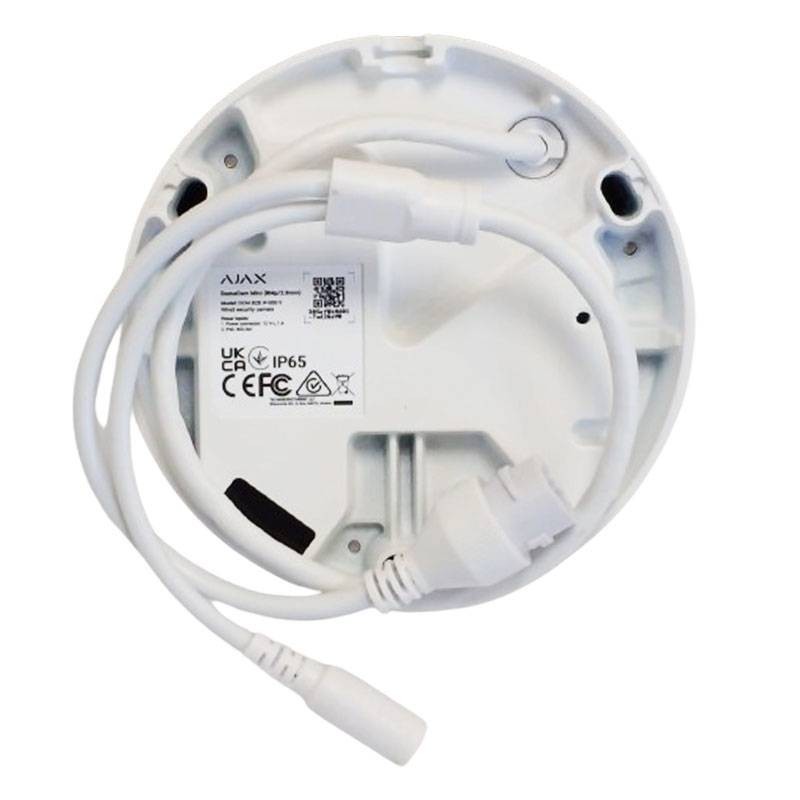

The camera is connected to the network via Ethernet using the corresponding connector.



Product Overview:

• DomeCam Mini is an IP camera that uses artificial intelligence (AI) for object recognition. Its algorithms can identify moving objects, distinguishing between humans, animals or vehicles
• The device has an intelligent IR backlight, which ensures the capture of high-quality images even in low-light conditions. The camera automatically adjusts the intensity of the backlight in real time to avoid overexposure, allowing clear visibility of objects far away or too close to the camera in low-light conditions
• A micro SD card with a memory capacity of 8 GB to 256 GB (not included in the complete camera set) can be installed. In addition, the device can operate without a memory card or via NVR.



With DomeCam Mini you can:

• Watch videos in real time, with the ability to zoom in for a closer look
• Access archived videos, browsing through them based on recording history and calendar (this feature is available if a micro SD memory card is installed in the camera or if it is connected to the NVR with a hard drive installed)
• Configure motion detection zones and adjust the sensitivity level
• Display the Videowall that combines images from all connected cameras
• Create video scenarios that send a short video from the selected camera to the Ajax app when the detector is activated



Video scenarios:

• The Ajax system offers the possibility of using IP cameras for alarm verification. Video scenarios allow alarms to be confirmed with corresponding videos from the cameras installed in the system
• Cameras can be configured to respond to alarms from a single device, multiple devices, or all connected devices. Combined detectors can record different types of alarms, allowing responses to one type of alarm, several or all types to be configured



Videowall:

• The user can manage videos in the Videowall tab, which is accessible once at least one camera has been added. This feature provides quick access to all connected cameras, displayed according to privacy settings



Features:



Video streaming:

• JetSparrow video protocol Fast, encrypted peer-to-peer video protocol developed by Ajax Systems
• Storage: NVR or microSD Storage device not included
• H.265 - H.264 codecs
• Dynamic ranges HDR - WDR



Communication channels:

• Ethernet up to 100 Mbps



Motion detection:

• The camera has software to detect motion in the image



Object detection:

• Using artificial intelligence
• Humans
• Pets
• Vehicles



Intelligent IR lighting up to 30 m:

• Real-time automatic intensity adjustment to avoid overexposure. This allows objects far away or too close to the camera to be seen in low light conditions



Active zone:

• The camera focuses on certain areas of the view where the device detects motion



Visual verification for Ajax alerts:

• The system allows you to set up a scenario in which Ajax detectors trigger selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app



Microphone:

• With the corresponding settings, the camera records sound in the system



Power supply:

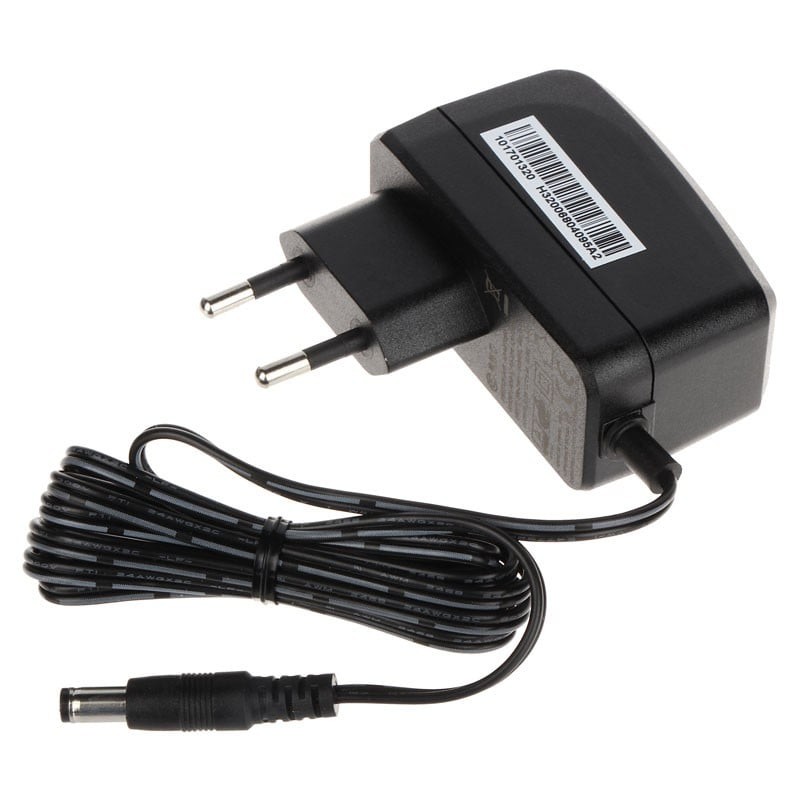

• 12 V? ± 20%, 1 Up to 7.5 W mains power supply
• Ethernet port Standard PoE 802.3at



Anti-sabotage protection:

• mTLS Encrypted connection for data protection
• Authentication via Cloud Without local access rights
• Secure Boot Protection against firmware forgery
• OTA signature verification Secure automatic firmware update
• Privacy Distribution of access rights for users in mobile apps and for CRA operators in PRO Desktop



Case:

• 113 × 60 mm dimensions
• Weight 360 g
• Operating temperatures from ?25°C to +40°C
• Maximum allowable humidity up to 90 percent
• Protection class IP65 also for outdoor use



Package includes:

• DomeCam Mini (5 Mp/4.0 mm)
• Installation diagram
• Installation kit
• Quick Start Guide

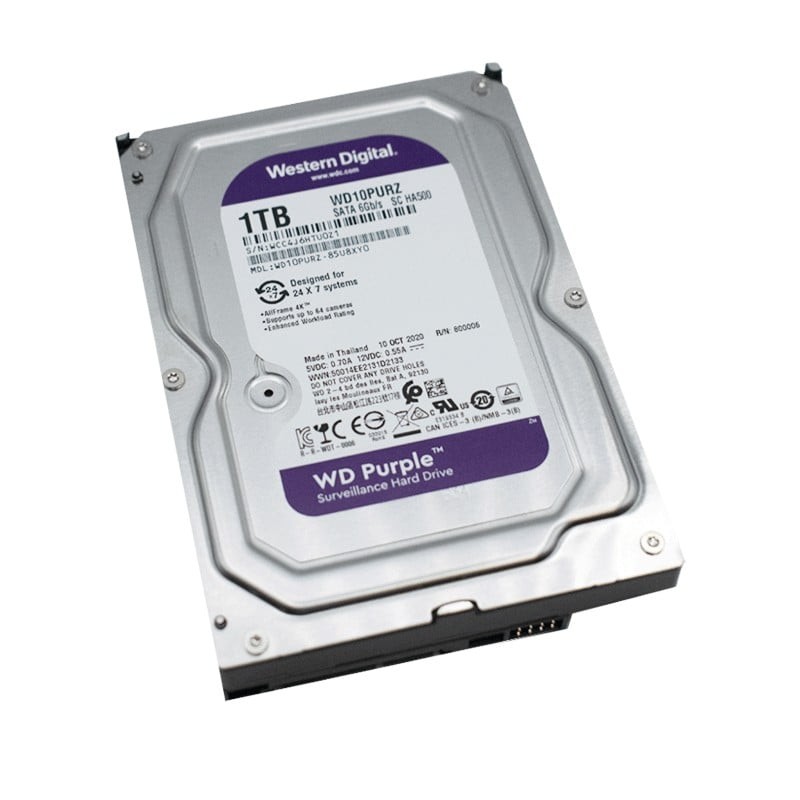

Western HDD Digital 1TB Hard Disk:



Features:

• Product dimensions 14.7 x 10.16 x 2.61 cm; 449.06 grams
• Batteries 1 AA (Battery type required)
• Item model number WD10PURZ
• Form Factor 3.5
• RAM Size 1 TB
• Hard-Disk Size 1000 GB
• Hard-Disk HDD Description
• Hard-Disk Interface Serial ATA-600
• Hard-Disk Rotational Speed 5400 revolutions per minute
• Wireless type 802.11a
• Number of USB 2.0 ports 1
• Power Supply Type Battery or USB
• Batteries are included No.
• Lithium battery capacity 500 watt hours
• Lithium battery pack Batteries contained in the equipment
• Lithium battery voltage 1 Volt
• Lithium battery weight 13 grams
• Number of lithium ion cells 1
• Item weight 449 g
• Supported cameras up to 64.
