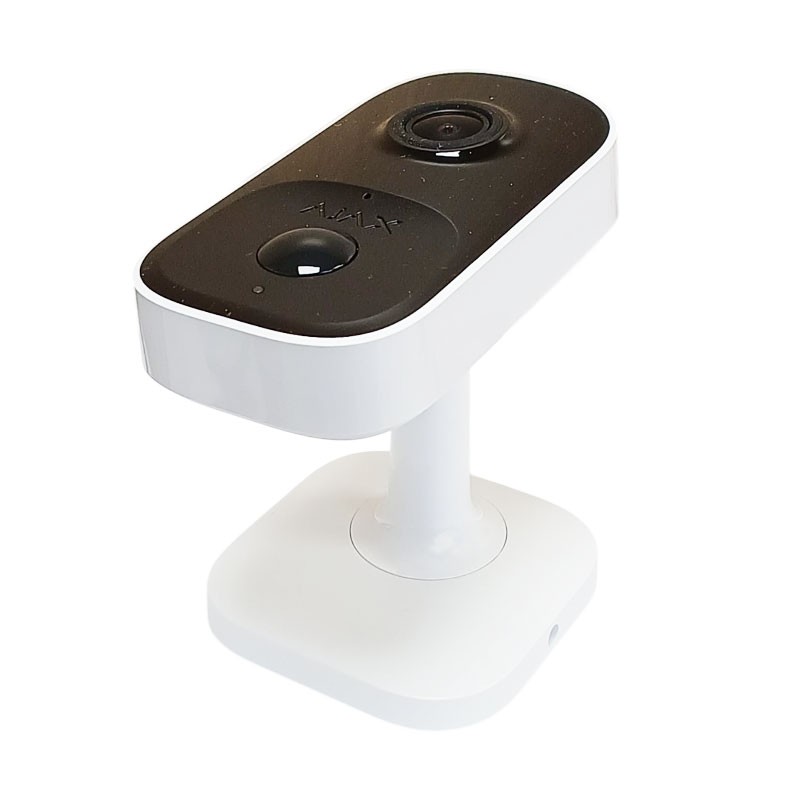

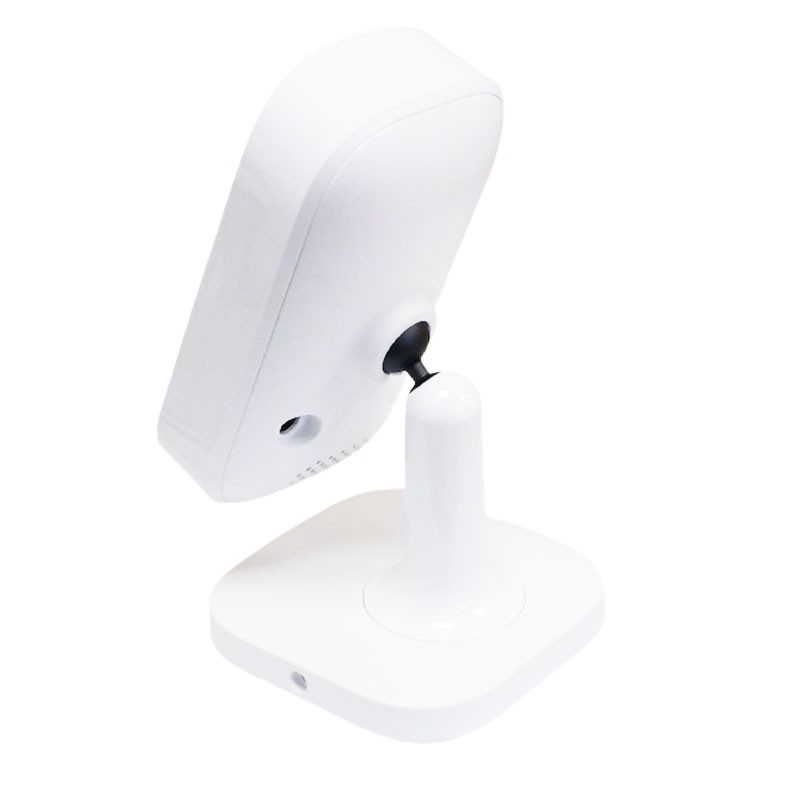

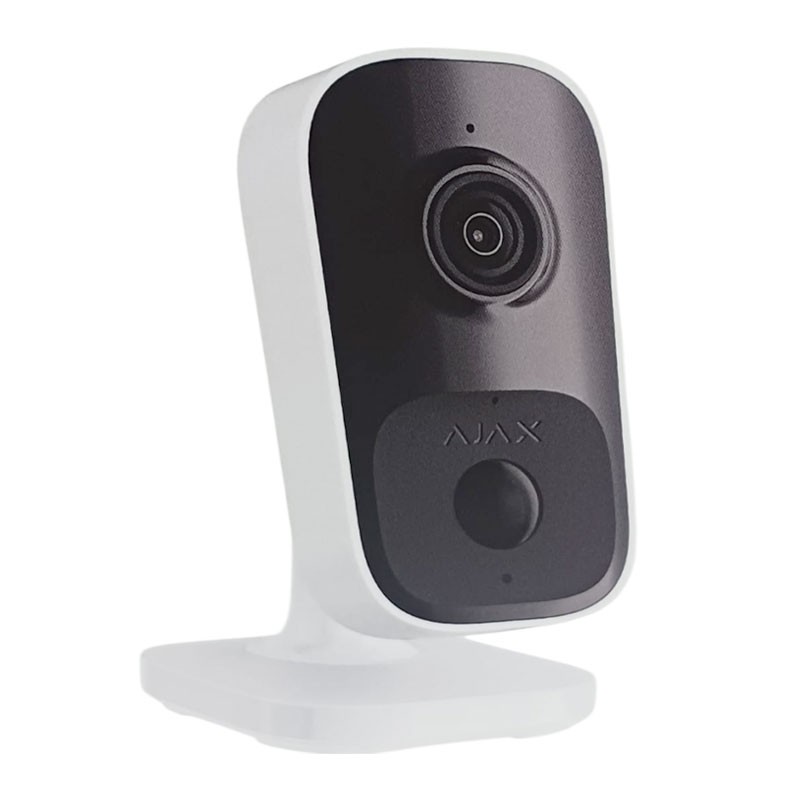

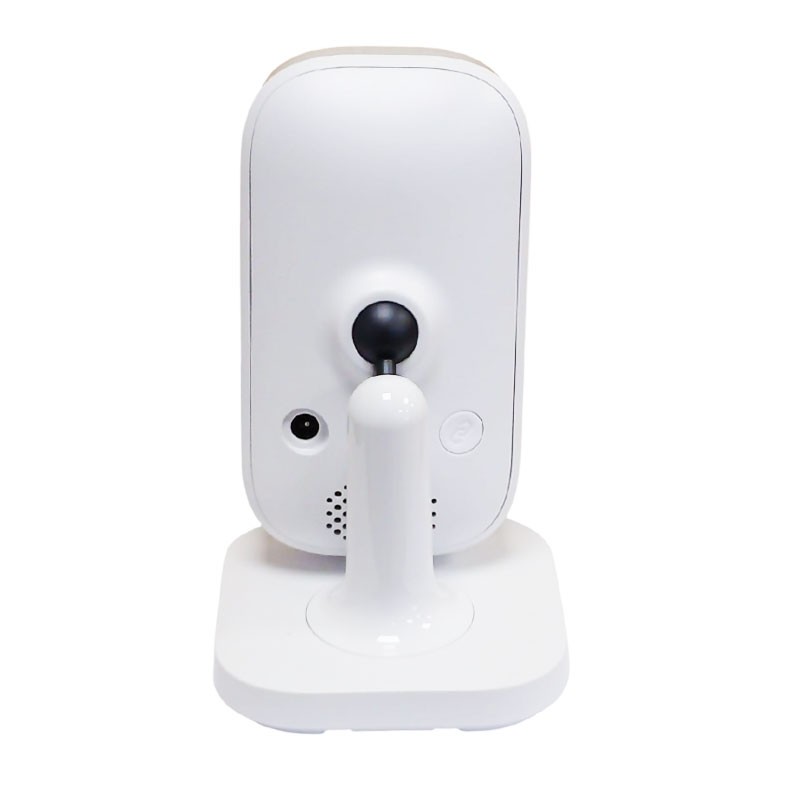

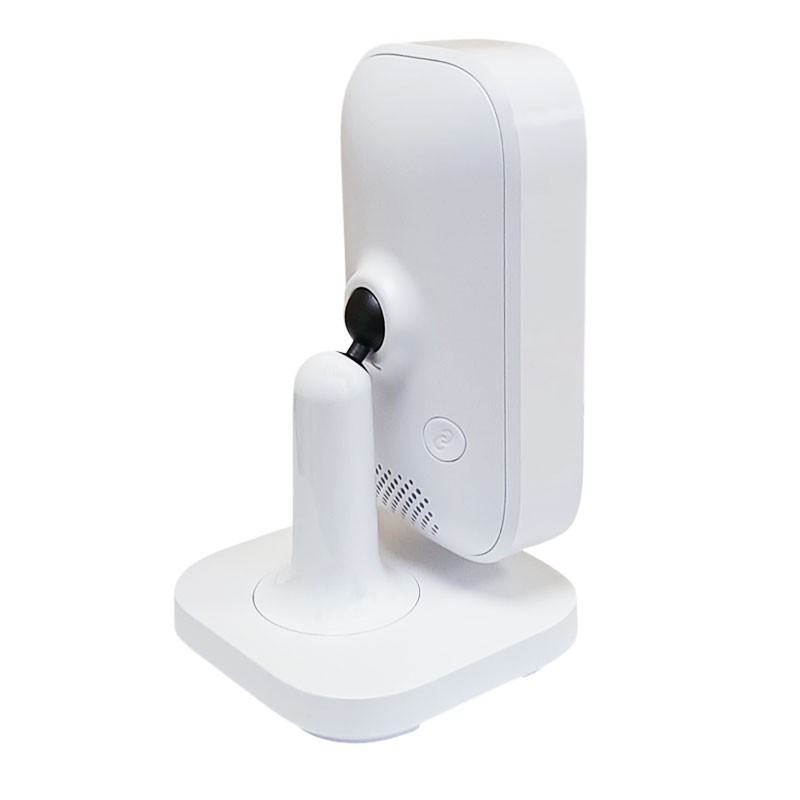

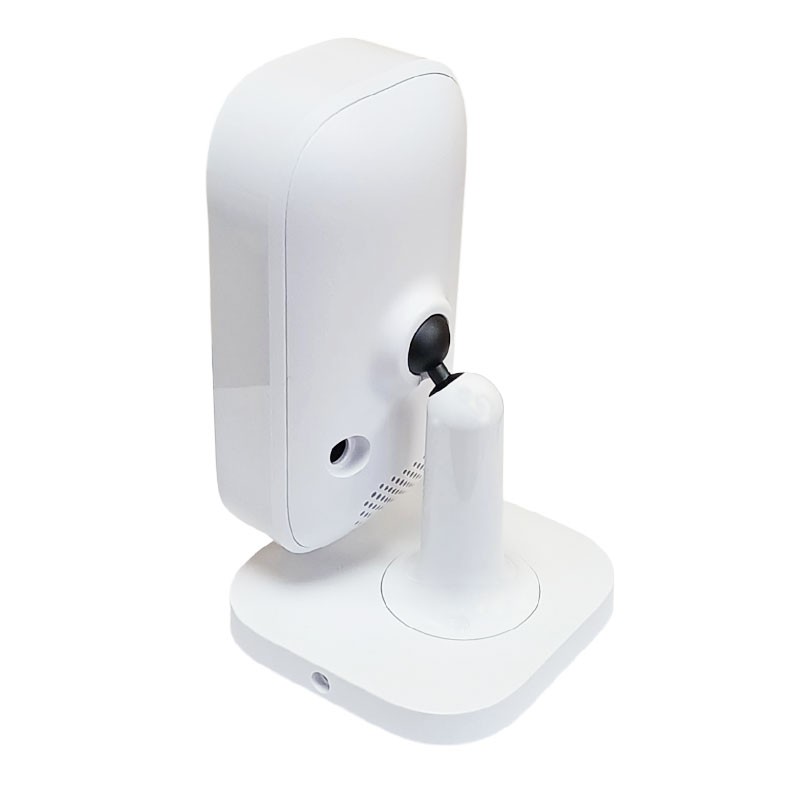

Ajax IndoorCam Wifi PIR Camera and Integrated AI for Indoor White
08T 111566
4823114066962
IndoorCam is an indoor Wi-Fi security camera designed to offer smart and reliable video surveillance with advanced features such as motion detection via PIR sensor, built-in artificial intelligence, and HDR video streaming in high resolution. With stable Wi-Fi connection and Ajax compatibility via spare channel, IndoorCam provides continuous protection and total control of indoor environments.
- 4MP HDR CMOS sensor (2688 × 1520 px)
- Viewing angle: 110° horizontal / 60° vertical
- Motion detection: PIR sensor with silicon optical filter
- Intelligent recognition via built-in AI
- Two-way audio with 85 dB speaker

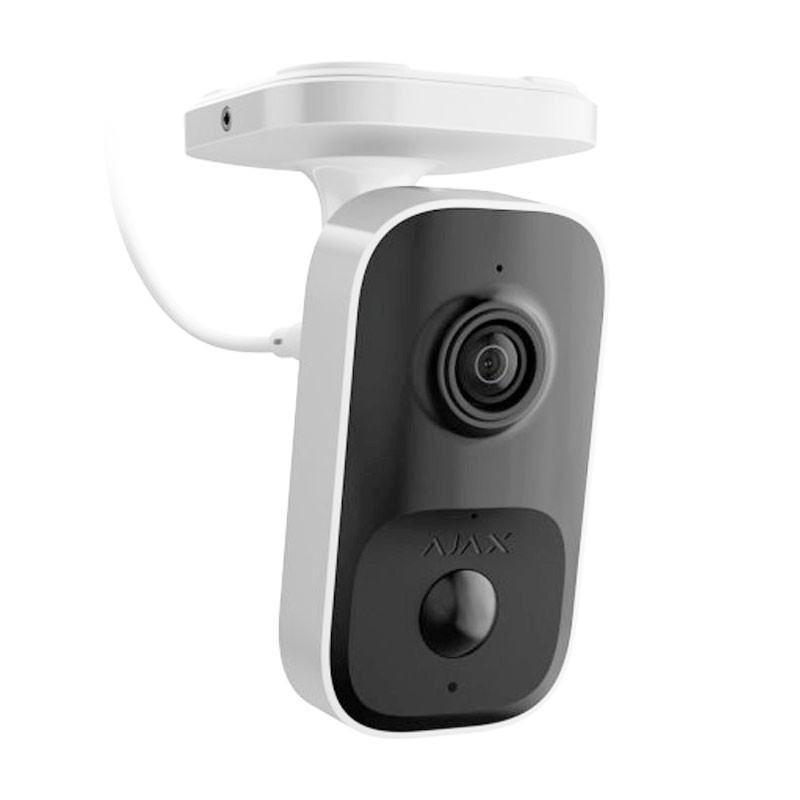

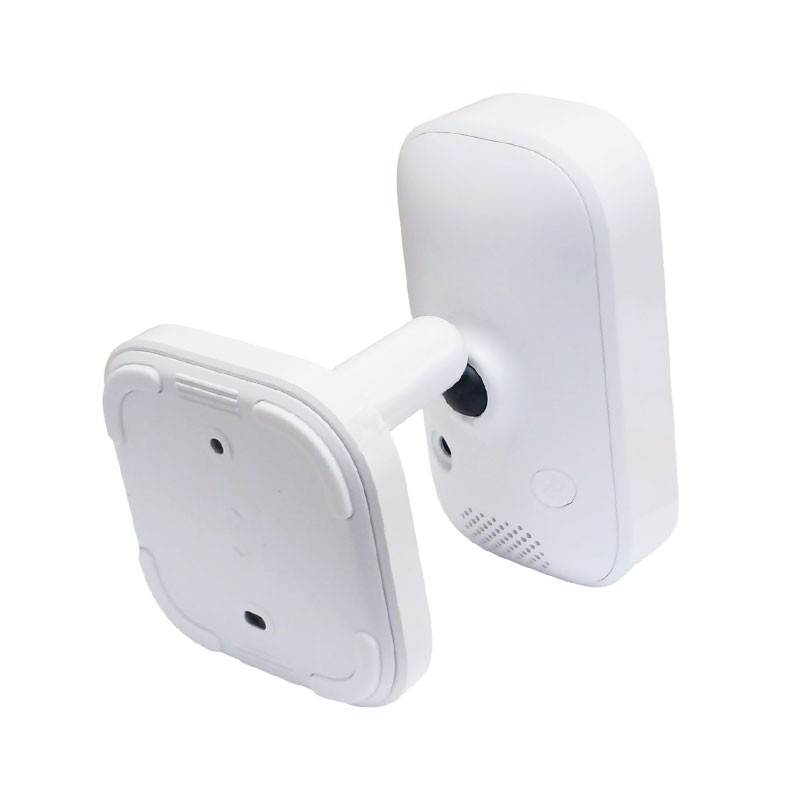

- Three flexible installation modes
- Configurable privacy zones to protect sensitive areas
- Pixel-level motion tracking
- Extended Wi-Fi range up to 500 m as the crow flies
- Power supply: 12 V⎓
- Live HD streaming via Ajax app
€181.66
Items Available: 4
Frequently bought together
IndoorCam Wifi indoor camera: equipped with PIR and AI
IndoorCam combines the convenience of Wi-Fi cameras with high-level security features. The backup communication channel with an Ajax hub ensures that the situation of the facility is never overlooked, even if the Wi-Fi connection is lost. Equipped with a PIR sensor and built-in AI, the device accurately detects movement and recognizes people, animals and vehicles. With IndoorCam's wide-angle HDR camera, users can always have a clear view of activities with exceptional quality.
Live connection and viewing
Stay connected to your property and monitor it from anywhere, day or night. With HD video streaming and two-way audio, you can instantly see, hear and respond to any situation using your smartphone. From deterring unwanted visitors to monitoring your space, IndoorCam combines professional-grade surveillance with user-friendly functionality.
IndoorCam Camera Plus: Artificial Intelligence
IndoorCam features an AI-based object recognition system that transforms standard video surveillance into an intelligent monitoring tool. The AI only identifies critical events, such as a vehicle entering a parking area, a person entering a restricted area, customers approaching payment counters, etc. AI processing occurs directly in the camera, eliminating the need for additional equipment or subscriptions. Both users and security personnel can easily monitor spaces via a smartphone, receiving instant notifications when motion is detected-no specialized security training is required.
Precise video recording: pixel by pixel
Optimize your video archive with intelligent motion detection. Configure motion tracking within specific pixel-level zones, ensuring that only relevant activity is recorded when motion occurs in the selected area. Strict event filtering helps save storage space and simplify browsing through the archive.
Sensitive areas under control
Improve privacy by configuring privacy zones to selectively hide specific parts of the image. For example, a safe within the camera view can be excluded from recording, while surrounding activity remains visible. This feature ensures that sensitive and confidential information remains strictly private, and is particularly suitable for high-security environments.
Association with NVR Ajax
Experience rapid system response with instant access to a large 16 TB of local video storage, offering cloud-level retrieval speed. Designed for broad compatibility, the NVR allows almost any third-party IP camera to be integrated into the Ajax intrusion protection and automation configuration.
Reliable connection even in the absence of Wifi
Adding IndoorCam to an Ajax hub provides a reliable backup communication channel. If the Wi-Fi connection is lost, the camera continues to transmit events, alarms, and photos using Ajax's Jeweller and Wings secure radio protocols. With a communication range of up to 1,700 meters with a hub and Ajax's robust anti-sabotage measures, IndoorCam remains an active part of the intrusion protection system, ensuring that users are informed and in control.
- Up to 1,700 m of communication with an Ajax2 hub
- Frequency hopping
- Inhibition detection
- Device loss detection
High Wifi range to avoid connection problems
Forget about home security cameras that abandon the Wi-Fi network at the worst possible time. IndoorCam is designed to be less susceptible to radio interference and maintain a stable connection up to 500 meters in line-of-sight, five times farther than competing solutions. The extended range provides greater installation flexibility, as installers no longer have to place the Wi-Fi router directly next to the camera. For users, it ensures continuous communication and uninterrupted streaming whenever needed.
Compatibility - Ajax Devices Supported
| Ajax Device | Compatibility |
|---|---|
| Hub 2 (2G) Jeweller | Compatible |
| Hub 2 (4G) Jeweller | Compatible |
| Hub 2 Plus Jeweller | Compatible |
| Hub Hybrid (2G) | Compatible |
| Hub Hybrid (4G) | Compatible |
| Hub Hybrid (4G) (without enclosure) | Compatible |
| ReX 2 Jeweller | Compatible |
Technical Features - IndoorCam Ajax Camera
Video Streaming
| Parameter | Value |
|---|---|
| Video Sensor | 4 MP CMOS |
| Maximum resolution | Up to 2688 × 1520 px (2K) |
| Viewing angle |
|
| Video protocol | JetSparrow (Ajax proprietary encrypted peer-to-peer) |
| Video codec | H.264 |
| Dynamic Range | HDR (high dynamic range) |
| Storage | Ajax Cloud (coming soon), NVR |
Communication Channel
| Technology | Details |
|---|---|
| Wi-Fi | 802.11 b/g/n, 2.4 GHz - up to 2 Mbit/s (video) |
| Jeweller & Wings |
|
Smart Features
| Function | Description |
|---|---|
| Voice communication | Clear and loud two-way audio |
| Microphone | For communication and audio recording |
| Speaker | TBC volume (being updated) |
| Audio codec | G722 |
| Audio processing | Noise suppression and echo cancellation always on |
| LED indication | Shows the current status of the device |
| Intelligent IR illumination | Up to 8 m, automatic anti-overexposure adjustment |
| Visual alarm verification | Integration with Ajax scenarios for automatic recording and event sending |
Detection with Artificial Intelligence
| Parameter | Value |
|---|---|
| PIR Sensor | 1 built-in sensor |
| Motion detection distance | Up to 4 m (depends on sensitivity) |
| Motion detection angle |
|
| Sensitivity | 3 levels (configurable by PRO or Admin) |
| AI Recognition |
|
Installation
| Parameter | Value |
|---|---|
| Use environment | Indoor only |
| Installation Notes |
|
Anti-shock protection
| Function | Description |
|---|---|
| Mounting screw | Securely fastens the camera to the mounting bracket |
| Encrypted connection | mTLS for data protection during communication |
| Authentication | Via Ajax Cloud, without local access |
| Secure Boot | Protection against counterfeit firmware |
| OTA signature verification | Secure and certified firmware updates |
| User Privacy |
|
| Communication loss detection |
|
Power
| Parameter | Value |
|---|---|
| Power supply included | 12 V⎓ ± 20%, 1 A |
| Power consumption | TBC |
Housing
| Feature | Value |
|---|---|
| Dimensions | 128 × 74 × 76 mm |
| Weight | 235 g |
| Operating temperature | 0 °C to +40 °C |
| Maximum humidity | Up to 90% non-condensing |
| Protection class | IP20 |

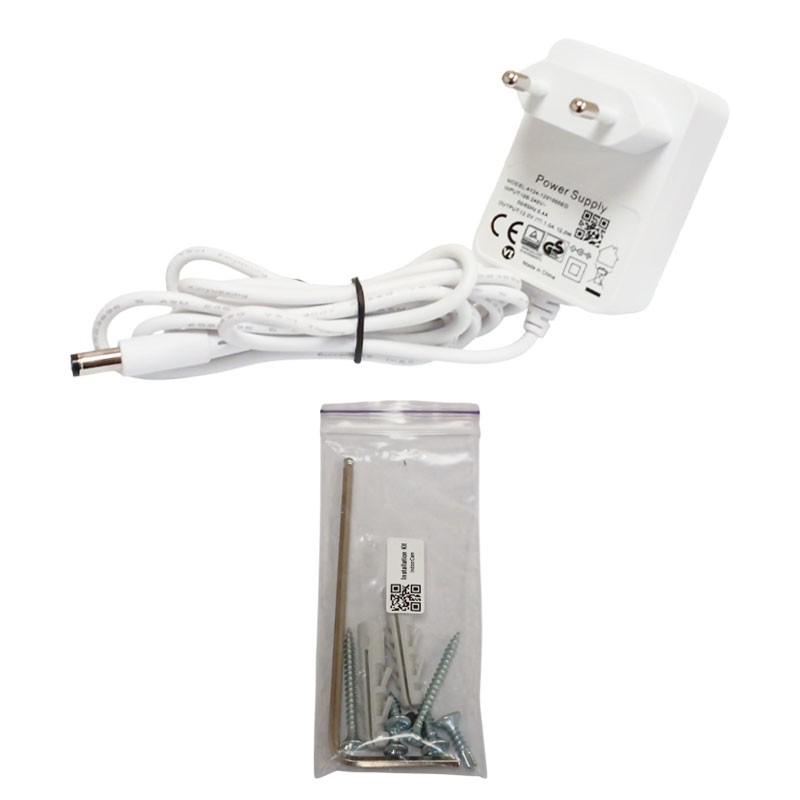

Package Contents
| Component | Included |
|---|---|
| Device | IndoorCam |
| Power Supply | 12 V⎓ included |
| Installation kit | Included |
| Quick Start Guide | Included |
There are no reviews
Data sheet
- Colour: White
- Type: Desk cameras
- Degree of protection: IP20
- System: WIFI
- Resolution: 4MP (2K)
