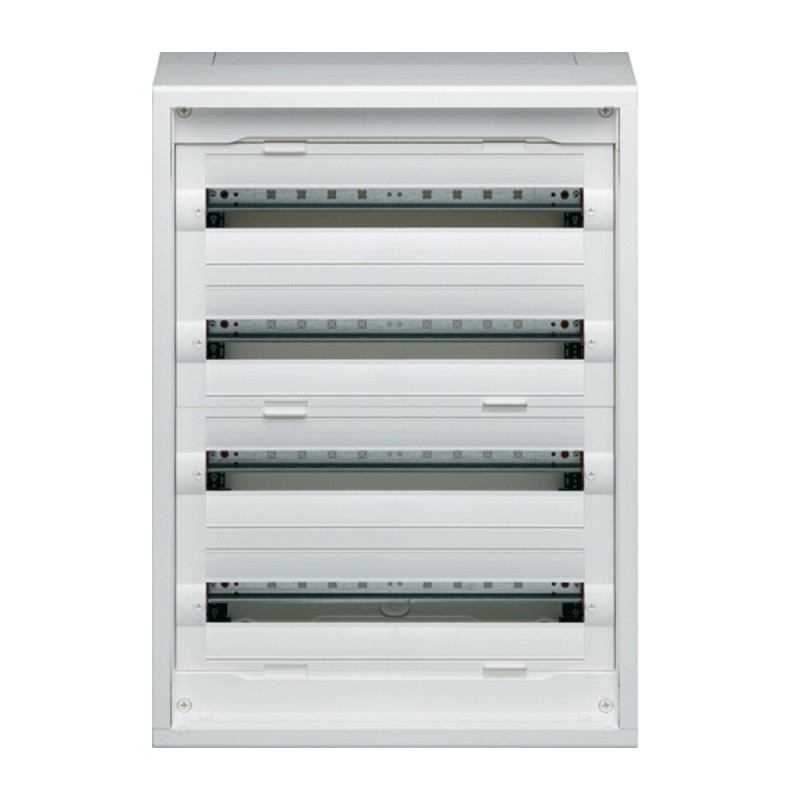

Hager Vega Wall Panel D 96 Modules h750 without door FD42LN
HAG FD42LN
3250612548583
Hager Vega D 96 Modules h750 wall-mounted switchboard without door:
- Current rating in A 160 A
- Number of rows in the enclosure 4
- Number of rows 4
- Accessory yes
- Number of flanged sides 2
- Removable yes
Accessory Glass door not included (code FD42TN).
€400.91
Items Available: 17
: 3
Frequently bought together
Features:
- Compatible with mounting on DIN Rail
- White color
- Color RAL White RAL 9010
- Material Plastic / metal
- Surface treatment powder coated
- Installed product depth 193 mm
- Inside depth 193 mm
- Height of installed product 750 mm
- Installed product width 550 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Connection Number of duct inlets 4
- Without mounting plate included and without lock
- Impact resistance rating IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 96
- Degree of protection: IP30
- Model: Without door
- Installation: Wall-mounted
