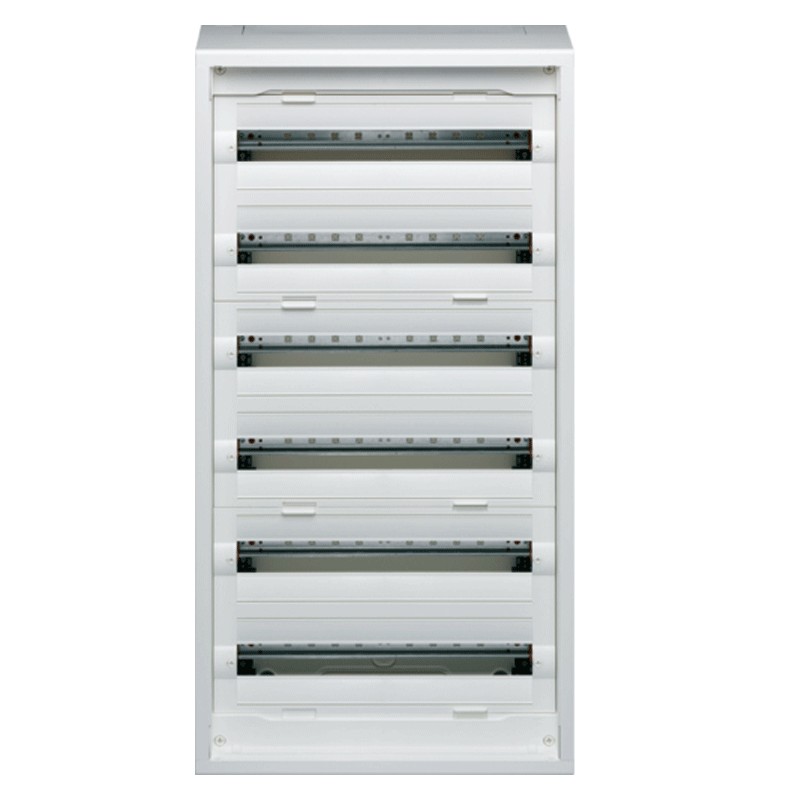

Hager Vega Wall Panel D 144 Modules h1050 without door FD62LN
HAG FD62LN
3250612548606
Hager Vega wall-mounted switchboard D 144 Modules without door, Rated current in A 160A.
Accessory to be purchased separately transparent glass door code FD62TN.
€645.25
Items Available: 8
: 2
Frequently bought together
Features:
- Compatible with mounting on DIN Rail
- White color
- Color RAL White RAL 9010
- Material Plastic / metal
- Surface treatment powder coated
- Installed product depth 193 mm
- Inside depth 193 mm
- Height of installed product 1050 mm
- Installed product width 550 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Connection Number of duct inlets 4
- Without Mounting plate and lock
- Equipment: Number of rows in the enclosure 6
- Number of profiles 6
- Accessory yes
- Number of flanged sides 2
- Removable yes
- Degree of impact resistance IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 144
- Degree of protection: IP30
- Model: Without door
