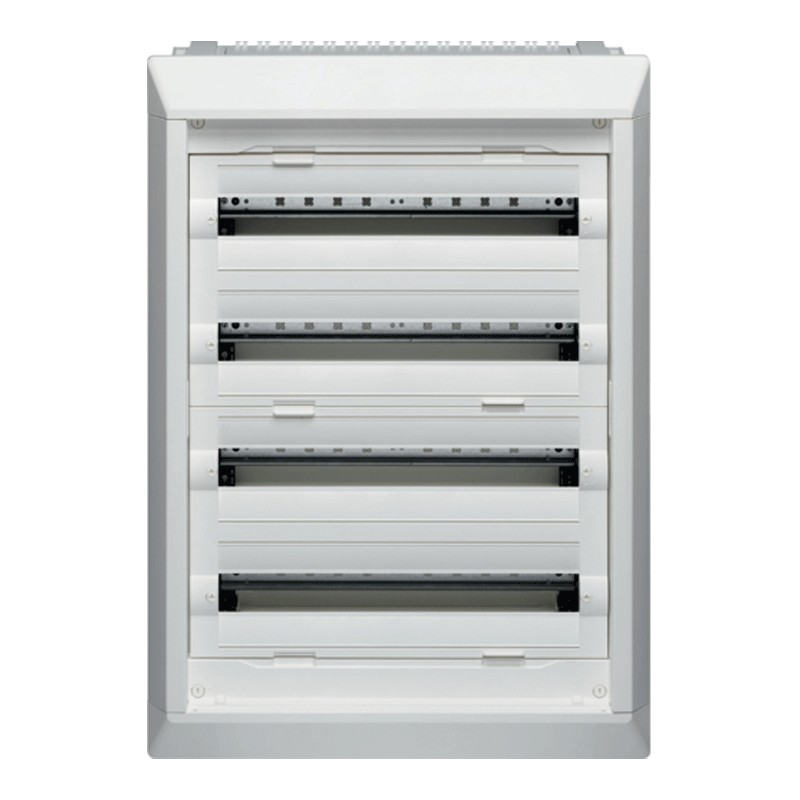

Hager Vega D 96-Module Built-in Panelboard without Door FU42LN
HAG FU42LN
3250612711031
Hager Vega D 96-module flush-mounted switchboard without door height 837mm.
€370.85
Items Available: 10
: 2
Features:
- Flush mounting modes
- Compatible with mounting on DIN Rail
- Current rating in A 160 A
- Cover Type With Notch
- Lock without
- Door leave without
- Cover type none / closed
- White color
- RAL color White RAL 9010
- Material Plastic / metal
- Surface treatment powder coated
- Recessed depth 110 mm
- Installed product depth 150 mm
- Inside depth 110 mm
- Height of installed product 837 mm
- Height of installed product 837 mm
- Width of installed product 600 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Number of duct inlets 4
- Mounting plate not included
- Without lock
- Quantity of rows in the enclosure 4
- Amount of section in width 2
- Number of sections 4
- Accessory yes
- Number of flanged sides 2
- Removable no
- Degree of impact resistance IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 96
- Degree of protection: IP30
- Model: Without door
- Installation: Recessed
