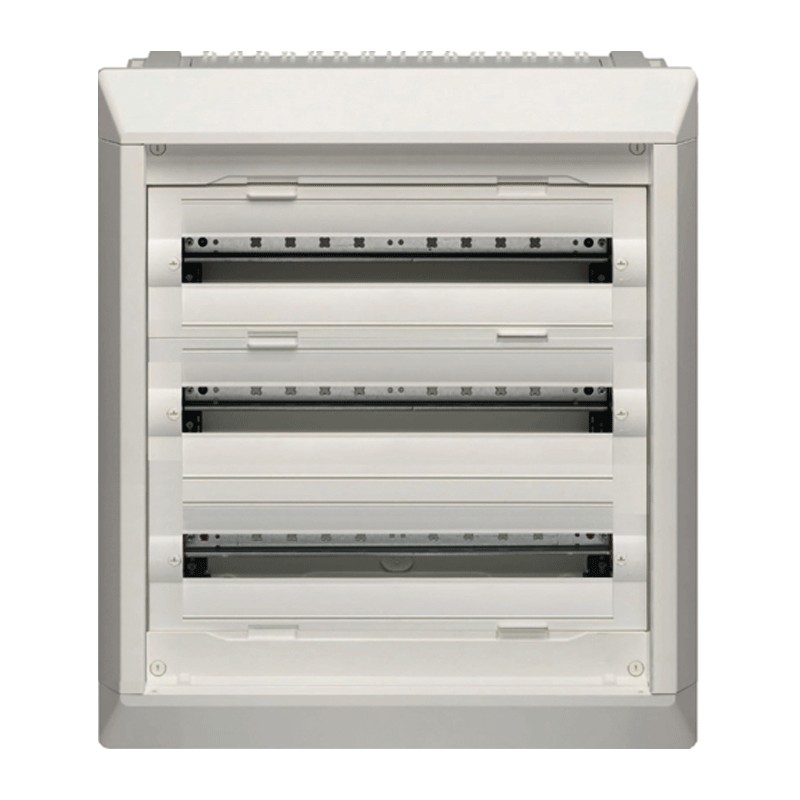

Hager Vega D 72 Modules Doorless Built-in Panelboard FU32LN
HAG FU32LN
3250612711024
Hager Vega D 72-module recessed switchboard without door height 687mm.
€279.18
Items Available: 1
Features:
- Flush mounting modes
- Compatible with mounting on DIN Rail
- Current Rating in A 160A
- Cover Type With Notch
- Without Notch
- Door leave without
- Cover type none / closed
- Without Transparent cover and door
- White color
- RAL color White RAL 9010
- Material Plastic / metal
- Surface treatment powder coated
- Built-in depth 110 mm
- Installed product depth 150 mm
- Inside depth 110 mm
- Height of installed product 687 mm
- Height of installed product 687 mm
- Width of installed product 600 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Number of duct inlets 4
- Without Mounting plate and lock
- Amount of rows in the enclosure 3
- Amount of section in width 2
- Number of sections 3
- Accessory yes
- Number of flanged sides 2
- Removable no
- Degree of impact resistance IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 72
- Degree of protection: IP30
- Model: Without door
- Installation: Recessed
