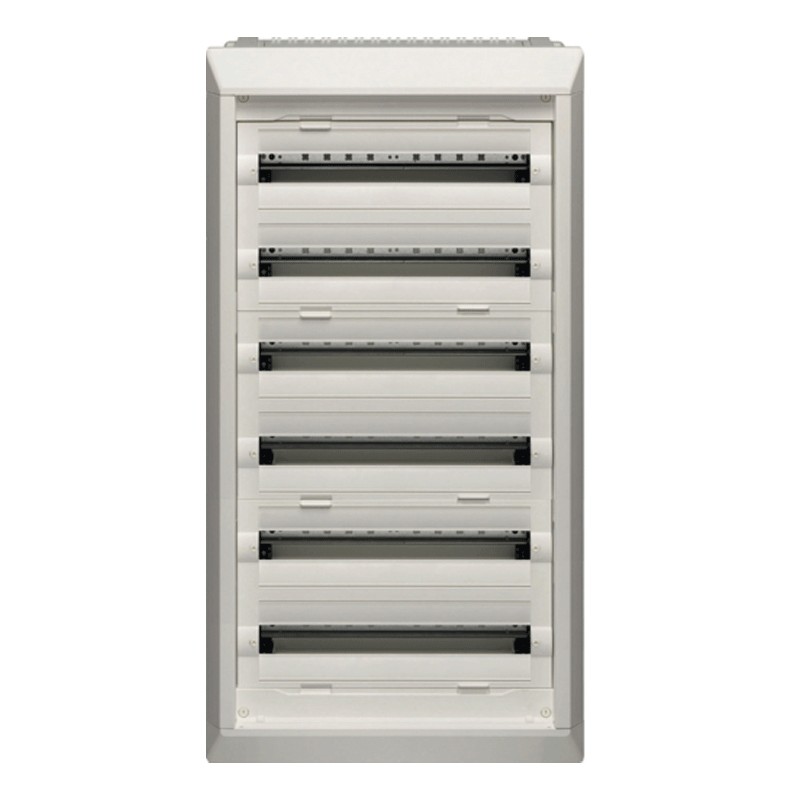

Hager Vega D 144-Module Built-in Panelboard without Door FU62LN
HAG FU62LN
3250612711055
Hager Vega D 144-module recessed switchboard without door height 1137mm.
€550.13
Items Available: 6
: 1
Features:
- Flush mounting modes
- Compatible with mounting on DIN Rail
- Current rating in A 160A
- White color
- Color RAL White RAL 9010
- Material Plastic/metal
- Surface treatment powder coated
- Recessed depth 110mm
- Installed product depth 150 mm
- Inside depth 110 mm
- Height of installed product 1137 mm
- Height of installed product 1137 mm
- Width of installed product 600 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Number of duct inlets 4
- Mounting plate not included
- Without lock
- Amount of rows in the enclosure 6
- Amount of section in width 2
- Number of sections 6
- Accessory yes
- Number of flanged sides 2
- Removable no
- Degree of impact resistance IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 144
- Degree of protection: IP30
- Model: Without door
- Installation: Recessed
