Hager Vega D 120-module wall panel to be equipped FD52LN
HAG FD52LN
3250612548590

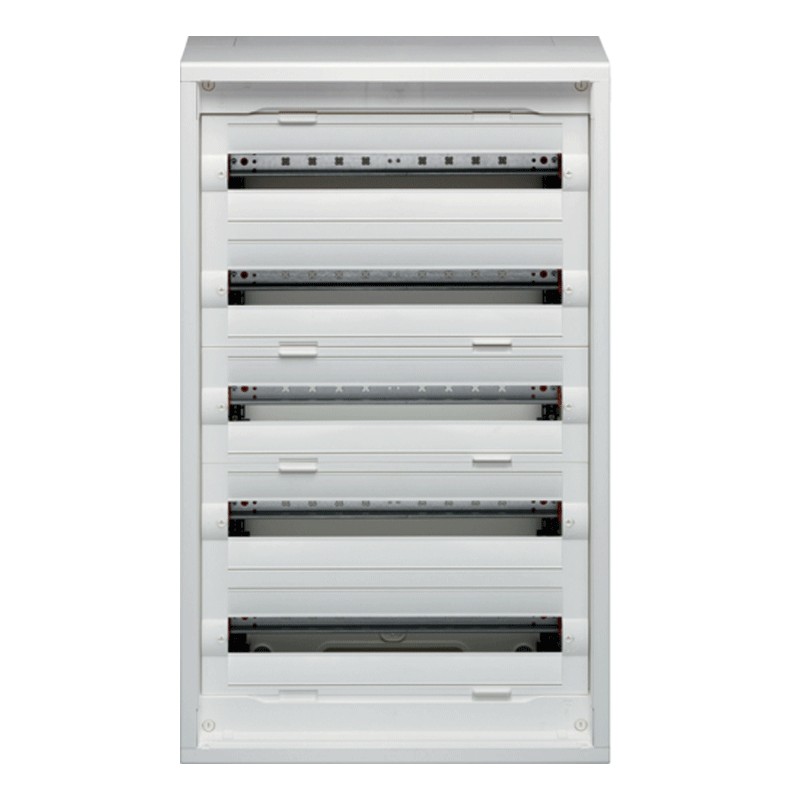

Hager Vega D 120-module wall panel to be equipped, Rated current in A 160A.
Accessory not included to be purchased separately clear glass door (code FD52TN).
€507.57
Items Available: 9
: 2
Frequently bought together
Features:
- White color
- Color RAL White RAL 9010
- Material Plastic/metal
- Powder coated surface treatment
- Installed product depth 193mm
- Inside depth 193 mm
- Height of installed product 900 mm
- Installed product width 550 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Number of duct inlets 4
- Not included Mounting plate and lock
- Number of rows in the enclosure 5
- Number of profiles 5
- Accessory yes
- Number of flanged sides 2
- Removable yes
- Impact resistance grade IK07
- Degree of enclosure protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 120
- Degree of protection: IP30
- Model: Without door
- Installation: Wall-mounted
