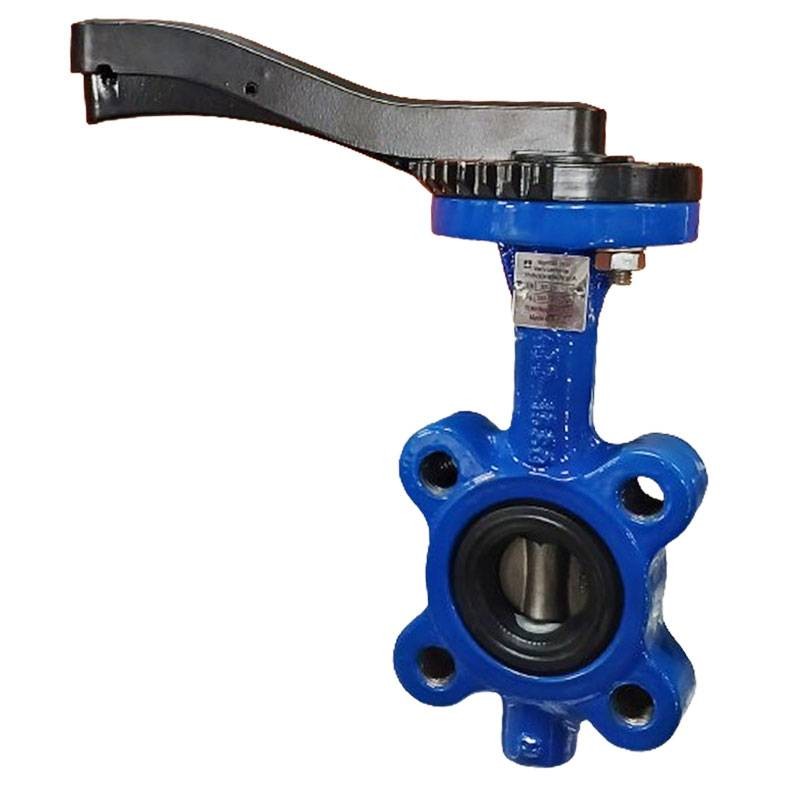

Valvorobica Lug Lever-operated butterfly valve D 32 mm PN16 VFLUGXNLD032
26M VFLUGXNLD032
Lug Valvorobica butterfly valve, manual lever control, stainless lens, NBR seat, for potable water, with the following features:
-
Control: Manual lever control
-
Nominal diameter: 32 mm
-
Nominal pressure: 16
-
Lens: Stainless steel
-
Seat: NBR (nitrile rubber)
-
Fluid application: Potable water
€51.87
Items Available: 19
: 18
Butterfly valve efficient control of fluids in civil and industrial systems
The Valvorobica butterfly valve with manual lever control and EN 1092-1 PN10/PN16 flange-connectable body is designed to offer reliable performance in fluid control and regulation. With a nominal diameter of 32 mm and an operating pressure up to PN16, this valve is suitable for both civil and industrial applications, ensuring an effective seal and long operating life.
Durable materials compatible with potable water
The valve features a stainless steel lens, which offers excellent resistance to corrosion and aggressive agents found in water circuits. The NBR (nitrile rubber) seat is suitable for contact with potable water, ensuring elasticity, tightness and durability. These materials make it an optimal choice for pressurized systems where water safety and hygiene are essential.
Lug structure: stable and secure installation
The Lug configuration allows direct attachment by bolting to pipe flanges, enabling the valve to be installed without interrupting fluid flow when servicing a single line. This makes the valve particularly suitable for modular systems, branch lines or situations requiring flexible and safe installation.
Manual lever control: convenience of use and immediate control
The manual lever control allows quick opening and closing of the valve, providing intuitive flow control. It is ideal in installations where adjustment of fluid flow must be simple, immediate, and without the need for automation.
Technical Specifications Valvorobica Butterfly Valve
| Type | Lug butterfly valve |
| Control | Manual lever |
| Nominal diameter (DN) | 32 mm |
| Nominal pressure (PN) | 16 |
| Connectability | Flanges EN 1092-1 PN10 - PN16 |
| Lens | Stainless steel (corrosion resistant) |
| Seat | NBR (nitrile rubber, suitable for potable water) |
| Temperature range | -10°C TO +80°C |
| Installation | Between flanges - Lug type |
| Applications |
Civil and industrial water systems |
There are no reviews
Data sheet
- Diameter: 32mm
- Type: Butterfly valves
- Material: Cast iron
