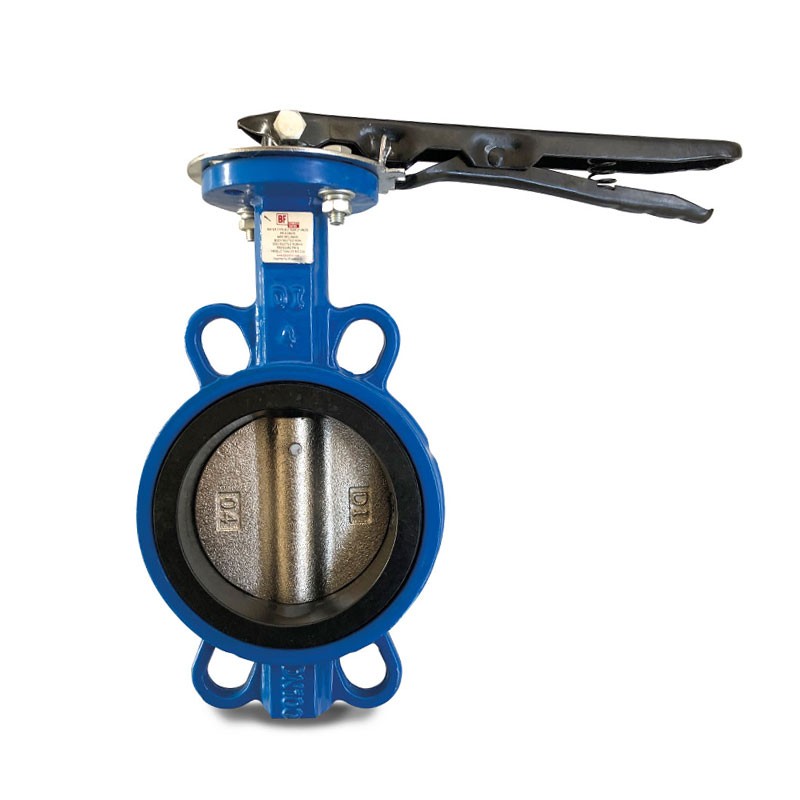

BF Control Wafer butterfly valve PN16 40 mm 1 1/2 cast iron BW2516EPDM0040
68O BW2516EPDM0040
Wafer BF Control butterfly valve, suitable for HVAC systems, water treatment and industrial applications, with the following characteristics:
-
Operating pressure: PN16
-
Nominal diameter: 40 mm (1 inch 1/2)
-
Seal in: EPDM elastomer, resistant up to 110 degrees
-
Wafer body: spheroidal cast iron with epoxy coating
-
Compatible with: ISO 5211 actuators
€27.47
Items Available: 8
: 4
Wafer butterfly valve: reliability and durability for complex systems
The butterfly valve is designed to provide effective shut-off and flow regulation in numerous application contexts. Made according to international standards EN 593 and EN 1074, it offers high performance in terms of safety, durability and ease of installation.
Rugged construction and anti-corrosion coating
The spheroidal cast iron body, combined with blue epoxy powder coating, ensures optimal protection against corrosion even in aggressive environments. The ISO 5211 top flange allows direct mounting of electric or pneumatic servos, making the valve also suitable for automated applications.
Versatile applications and high performance
Ideal for HVAC (heating and air conditioning) systems, water networks, fire protection systems and agricultural or industrial applications. EPDM seal allows lìuse with hot water up to 110 degrees. Not suitable for liquids containing mineral oils, hydrocarbons or chemicals aggressive toward lìEPDM.

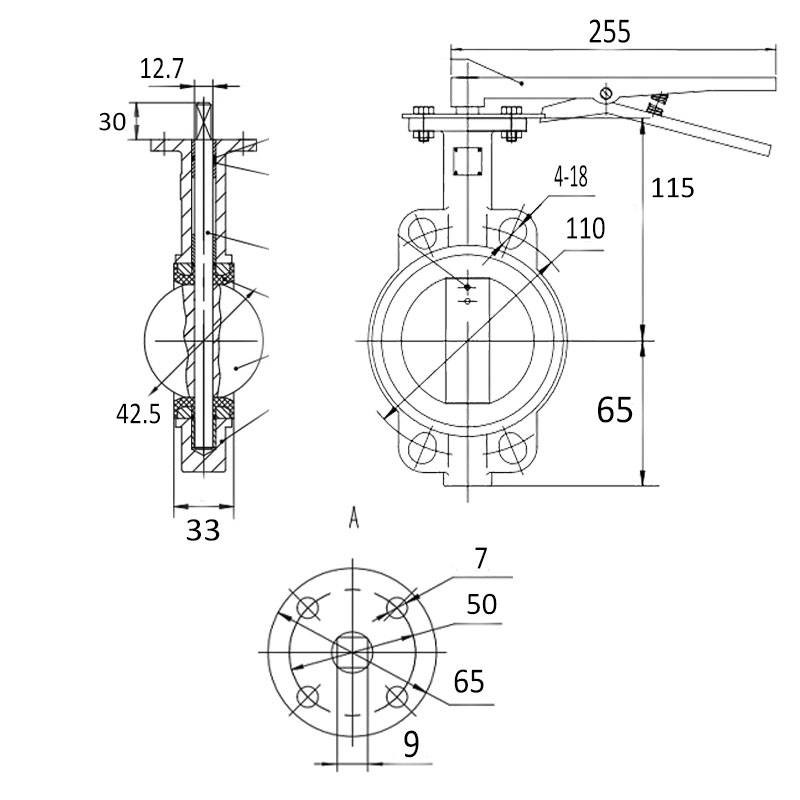

Technical Specifications Wafer BF Control Valve
| Type | Butterfly valve with Wafer body |
|---|---|
| Nominal diameter | DN 40 mm (1 1/2 in.) |
| Working pressure | PN16 |
| Operating temperature | -10°C to +110°C |
| Seal | EPDM |
| Body | Spheroidal cast iron |
| Standards | EN 593, EN 1074-1/2, EN 558 |
| Compatible flanges | EN 1092-2 |
| Upper flange for actuators | ISO 5211 |
| Coating | Blue epoxy powder |
There are no reviews
Data sheet
- Diameter: 40mm
- Type: Butterfly valves
- Connections: 1-1/2 inches
- Material: Cast iron
