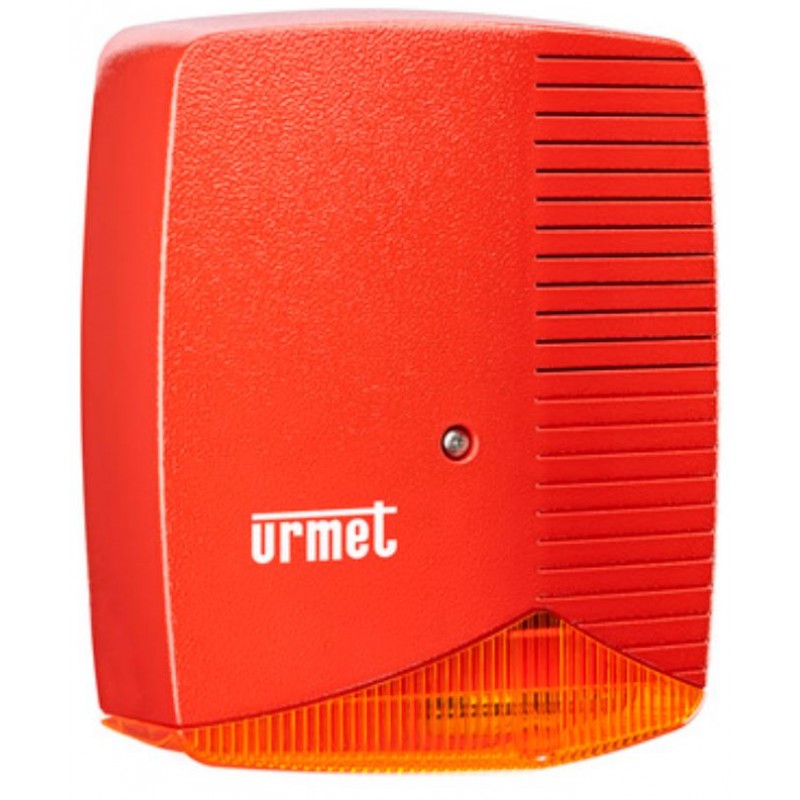

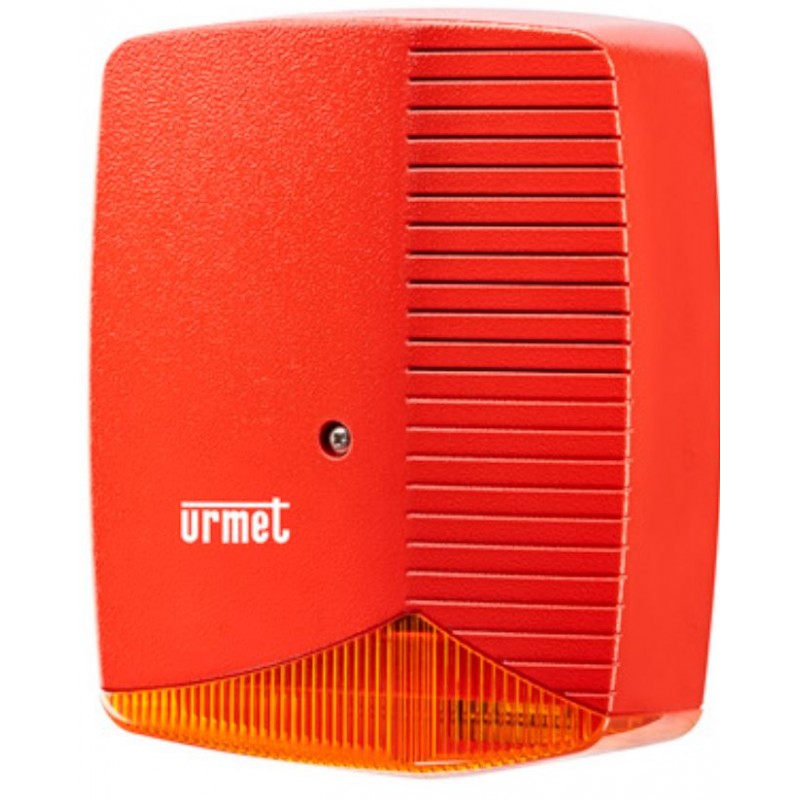

Urmet outdoor fire siren with flashing light EN54-3 1043/259
UTD 1043/259
8021156069231
Urmet fire siren for outdoor use with flashing light. It is a device of optical and sound signaling of fire alarm.
The device is for outdoor use, has 4 selectable sound modes and the light part uses high efficiency LEDs. It has a new design (ABS base and metal cover) and does not require an auxiliary battery.
It is certified EN54 part 3, and is compatible with all fire detection panels.
€121.98
Items Available: 17
: 3
1043/259 is an acoustic and optical fire alarmdevice in compliance with EU Construction Products Regulation 305/2011 (CPR) and approved according to EN 54-3. The device (siren) for outdoor use, has 4 acoustic modes of sound; the selection of the desired one is made through micro-switches.
The siren also has a flashing light that is activated jointly with the sound signal.
Characteristics:
- Power supply: 24Vdc (21 ÷ 29 Vdc)
- Max absorption: 300 mA @ 24Vcc
- Acoustic mode selection by DIP-Switch: continuous, intermittent, alternating (bitonal), sweep (ramp)
- Optical section flashing: 0,5 s
- Operating temperature: -25°C ÷ +70°C
- Environmental class: type B outdoor use
- Degree of protection: IP33C
- Weight: 1500 grams
- Dimensions (W x H x D): 203 x 253 x 87 mm
- Certification EN54-3. DoP No. 0051-CPR-2253
There are no reviews
Data sheet
- Type: Sirens
