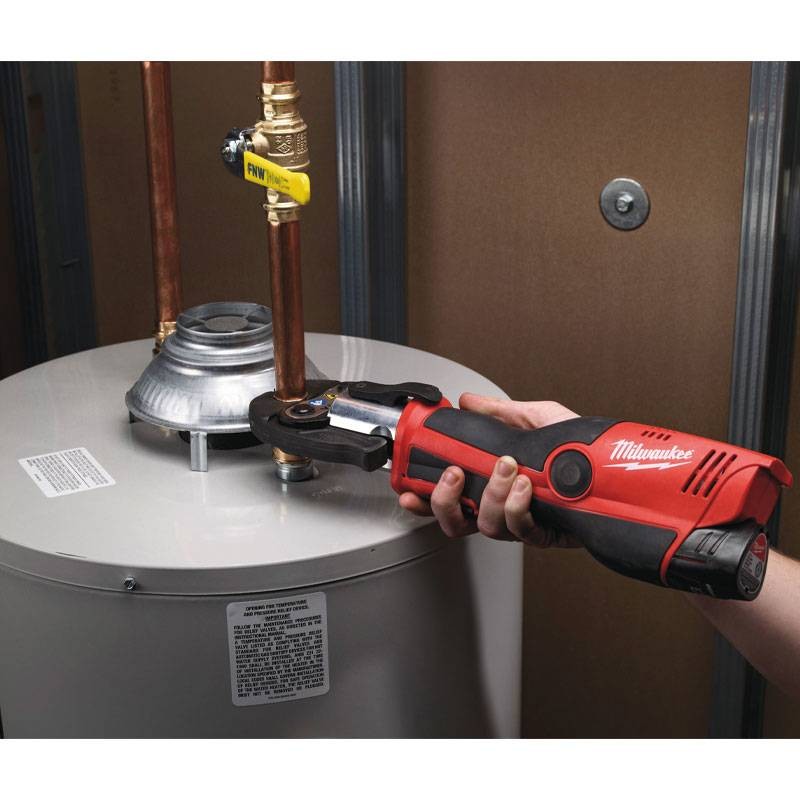

Milwaukee Force Logic M12 Hydraulic Press Tool Kit 4933443105
COP 4933443105
4002395003068

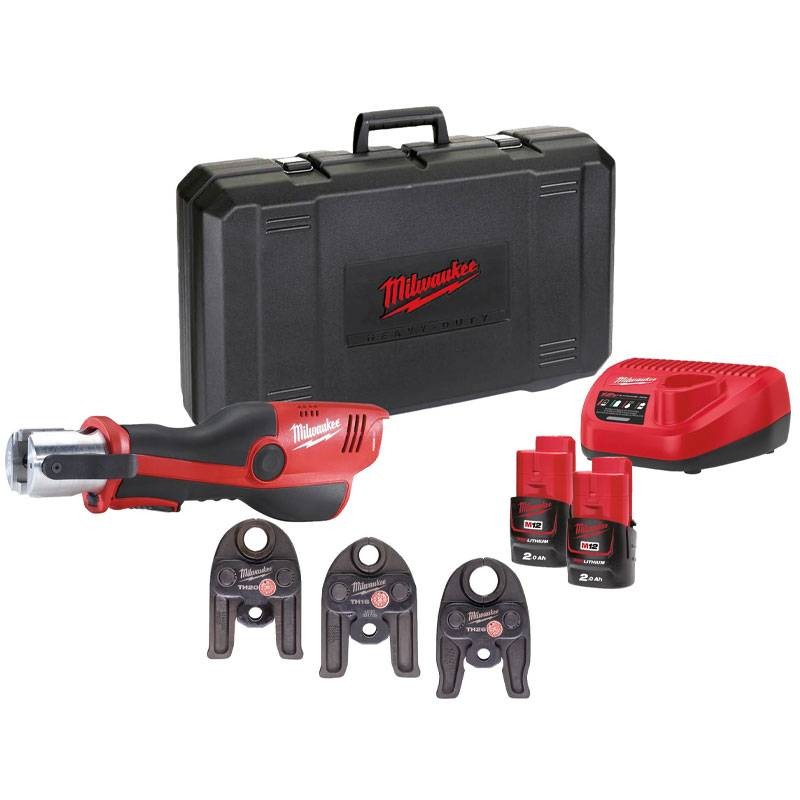

Milwaukee Force Logic M12 Hydraulic Press Tool Kit model M12 HPT-202C TH-SET consisting of:
- 1 Brushless Pressing Machine Force Logic M12
- 2 Batteries M18 2.0 AH
- 1 Charger M12-12 C
- 1 pressing Jaw J12 TH16
- 1 pressing Jaw J12 TH20
- 1 pressing Jaw J12 TH26
- 1 Case
€1,727.19
Items Available: 12
: 1
Specifications of the components in the Kit:
Advantages:
- The lightest and most compact pressing machine on the market: only 1.8 kg in weight for added comfort

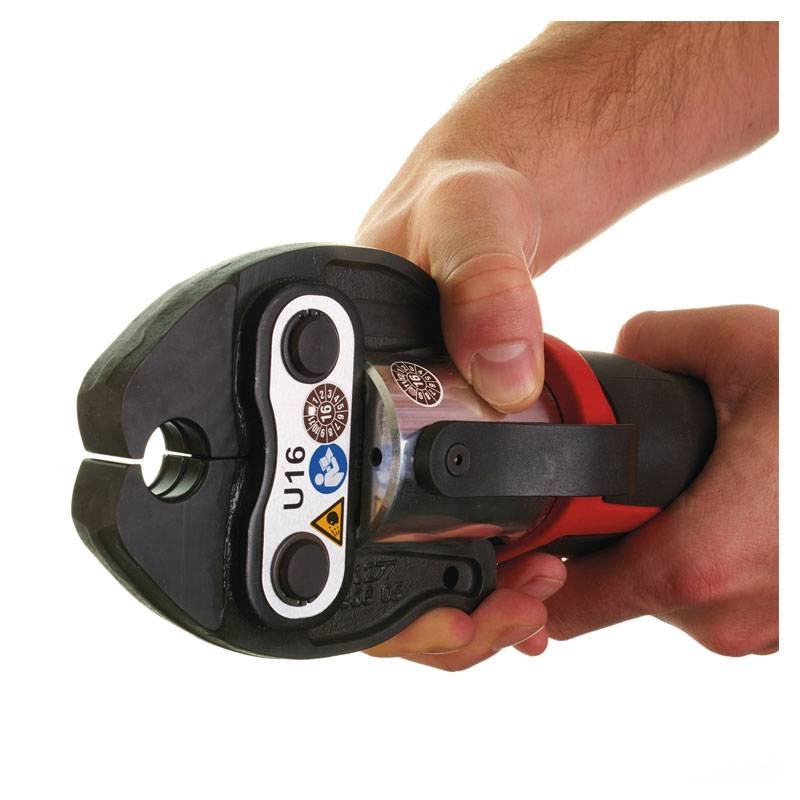

- Patented one-handed usable jaw
- Provides visual confirmation of a quality connection
- Excellent pressing range, up to 35 mm in metal and 40 mm in composite tubes
- The tool does a battery charge check before starting to press, and if the charge is insufficient, it does not start pressing so as not to leave the job unfinished
- Maintenance intervals: advanced electronics count cycles and notifies users when the tool reaches calibration intervals

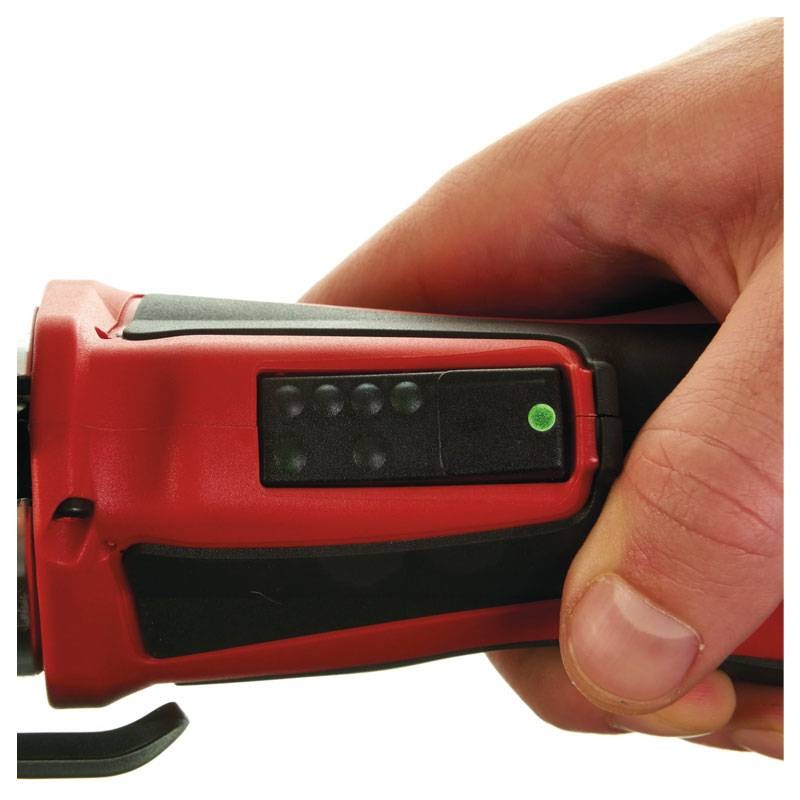

- 4-step battery status indicator
- Service: up to 40,000 pressing cycles before maintenance. Tool continues to operate beyond 40,000 cycles
- REDLINK overload protection electronics in the tool and battery pack ensure longer system life
- Monitoring of individual battery cells for even battery pack consumption and longer battery life
- Battery charge status indicator
- REDLITHIUM battery pack offers superior battery pack construction, electronics and consistent performance to provide more autonomy and more work over the life of the battery pack
- 12V platform: works with all MILWAUKEE® M12 batteries
Features:
- 2.0 Ah battery capacity
- C12 C charger included
- 2 Batteries included
- Battery type Li-iom
- Voltage 12V
- Pressing cycles 40000
- Pressing brand compatibility ALB, Comap, Frankishe, Henco, IPA, Sanha: Nirosan, Tiemme
- Tube diameter 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 26 mm, 28 mm, 32 mm, 35 mm
- Standard equipment set with 3 TH jaws (16/20/26mm)
- Pressing force 19 Kn
- Kit includes: 2 x M12 B2 Battery Pack, C12 C Charger, Case
- Max capacity on metal 35mm
- Max capacity on plastic 40mm
- Weight with battery pack 1.8 kg
- Vibration uncertainty 1.5 M/S2
- Vibration level <2.5 M/S2
- Sound power level 3 Dba
- Sound pressure level 3 Dba

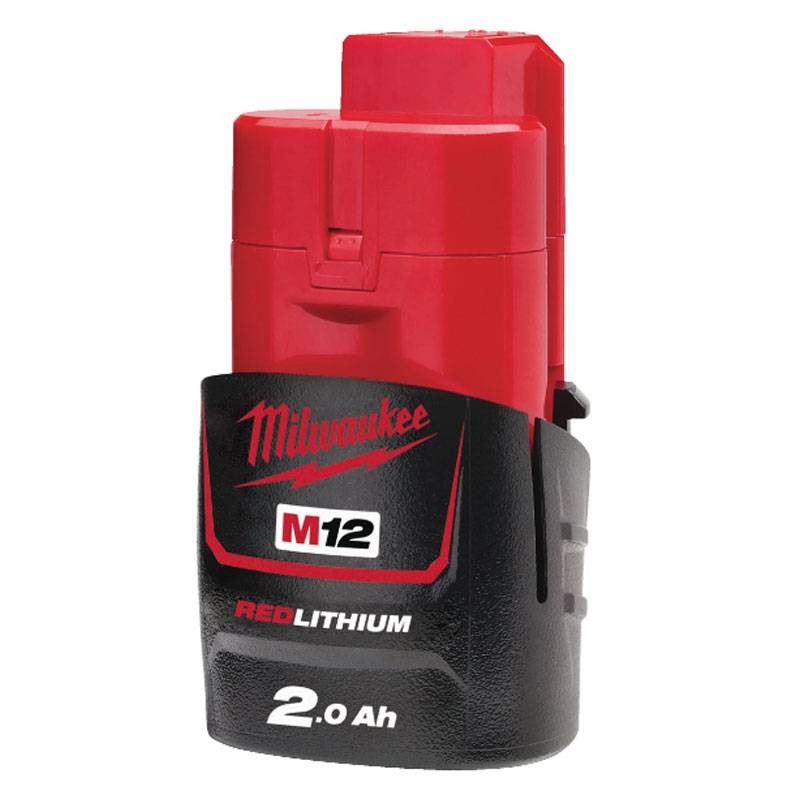

M12 2.0AH batteries:
- Sophisticated electronics: MilwaukeeREDLINK" Intelligence.
- Overload protection - Prevents tool breakage under severe conditions
- Temperature control - Keeps the battery in an optimal temperature range
- Individual cell control to optimize cell discharge and increase battery life
- Protection against excessive battery discharge
- Up to 2 times longer battery life, up to 20% more power than previous Milwaukee battery technology. Results depend on voltage, tool and application
- Cell welding integrated to the frame
- Separator between cells
- Protective rubberizing against shock and vibration

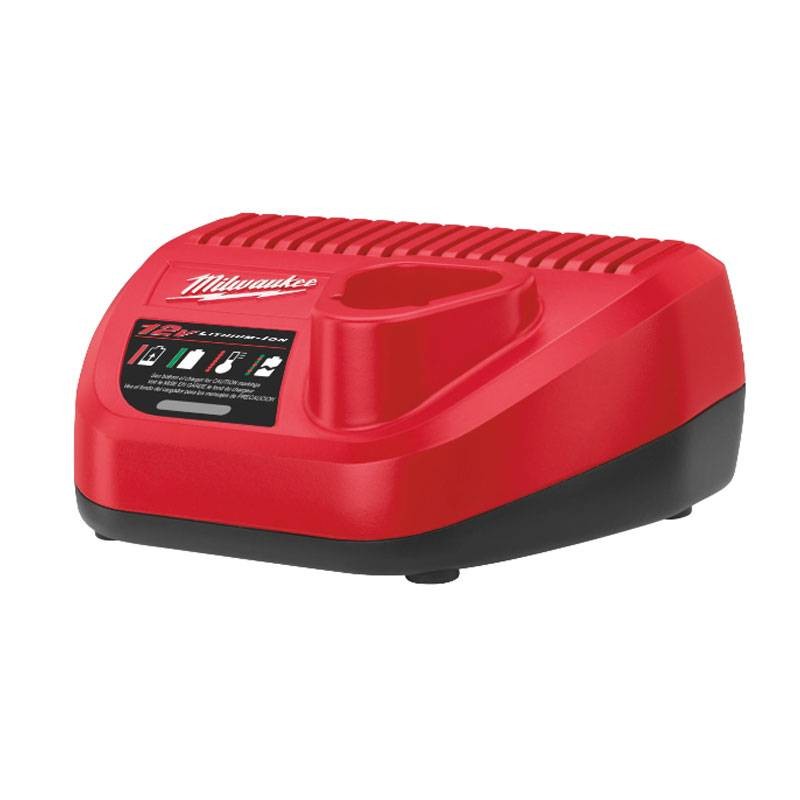

M12 battery charger:
- Temperature control to ensure risk-free charging under all conditions
- Electronic circuits protected from dust and possible shocks
- Charging indications: LED light to indicate battery charging status
- Charges 3.0 Ah / 4.0 Ah REDLITHIUM batteries in 60 min / 80 min
- Charging 1.5 Ah / 2.0 Ah REDLITHIUM batteries in 30 min / 40 min
- Battery capacity 2.0, 3.0, 4.0, 6.0 Ah
- Wall mountable
- For Lithium batteries
- Charging port 1xM12
- Charging times 40/70/80/130 min
- Charging speed 3

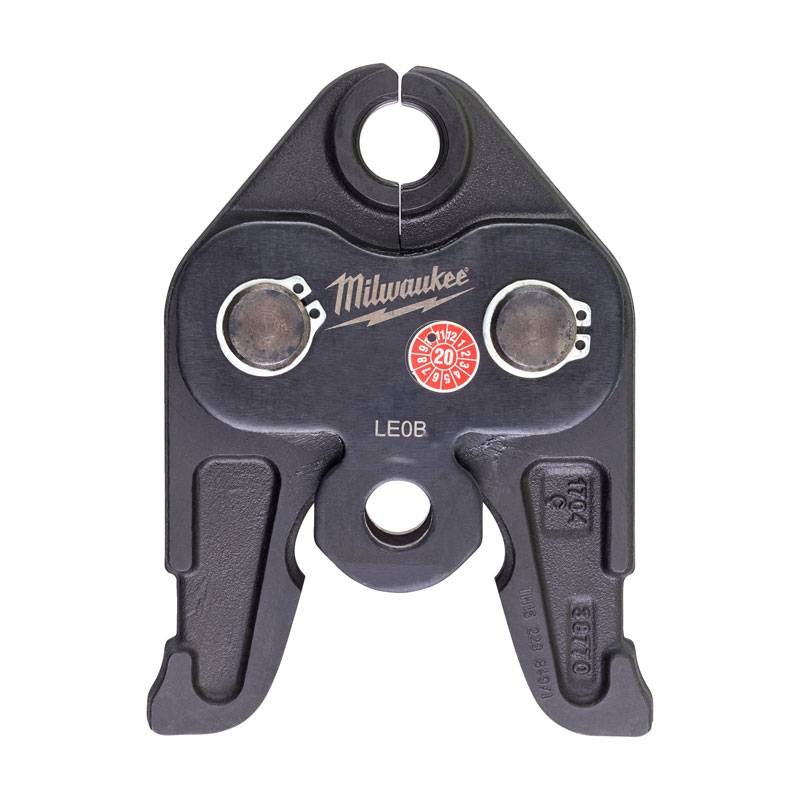

J12 pressing jaws:
- FORCE LOGIC's M12 and M18 pressing jaws are designed to meet the highest standards of quality and durability. With the ability to open easily with one thumb, these jaws are the most convenient and practical pressing solution for diameters up to 108 mm.
There are no reviews
Data sheet
- Type: Press Tools
