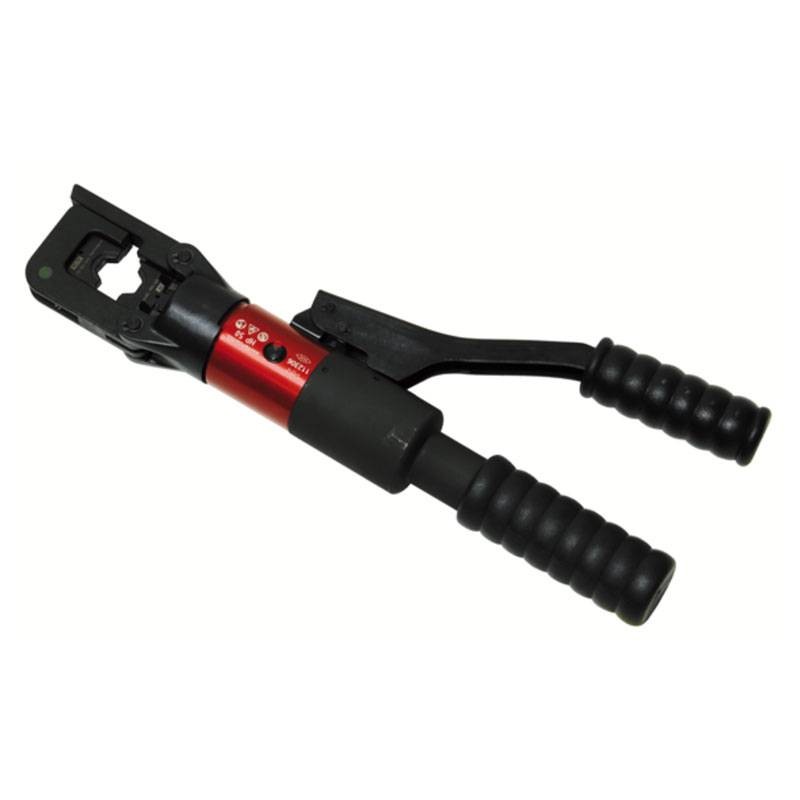

Intercable 50kN manual hydraulic press tool with dies HP50S
INR HP50S
8014212038173
Intercable Manual hydraulic compression press 50kN with 8 dies with the following features:
- Compressive force: 50 kN
- Maximum stroke: 16 mm
- Minimum cross-section: 6 mm²
- Maximum cross-section: 240 mm²
- Dimensions: 157x398x54 mm
Suitable for compressing cable lugs, terminals, connectors and splices up to a maximum conductor cross-section of 240 mm².
Kit equipment:

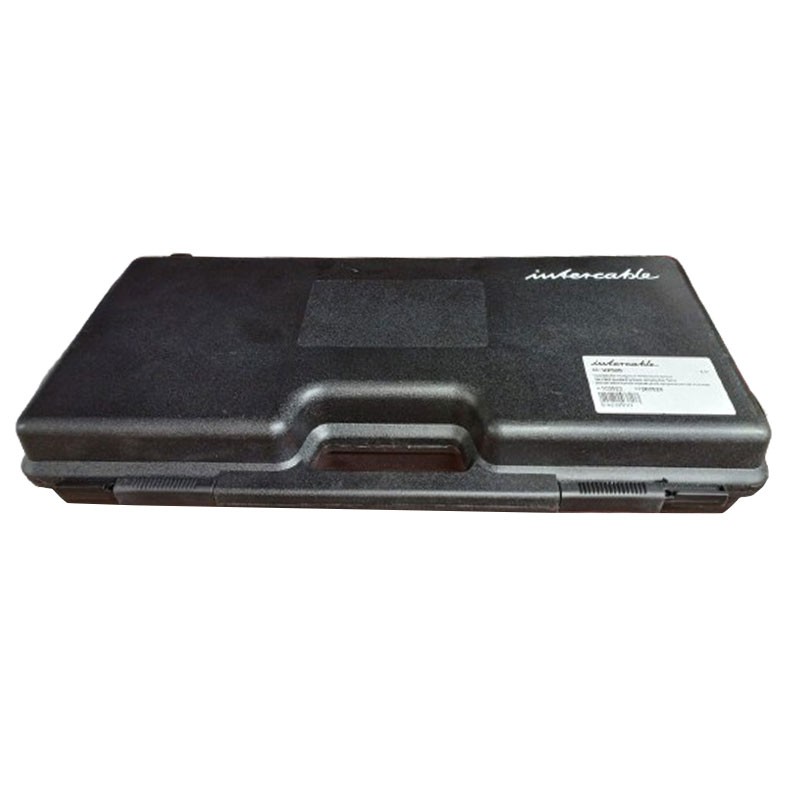

- Hard resin case
- Crimping dies included: U5-K10M, U5-K11M, U5-K13M, U5-K14, U5-K17M, U5-K18, U5-K20D, U5-K22D
- Dies included 25 - 185 mm2
€911.27
Items Available: 2
Features:
- Lightweight and compact construction, manoeuvrable and small in size
- Compression head rotatable by 180 degrees, ensures use even in confined spaces
- Two-speed double piston
- Safety valve which intervenes when maximum pressure is reached
- Manual return to any position by turning the main handle
- Operating range: 6 - 240 mm²
- Compressive force: 50 kN
- Maximum stroke: 16 mm
- Dimensions: 400 x 160 x 55 mm
- Automatic two-speed device (fast under no load and slow under load)
There are no reviews
Data sheet
- Type: Press Tools
