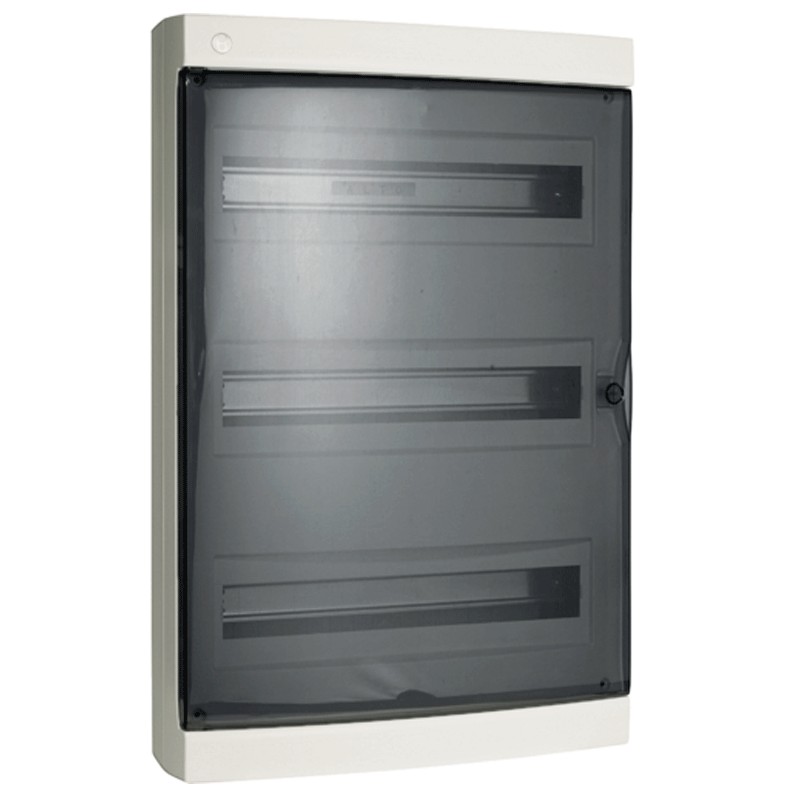

Wall mounted switchboard Bocchiotti PABLO 54 modules smoked door B04090
IBO B04090
8015892040906
Wall-mounted switchboard with door Bocchiotti PABLO line, with the following characteristics
- 54 modules (on three rows)
- Protection degree IP40
- Nominal current In 125A
€114.49
Items Available: 53
: 27
Features:
- Bocchiotti series line PABLO
- 54 modules (on three rows)
- Protection degree IP40
- Nominal current In 125A
- Protruding fixing type
- Type of door closure without locking
- Blind door cover type
- Without lock
- Switchboard colour cream white RAL 9001
- Colour smoked door
- Plastic material
- Impact resistance grade 09
- Enclosure protection degree IP40
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free
- Ultraviolet resistant
- Operating temperature -25 +60 °C
- Depth 137 mm
- Internal depth 48 mm
- Height 625 mm
- Width 408 mm
Data sheet
- Type: Front panels
- Modules: 54
- Degree of protection: IP40
- Model: With door
Wall
