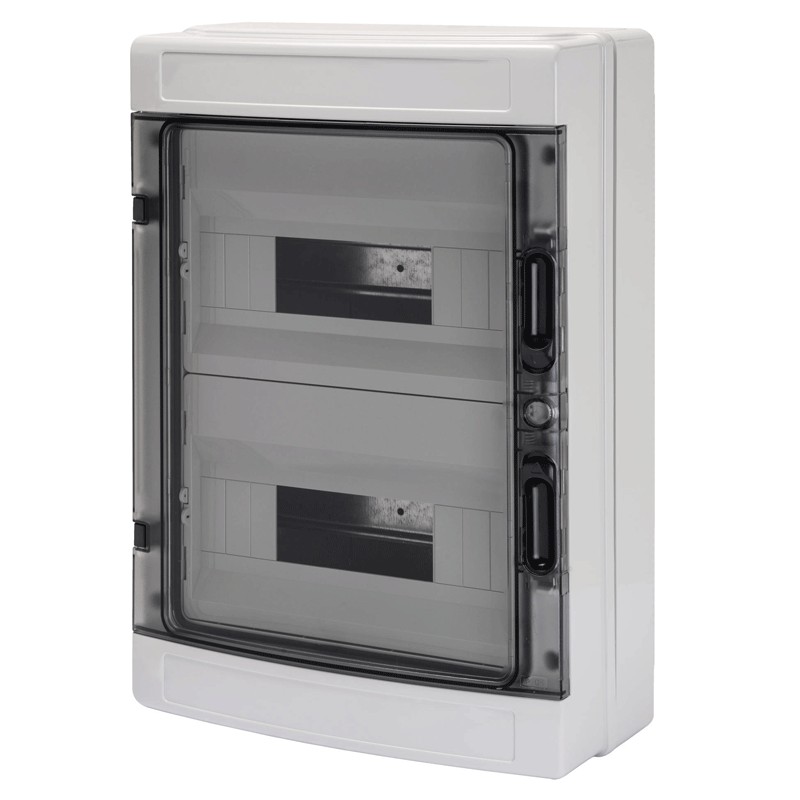

Switchboard Gewiss with smoked windowed panels 24 (12x2) modules GW40104
GEW GW40104
8011564062207
Gewiss destruction panel, with the following characteristics:
- 24 modules (on two rows)
- Degree of protection IP65
€63.92
Items Available: 306
: 77
Features:
- Gewiss Series
- Rated voltage 400V
- Rated current 125A
- Power dissipation 32W
- Glow wire resistance 650 °C
- 24 modules (on two rows)
- With windowed panels and removable frame
- Degree of protection IP65
- Frame colour grey RAL 7035
- Colour of transparent smoked door
- Prepared for housing terminal blocks
- Insulation class II (according to IEC 61140)
- Type Material Halogen free according to EN 60754-2 standard
- Impact resistance IK09
- External dimensions BxHxD 298x420x140 mm
- Thermopressure with ball 70 °C
- Operating temperature -25 +60 °C
Tres Bon produit, qualité recommandée par les électriciens.
materiale professionale con prezzi molto competitivi
Data sheet
- Type: Front panels
- Modules: 24
- Degree of protection: IP65
- Model: With door
Wall
