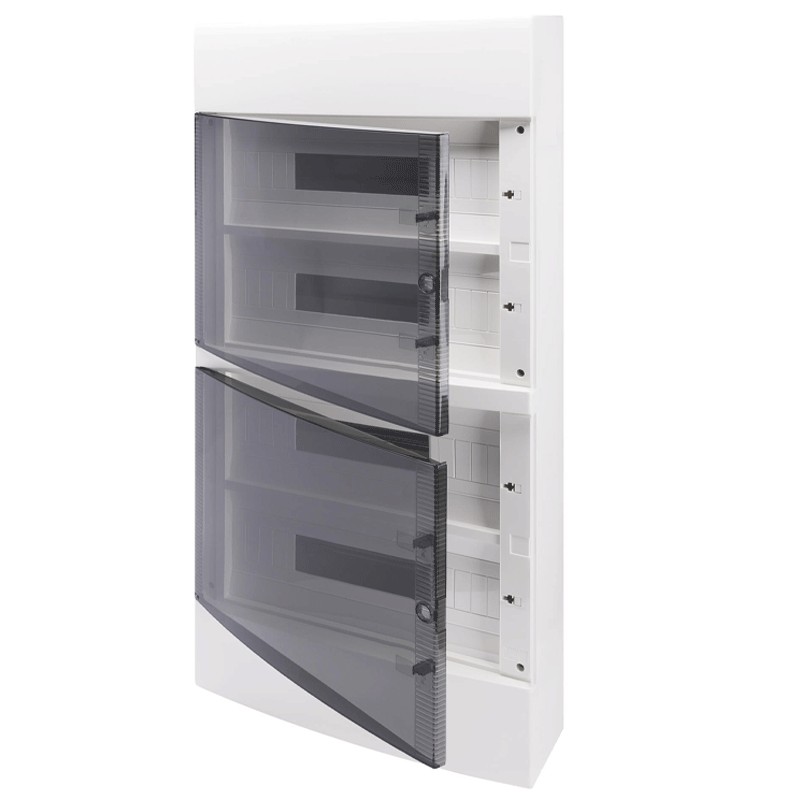

Switchboard Gewiss 72 modules (18X4) smoked glass IP40 GW40053
GEW GW40053
8011564033399
Gewiss furniture switchboard, with the following features:
- 72 modules (on four rows)
- IP40 degree of protection
€273.61
Items Available: 36
: 3
Features:
- Gewiss Series
- Isolation voltage 750V
- Rated voltage 400V
- Rated current 125A
- Power dissipation 75W
- Glow wire resistance 650 °C
- 72 modules (on four rows)
- IP40 degree of protection
- Switchboard with smooth walls
- Switchboard colour white RAL 9016
- Colour of door smoked glass
- Prepared for terminal block housing
- Insulation class II (according to IEC 61140)
- Type Material Halogen free according to EN 60754-2
- Impact resistance IK08
- External dimensions BxHxD 400x850x150 mm
- Thermopressure with ball 70 °C
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Front panels
- Modules: 72
- Degree of protection: IP40
- Model: With door
Wall
