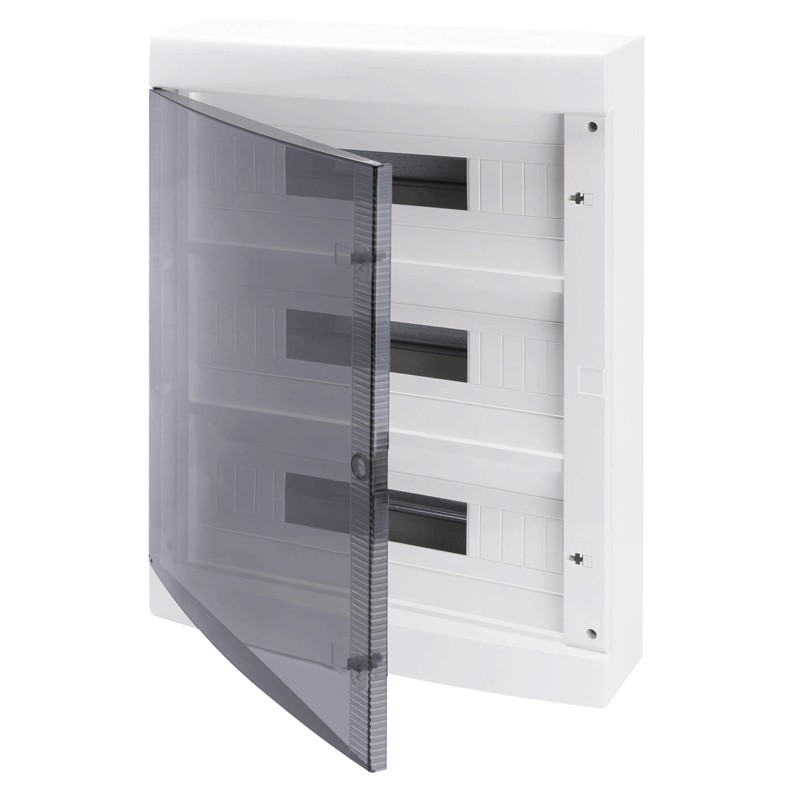

Switchboard Gewiss 52 modules (18X3) smoked glass IP40 GW40051

Gewiss
GEW GW40051 8011564033375

Gewiss furniture switchboard, with the following features:

  • 52 modules (on three rows)
  • IP40 degree of protection
Do you have questions about this product or did you not find what you were looking for? Ask us!
Switchboard Gewiss 52 modules (18X3) smoked glass IP40 GW40051
€157.23
€157.23

€157.23
Tax included
Calculate shipping cost

€157.23

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days

Features:

  • Gewiss Series
  • Isolation voltage 750V
  • Rated voltage 400V
  • Rated current 125A
  • Power dissipation 63W
  • Glow wire resistance 650 °C
  • 52 modules (on three rows)
  • Degree of protection IP40
  • Switchboard with smooth walls
  • Switchboard colour white RAL 9016
  • Colour of door smoked glass
  • Prepared for terminal block housing
  • Insulation class II (according to IEC 61140)
  • Type Material Halogen free according to EN 60754-2
  • Impact resistance IK08
  • External dimensions BxHxD 400x550x130 mm
  • Thermopressure with ball 70 °C
  • Operating temperature -25 +60 °C

Data sheet

Type:
Front panels
Wall
Modules:
52
Degree of protection:
IP40
Model:
With door
