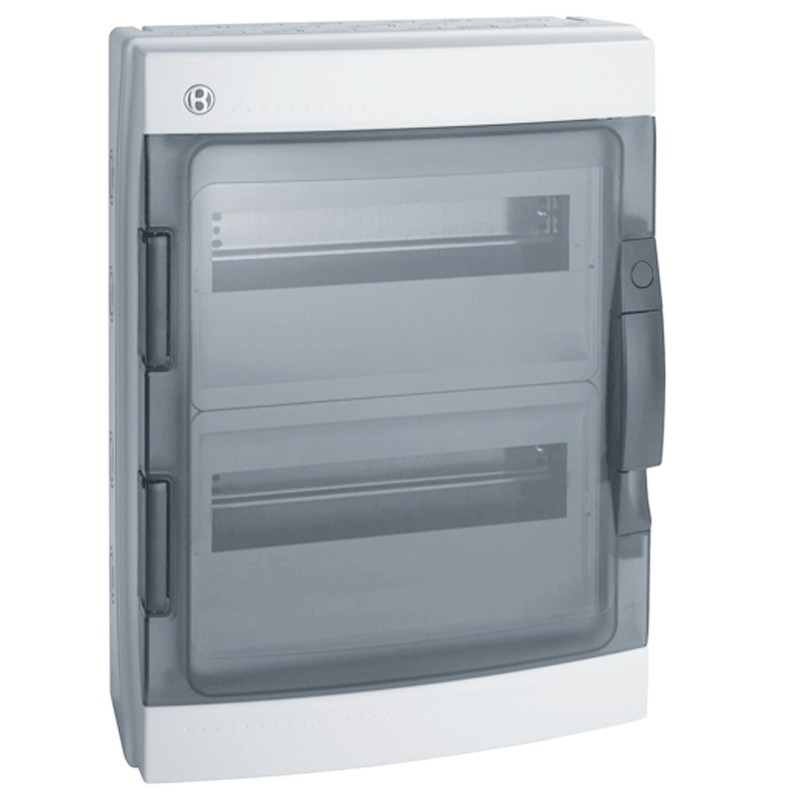

Switchboard Bocchiotti PABLO 24 modules with smoked door IP65 B06525
IBO B06525
8015892065251
Bocchiotti switchboard PABLO line, with the following features:
- 24 modules (on two rows)
- Nominal current In 125A
- Protection degree IP65
€67.55
Items Available: 111
: 23
Features:
- Series Bocchiotti line PABLO
- 24 modules (on two rows)
- Impact resistance degree 09
- Degree of protection IP65
- Nominal current In 125A
- Protruding fixing mode
- Type of door closure without locking
- Blind door cover type
- Without lock
- Switchboard colour light grey RAL 7035
- Colour smoked door
- Material plastic
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free
- Ultraviolet resistant
- Operating temperature -25 +60 °C
- Depth 143 mm
- Inside depth 143 mm
- Height 420 mm
- Width 314 mm
Data sheet
- Type: Front panels
- Modules: 24
- Degree of protection: IP65
- Model: With door
Wall
