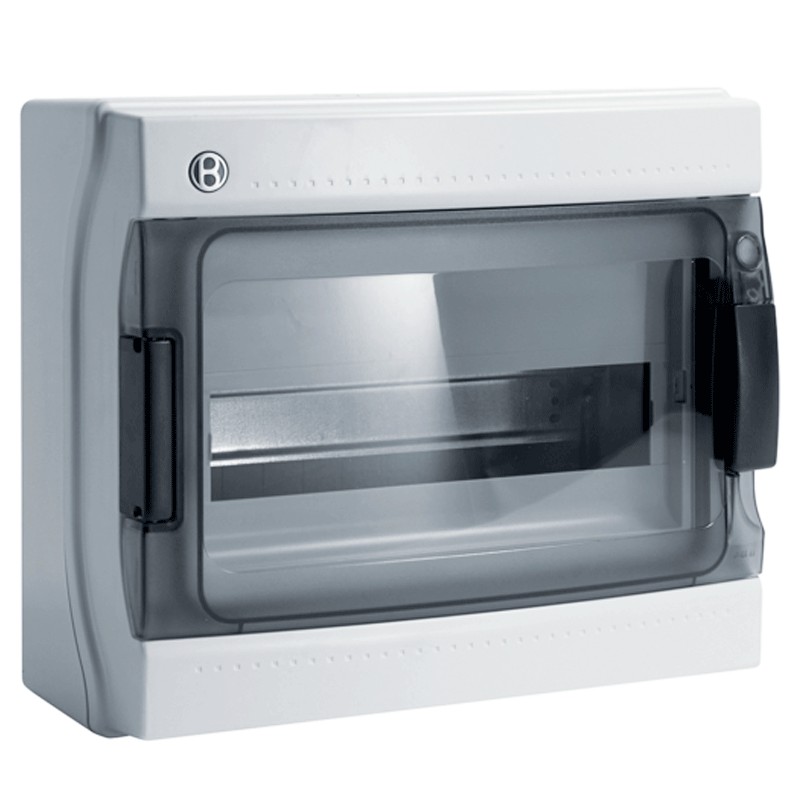

Switchboard Bocchiotti PABLO 12 modules with smoked door IP65 B06523
IBO B06523
8015892065237
Bocchiotti switchboard PABLO line, with the following features:
- 12 modules
- Nominal current In 125A
- Protection degree IP65
€43.03
Items Available: 393
: 194
Features:
- Series Bocchiotti line PABLO
- 12 modules
- Impact resistance degree 09
- Degree of protection IP65
- Nominal current In 125A
- Protruding fixing type
- Non-locking type of door closure
- Blind door cover type
- Without lock
- Switchboard colour grey RAL 7035
- Colour smoked door
- Plastic material
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free
- Ultraviolet resistant
- Operating temperature -25 +60 °C
- Depth 143 mm
- Inside depth 143 mm
- Height 263 mm
- Width 314 mm
Avevo bisogno di una centralina elettrica identica a quella già installata a casa. Sostituita con facilità
Data sheet
- Type: Front panels
- Modules: 12
- Degree of protection: IP65
- Model: With door
Wall
