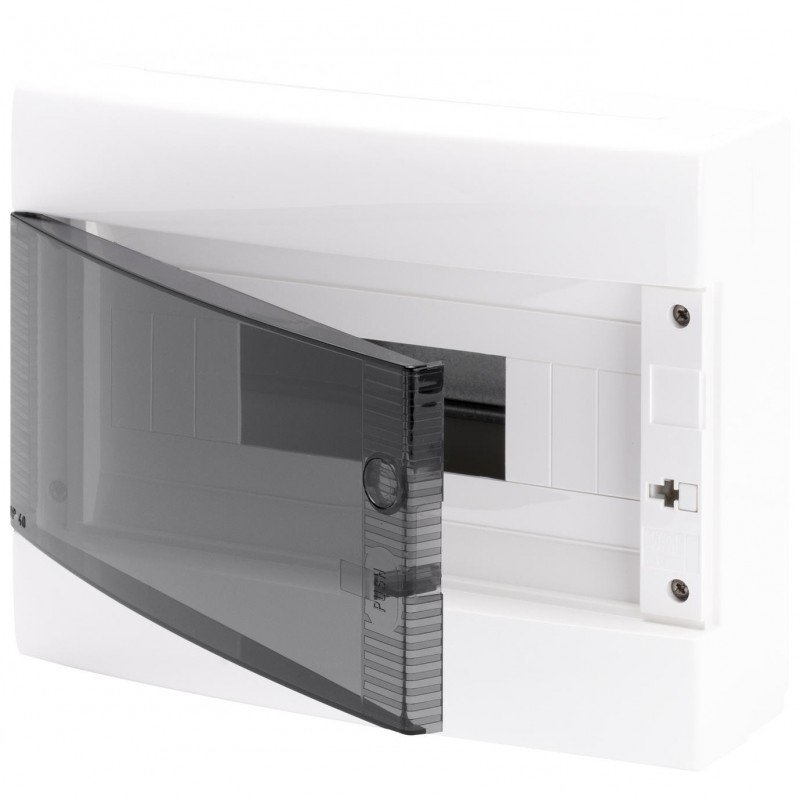

Gewiss wall-mounted switchboard 8M IP40 GW40043

Gewiss
GEW GW40043 8011564033290

Switchboard for furnishing with smooth wall Gewiss, with the following features:

  • Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
  • 8 modules
  • Degree of protection IP40 (protection against solid bodies 1mm)
Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss wall-mounted switchboard 8M IP40 GW40043
€18.38
€18.38

€18.38
Tax included
Calculate shipping cost

€18.38

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Features:

  • Gewiss series
  • Wall installation with DIN bar (universal connection that allows you to hook any switch with DIN connection even of different brand)
  • 8 modules
  • Degree of protection IP40 (protection against solid bodies 1mm)
  • Insulation class II (according to IEC 61140)
  • Door colour Transparent smoke
  • Operating temperature -25 +60 °C
  • Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
  • Colour white RAL 7035
  • Power dissipation 15W
  • Rated voltage 400V
  • Rated insulation voltage 750V
  • Rated current 125A
  • Glow wire resistance 650 °C
  • Type Material: Halogen free according to EN 60754-2 standard
  • External dimensions BxHxP (mm) 200x180x100
  • Shock resistance IK08
  • Thermopressure with ball 70 °C

Data sheet

Type:
Front panels
Wall
Modules:
8
Degree of protection:
IP40
Model:
With door
