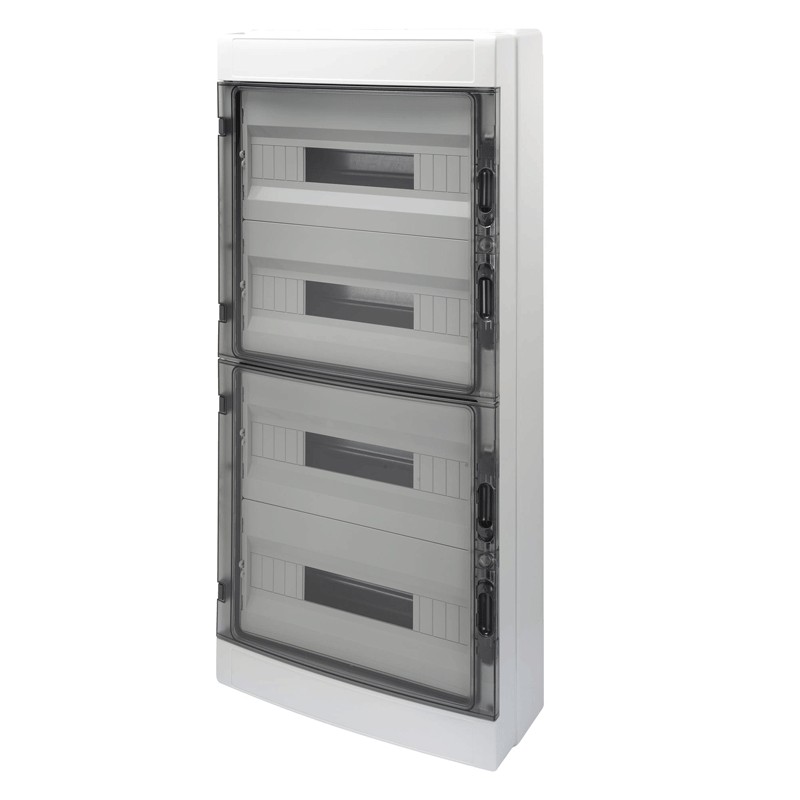

Gewiss external switchboard IP65 72 (18x4) smoked door IP65 GW40109
GEW GW40109
8011564062269
Gewiss destruction panel, with the following characteristics:
- 72 modules (on four rows)
- IP65 degree of protection
€225.73
Items Available: 77
: 25
Features:
- Gewiss Series
- Rated voltage 400V
- Rated current 125A
- Power dissipation 89W
- Glow wire resistance 650 °C
- 72 modules (on four rows)
- With windowed panels and removable frame
- Degree of protection IP65
- Frame colour grey RAL 7035
- Colour of transparent smoked door
- Prepared for housing terminal blocks
- Insulation class II (according to IEC 61140)
- Type Material Halogen free according to EN 60754-2 standard
- Impact resistance IK09
- External dimensions BxHxD 410x878x160 mm
- Thermopressure with ball 70 °C
- Operating temperature -25 +60 °
Data sheet
- Type: Front panels
- Modules: 72
- Degree of protection: IP65
- Model: With door
Wall
